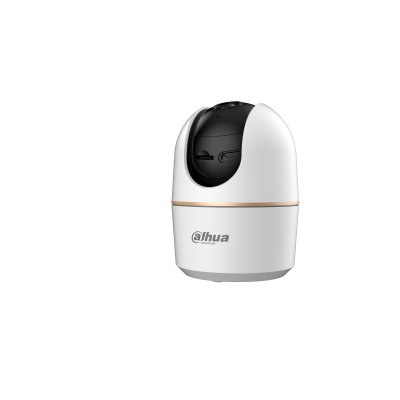

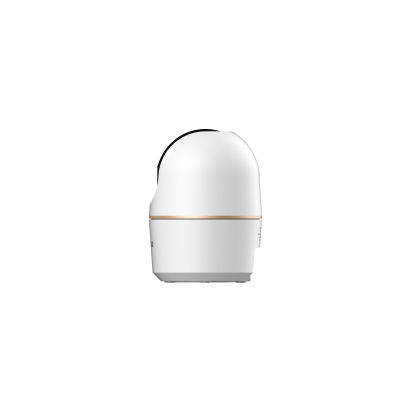

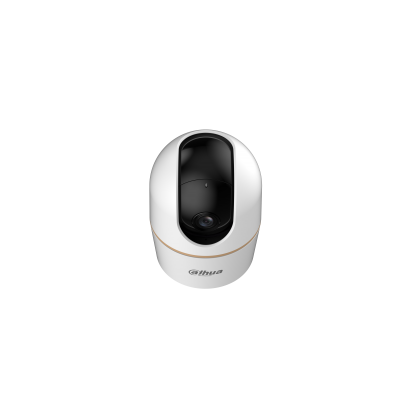

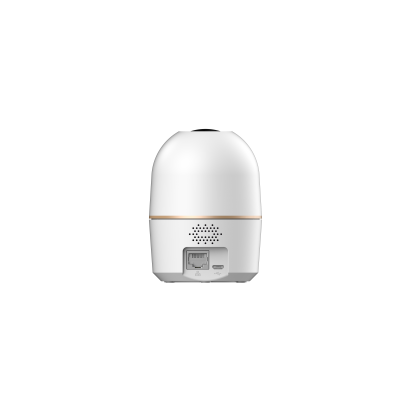

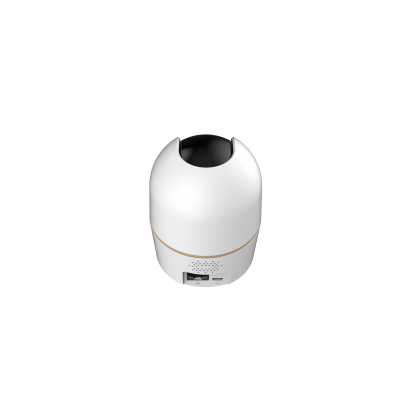

DH-IPC-H2AP (2MP+10m IR+WIFI)


2MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera

> 2-MP 1/3.2″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2 MP (1920 × 1080)@25 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. IR illumination distance is 10 m.

> Supports max. 256 G Micro SD card; built-in Mic; built-in speaker.

> 5 VDC power supply.

> Supports Wi-Fi.

> Supports motion detection, human detection.

Click to Datasheet of H2A

Rs.8,000.00 Rs.12,460.00

Camera
Matrix 1/3.2″ CMOS
Effective Pixels 1920×1080
Electronic shutter speed Auto / Manual 1 / 3 sec – 1 / 100,000 sec
Lighting distance Up to 10 m (32.81 ft)
Lighting control On/Off Auto
Number of illuminators 1 (IR LED)
Setting the angle Pan:0° to 355°
Tilt:-5° to +80°
Lens
Max aperture 3.6mm:F2.0
Viewing angle Horizontal:79°; Vertical:43°; Diagonal:94°
Video
Video compression H.265
Video frame rate Main Stream: 1920 × 1080 25 fps
Sub Stream: 640 × 480 25 fps
Permission 1080p (1920 × 1080); VGA (640×480)
Video bit rate H.265:80 kbps–4096 kbps
Day / Night Auto (IR) / Color / B/W
WDR DWDR
Motion detection Off / On (4 Zones, Rectangle)
Rotate frame 0° / 180°
Audio
Built-in microphone Eat
Built-in loudspeaker Eat
Audio compression G.711a
Anxiety
Disturbing developments No SD card; SD card full; SD card error; Network disconnected; Motion detection; Sound detection
Net
Network port RJ-45 (10/100 Base-T)
Wi-Fi IEEE 802.11b/g/n 2.4–2.4835 GHz, 2.4 G
Storage Micro SD card (Up to 256 GB)
Management software DMSS
Smartphones iOS;Android
Certificates
Certificates CE
Environment
Operating temperature –10 °C to +45 °C (+14 °F to +113 °F)
Working humidity ≤ 95%
Electrical properties
Power supply 5 VDC, 1A
Power consumption Base: 1.7 W;
Max. (Video stream reception + IR + PTZ rotation): 3.5 W
General information
Frame Plastic
Color White
Dimensions φ77.8mm×108.1mm(φ3.06″×4.26″)
Weight 204.2 g (0.45 lb)
SKU: DH-IPC-H2AP Category:
Weight 0.5 kg
Dimensions 20 × 15 × 10 cm
