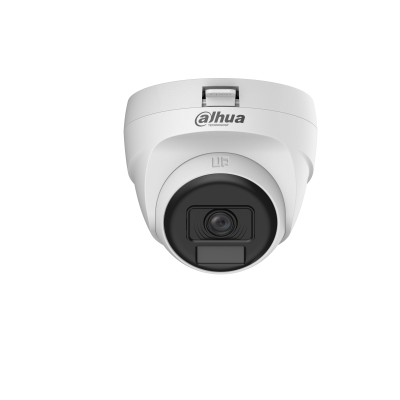

Dahua DH-HAC-T1A21-U-IL 2MP Smart Dual Light Eyeball CCTV Camera (2MP+Color+25m IR+Smart Dual Light+IP67)
Dahua DH-HAC-T1A21-U-IL 2MP Smart Dual Light Eyeball CCTV Camera (2MP+Color+25m IR+Smart Dual Light+IP67) - Image 2

Dahua DH-HAC-T1A21-U-IL 2MP Smart Dual Light Eyeball CCTV Camera (2MP+Color+25m IR+Smart Dual Light+IP67)

Dahua

2MP Smart Dual Light Eyeball CCTV camera with 25 m range, color night vision, and IP67 protection

2MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera

> Max. 30 fps@1080p.

> Smart Dual Light.

> 25 m illumination distance.

> Quick-to-install eyeball saves installation time.

> 2.8 mm fixed lens (3.6 mm optional).

> CVI/CVBS/AHD/TVI switchable.

Click to Datasheet of HAC-T1A21-U-IL

Rs.4,600.00 Rs.6,600.00

Overview, Performance & Features

The Dahua CCTV camera DH-HAC-T1A21-U-IL gives you 2MP high-definition video with Smart Dual Light technology for better night security. It captures bright color images day and night and automatically switches between infrared and warm white light when light levels change. As a result, you get clear and detailed videos at all times.

The camera has a 25-meter illumination range and comes with a 2.8 mm fixed lens (optional 3.6 mm) that covers wide areas. It also installs very quickly thanks to its compact eyeball design. Furthermore, this Dahua CCTV camera supports CVI, CVBS, AHD, and TVI signals, making it easy to use with existing recording systems such as Dahua NVRs in Sri Lanka. In addition, the IP67-rated housing keeps it safe from dust and rain, which makes it perfect for outdoor use in any Sri Lankan climate.

Technical Highlights

  • Resolution: 2MP (1080p) up to 30 fps

  • Illumination Range: Up to 25 m for bright night images

  • Smart Dual Light: Auto-switching between IR and white light

  • Lens Options: 2.8 mm fixed (optional 3.6 mm)

  • Design: Quick-mount eyeball body

  • Video Output: CVI/CVBS/AHD/TVI switchable

  • Durability: IP67 weather-resistant protection

  • Power Supply: 12 V DC

Why Choose This Model

The DH-HAC-T1A21-U-IL is a simple, strong, and affordable camera designed for reliable security. It gives bright color images even in low light and records clearly during rain or fog. Moreover, it fits both indoor and outdoor setups, which makes it a good choice for homes, offices, and hotels in Sri Lanka. Therefore, this Dahua CCTV camera is one of the most practical and long-lasting options available today.

SKU: DH-HAC-T1A21-U-IL Category:
Weight 0.5 kg
brands

Dahua
Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s;
NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.02 lux@F2.0 (Color, 30 IRE);
0.002 lux@F2.0 (B/W, 30 IRE);
0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 25 m (82.02 ft);
Warm light: 20 m (65.62 ft)
Illuminator On/Off Control Auto;Manual
Illuminator Number 2 (Warm light);2 (IR light)
Angle Adjustment Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F2.0
Field of View 2.8 mm: H: 100°; V: 54°; D: 117°
3.6 mm: H: 80°; V: 43°; D: 94°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 44.7 m
(146.65 ft)		 17.9 m
(58.73 ft)		 8.9 m
(29.20 ft)		 4.5 m
(14.76 ft)
3.6 mm 55.0 m
(180.45 ft)		 22.0 m
(72.18 ft)		 11.0 m
(36.09 ft)		 5.5 m
(18.04 ft)
Video
Video Frame Rate CVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; DWDR
WDR DWDR
White Balance Auto;Area white balance
Gain Control Auto;Manual
Noise Reduction 2D NR
Illumination Mode Smart IR&WL; WL Mode; IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12 VDC ± 30%
Power Consumption Max 2.1 W (12 VDC, LED on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Anti-corrosion Level Basic Protection
Structure
Casing Material Plastic
Product Dimensions Φ85.0 mm × 77.1 mm (Φ3.35″ × 3.04″)
Net Weight 0.11 kg (0.24 lb)
Gross Weight 0.12 kg (0.26 lb)
Installation Wall mount; ceiling mount
