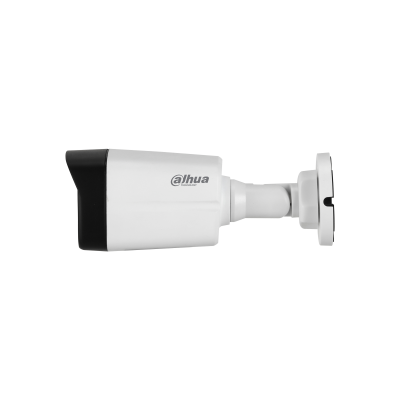

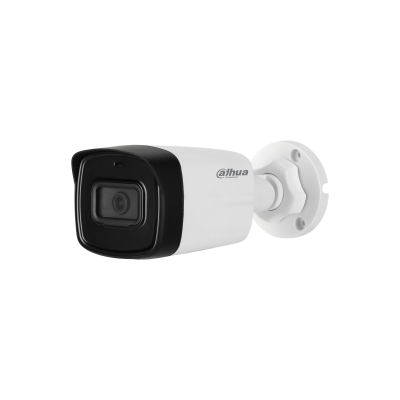

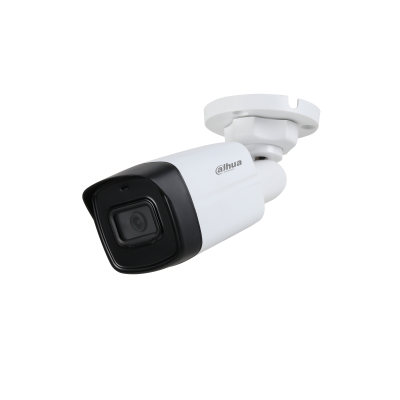

Dahua DH-HAC-HFW1500TL-A 5MP Bullet CCTV Camera (5MP+80m IR+Audio+Smart IR+HDCVI+IP67)
Dahua DH-HAC-HFW1500TL-A 5MP Bullet CCTV Camera (5MP+80m IR+Audio+Smart IR+HDCVI+IP67) - Image 2
Dahua DH-HAC-HFW1500TL-A 5MP Bullet CCTV Camera (5MP+80m IR+Audio+Smart IR+HDCVI+IP67) - Image 3

Dahua DH-HAC-HFW1500TL-A 5MP Bullet CCTV Camera (5MP+80m IR+Audio+Smart IR+HDCVI+IP67)

Dahua

5MP Dahua Bullet CCTV Camera with Smart IR up to 80 m, built-in microphone, and IP67 outdoor protection

* The parameters and datasheets below can only be applied to 1500-S2 series.

* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

> Max 25fps@5MP (16:9 video output)

> CVI/CVBS/AHD/TVI switchable

> 3.6 mm fixed lens (2.8 mm, 6 mm, 8 mm optional)

> Built-in mic

> Max. IR length 80m, Smart IR

> IP67, DC12V

Click to Datasheet of HAC-HFW1500TL-A

Rs.13,000.00 Rs.16,200.00

Overview, Performance & Features – Dahua CCTV Camera in Sri Lanka

The Dahua DH-HAC-HFW1500TL-A 5MP Bullet CCTV Camera is a professional-grade Dahua CCTV camera in Sri Lanka, delivering sharp 5-megapixel video and long-range night vision for superior protection. It captures 5MP full HD footage at 25 fps (16:9 format) for crystal-clear detail and accurate color reproduction. Additionally, this model features HDCVI technology, which supports seamless real-time transmission over long distances with minimal signal loss. Furthermore, it is compatible with CVI, CVBS, AHD, and TVI video formats, offering broad compatibility with multiple DVR systems. The 3.6 mm fixed lens (with 2.8 mm, 6 mm, and 8 mm options) provides flexible coverage for different installation environments. Its built-in microphone enables synchronized audio capture, improving scene awareness and recording efficiency. Moreover, the advanced Smart IR illumination ensures balanced brightness and reduces overexposure, achieving clear visibility up to 80 meters even in total darkness. Built to perform under Sri Lanka’s diverse weather conditions, the IP67-rated housing protects against dust and heavy rain, ensuring stable operation outdoors. Operating on DC 12 V, it combines low power consumption with reliable, all-day performance — making it an ideal choice for homes, hotels, and commercial properties seeking 24/7 surveillance.

Technical Highlights – Dahua CCTV Camera in Sri Lanka

  • Resolution: 5 MP (16:9 output) @ 25 fps

  • Lens: 3.6 mm fixed (2.8 mm / 6 mm / 8 mm optional)

  • Audio: Built-in microphone for real-time recording

  • Night Vision: Up to 80 m Smart IR range

  • Video Format: CVI / CVBS / AHD / TVI switchable

  • Power Supply: DC 12 V

  • Protection: IP67 weatherproof housing

  • Compatibility: Works with Dahua XVR firmware V4.001.0000001.0.R.200908 or later

This model pairs seamlessly with Dahua XVR systems in Sri Lanka for smooth integration and long-term reliability.

Why Choose This Model

The Dahua DH-HAC-HFW1500TL-A 5MP Bullet CCTV Camera offers stunning clarity, Smart IR night vision, and built-in audio, providing total coverage in every environment. Because of its 80 m range, multi-format output, and IP67 durability, it is one of the best CCTV cameras in Sri Lanka for residential and business security.

SKU: DH-HAC-HFW1500TLP-A Category:
Weight 0.7 kg
brands

Dahua

Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio >65 dB
Min. Illumination 0.01 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance 80 m (262.5 ft)
Illumination On/Off Control Auto; manual
Illuminator Number 2
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm; 8 mm
Max. Aperture F1.6
Field of View 2.8 mm: 132° × 111° × 58°

(diagonal × horizontal × vertical)

3.6 mm: 109° × 92° × 48°

(diagonal × horizontal × vertical)

6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical)

8 mm: 48° × 43° × 24° (diagonal × horizontal × vertical)
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)

3.6 mm: 1.6 m (5.2 ft)

6 mm: 3.1 m (10.2 ft)

8 mm: 4.9 m (16.1 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 63.6 m

(208.7 ft)

 25.4 m

(83.3 ft)

 12.7 m

(41.7 ft)

 6.4 m

(21.0 ft)
3.6 mm 80 m

(262.5 ft)

 32 m

(105.0 ft)

 16 m

(52.5 ft)

 8 m

(26.2 ft)
6 mm 120 m

(393.7 ft)

 48 m

(157.5 ft)

 24 m

(78.7 ft)

 12 m

(39.4 m)
8 mm 150.4 m

(493.4 ft)

 60.2 m

(197.5 ft)

 30.1 m

(98.8 ft)

 15 m

(49.2 ft)

Video
Frame Rate CVI:

PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;

NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps

AHD:

PAL: 4M@25 fps;

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps;

NTSC: 4M@30 fps

CVBS:

PAL: 960H;

NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)

Certifications
Certifications CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port
Audio Interface One channel built-in mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power
Power Supply 12V ±30% DC
Power Consumption Max 5.2W (12V DC, IR on)

Environment
Operating Temperature -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Storage Temperature -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Protection Grade IP67

Structure
Casing Metal front cover+plastic main body+plastic bracket
Camera Dimensions 198.9 mm × 80.2 mm × 76.2 mm ( 7.83″ × 3.16″ × 3.00″ )
Net Weight 0.27 kg (0.60 lb)
Gross Weight 0.46 kg (1.01 lb)
