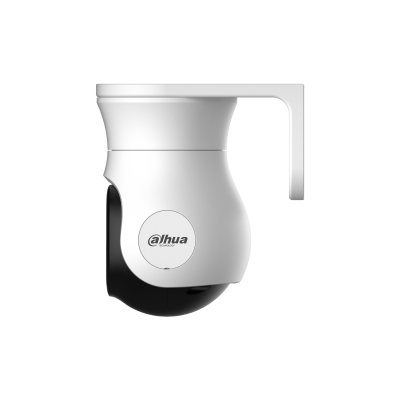

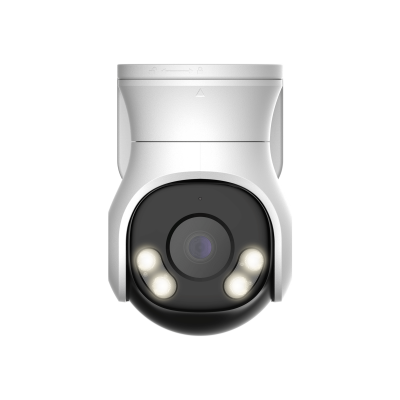

Dahua DH-HAC-PT1200AP-IL-A 2MP Smart Dual Light PT CCTV Camera (2MP+Color+40m IR+Audio+Smart Dual Light+PT+IP66)
Dahua DH-HAC-PT1200AP-IL-A 2MP Smart Dual Light PT CCTV Camera (2MP+Color+40m IR+Audio+Smart Dual Light+PT+IP66) - Image 2
Dahua DH-HAC-PT1200AP-IL-A 2MP Smart Dual Light PT CCTV Camera (2MP+Color+40m IR+Audio+Smart Dual Light+PT+IP66) - Image 3
Dahua DH-HAC-PT1200AP-IL-A 2MP Smart Dual Light PT CCTV Camera (2MP+Color+40m IR+Audio+Smart Dual Light+PT+IP66) - Image 4

Dahua DH-HAC-PT1200AP-IL-A 2MP Smart Dual Light PT CCTV Camera (2MP+Color+40m IR+Audio+Smart Dual Light+PT+IP66)

Dahua

2MP Smart Dual Light PT CCTV camera with 40m IR range, built-in mic, and IP66 rating.

> Max. 30 fps@1080p.

> Smart Dual Light.

> Smart Area Lighting.

> Pan & Tilt.

> 40 m illumination distance.

> Super Adapt.

> Built-in Mic.

> Quick-to-install structure saves installation time.

> 3.6 mm fixed lens (2.8 mm optional).

> IP66, 12 VDC.

Click to Datasheet of HAC-PT1200A-IL-A

Rs.9,500.00 Rs.12,900.00

The Dahua DH-HAC-PT1200AP-IL-A 2MP Smart Dual Light PT CCTV Camera (2MP+Color+40m IR+Audio+Smart Dual Light+PT+IP66) offers pan and tilt functionality with Smart Dual Light technology, giving you complete area coverage and superior night performance. It captures Full HD 1080p video at 30fps, ensuring clear and colorful details around the clock.

Featuring Smart Area Lighting, it automatically switches between infrared (IR) and warm light to provide accurate color imaging when motion is detected. The Super Adapt technology ensures excellent image quality under complex lighting. A built-in microphone delivers real-time audio recording, while the quick-install design saves setup time. Built to last, the IP66-rated housing makes it perfect for outdoor use in any weather.

Key Performance — Dahua CCTV Camera in Sri Lanka

  • Resolution: 2MP (1080p) at 30fps for crystal-clear video.

  • Smart Dual Light: Automatically toggles between IR and warm light for optimized illumination.

  • Illumination Range: Up to 40m for reliable night vision.

  • Pan & Tilt: Enables wide-angle coverage and flexible positioning.

  • Lens Options: 3.6mm (default) or 2.8mm optional.

  • Audio: Built-in microphone for high-quality sound monitoring.

  • Smart Area Lighting: Adjusts brightness dynamically for clearer visuals.

  • Durability: IP66 weatherproof design suitable for outdoor installations.

  • Power: Operates on 12V DC for stable performance.

The Dahua DH-HAC-PT1200AP-IL-A CCTV camera is ideal for homes, hotels, and offices in Sri Lanka, providing intelligent lighting, PT control, and audio monitoring in one durable, easy-to-install unit.

________________________________________________________________

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s;
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (Warm light);4 (IR light)

Angle Adjustment

Pan: 0°–355°
Tilt: 0°–90°
*DO NOT adjust the angle of the main body or enclosure manually

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

41.4 m
(135.83 ft)

16.5 m
(42.13 ft)

8.3 m
(27.23 ft)

4.1 m
(13.45 ft)

3.6 mm

50.9 m
(166.99 ft)

20.3 m
(66.60 ft)

10.2 m
(33.46 ft)

5.1 m
(16.73 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto;Manual

Gain Control

Auto;Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 6.1 W (12 V DC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP66

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Plastic

Product Dimensions

92.9 mm × 91.3 mm × 130 mm (3.66″ × 3.59″ × 5.12″)

Net Weight

0.39 kg (0.86 lb)

Gross Weight

0.64 kg (1.41 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
SKU: DH-HAC-PT1200AP-IL-A Category:
Weight 0.8 kg
brands

Dahua

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s;
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (Warm light);4 (IR light)

Angle Adjustment

Pan: 0°–355°
Tilt: 0°–90°
*DO NOT adjust the angle of the main body or enclosure manually

Lens

Lens Type

Fixed-focal

Auto Focus

No

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

41.4 m
(135.83 ft)

16.5 m
(42.13 ft)

8.3 m
(27.23 ft)

4.1 m
(13.45 ft)

3.6 mm

50.9 m
(166.99 ft)

20.3 m
(66.60 ft)

10.2 m
(33.46 ft)

5.1 m
(16.73 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto;Manual

Gain Control

Auto;Manual

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 6.1 W (12 V DC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP66

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Plastic

Product Dimensions

92.9 mm × 91.3 mm × 130 mm (3.66″ × 3.59″ × 5.12″)

Net Weight

0.39 kg (0.86 lb)

Gross Weight

0.64 kg (1.41 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
