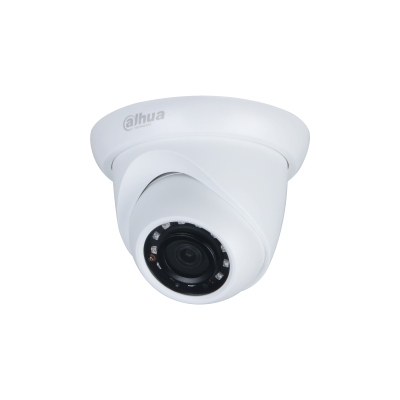

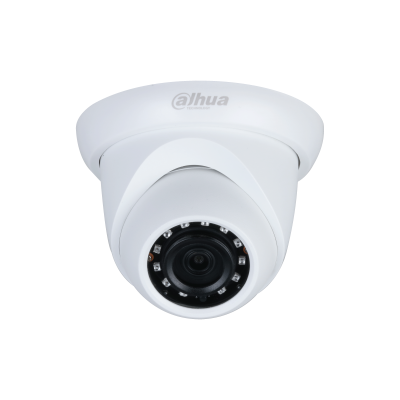

Dahua DH-IPC-HDW1230S-S5 2MP Eyeball Network CCTV Camera (2MP+30m IR+H.265+DWDR+IP67)

Dahua

Dahua 2MP Eyeball CCTV Camera with H.265 compression, 30m IR night vision, and IP67 protection.

> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in efficient IR illuminator, and the max. illumination distance is 30 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
> 12V DC/PoE power supply
> IP67 protection

Rs.19,000.00 Rs.23,100.00

Overview, Performance & Features – Dahua CCTV Camera in Sri Lanka

The Dahua DH-IPC-HDW1230S-S5 2MP Eyeball Network CCTV Camera is a compact and durable Dahua CCTV camera in Sri Lanka, offering reliable full HD security for homes, shops, and offices. It features a 1/2.8-inch CMOS image sensor that delivers 2MP high-definition clarity (1920 × 1080) at smooth 25/30 fps. In addition, the advanced H.265 compression significantly reduces storage and bandwidth usage without affecting video quality.

Moreover, this camera is equipped with a high-efficiency infrared illuminator that ensures clear night vision up to 30 meters, making it perfect for both indoor and outdoor installations. Furthermore, features like DWDR, 3D NR, HLC, BLC, and digital watermarking guarantee balanced, sharp images in challenging lighting conditions. It also supports ROI and Smart H.265+ / H.264+ encoding, adapting to different bandwidth environments for consistent performance.

The DH-IPC-HDW1230S-S5 includes abnormality detection features such as motion detection, video tampering, network disconnection, and illegal access alerts. It operates on 12V DC or PoE power, making installation convenient and cost-efficient. The IP67-rated weatherproof housing ensures long-term durability against rain and dust, making it ideal for Sri Lankan weather conditions.


Technical Highlights – Dahua CCTV Camera in Sri Lanka

  • Image Sensor: 1/2.8″ CMOS, 2MP (1920 × 1080) @25/30 fps

  • Illumination Range: Up to 30 m IR distance

  • Compression: H.265 / Smart H.265+ / Smart H.264+

  • Image Enhancements: DWDR, 3D NR, HLC, BLC, Digital Watermarking

  • Detection Alerts: Motion, Video Tampering, Network Disconnection, IP Conflict, Illegal Access

  • Power Supply: 12 V DC / PoE (802.3af)

  • Protection: IP67 Weatherproof

  • Lens Type: Fixed-focal for wide, clear coverage

This model pairs perfectly with Dahua NVR systems in Sri Lanka for full network integration and remote monitoring access.


Why Choose This Model

The Dahua DH-IPC-HDW1230S-S5 2MP Eyeball CCTV Camera offers Full HD clarity, efficient video compression, and weatherproof protection, ensuring strong security performance for both residential and commercial use. Because of its smart detection features, PoE support, and simple setup, it’s a popular and cost-effective choice among users in Sri Lanka.

SKU: DH-IPC-HDW1230S-S5 Category:
Weight 0.6 kg
brands

Dahua



Camera

Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 16 MB
RAM 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.01 Lux @F2.0
S/N Ratio >56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 12 (IR LED)
Pan/Tilt/Rotation Range Pan: 0° to 355°

Tilt: 0° to 78°

Rotation: 0° to 360°

Lens

Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture 2.8 mm: F2.0

3.6 mm: F2.0

Field of View 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°

3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°

Iris Control Fixed
Close Focus Distance 2.8 mm: 0.5 m (1.6 ft)

3.6 mm: 0.8 m (2.6 ft)

DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 38.6 m
(126.6 ft)
15.4 m

(50.5 ft)

7.7 m

( 25.3 ft)

3.9 m
(12.8 ft)
3.6 mm 49.7 m

(163.1 ft)

19.9 m

(65.3 ft)

9.9 m
(32.5 ft)
5.0 m
(16.4 ft)

Video

Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/Smart H.264+
Video Frame Rate Main Stream:

1920 × 1080 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6400 kbps

Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas

Alarm

Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception

Network

Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Genetec
User/Host 6 (Total bandwidth: 36 M)
Storage FTP
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android

Certification

Certifications CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic power consumption:1.5W (12V DC); 3.3W (PoE)

Max. power consumption (ICR + H.265+IR intensity): 2.3W (12V DC); 4.4W (PoE)

Environment

Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection IP67

Structure

Casing Inner core: Metal

Cover: Plastic

Decoration ring: Plastic

Pedestal: Plastic

Product Dimensions 84.9 mm × Φ108 mm (3.3″ × Φ4.3″)
Net Weight 0.26 kg (0.5 lb)
Gross Weight 0.39 kg (0.8 lb)
