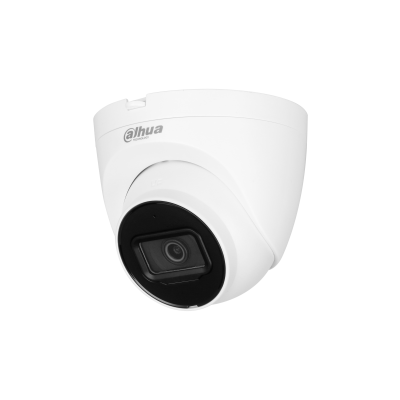

Dahua DH-IPC-HDW2241TP-S 2MP IR Fixed-focal Eyeball WizSense Network Camera (2MP+30m IR+Audio+WDR+SMD Plus)
Dahua DH-IPC-HDW2241TP-S 2MP IR Fixed-focal Eyeball WizSense Network Camera (2MP+30m IR+Audio+WDR+SMD Plus) - Image 2
Dahua DH-IPC-HDW2241TP-S 2MP IR Fixed-focal Eyeball WizSense Network Camera (2MP+30m IR+Audio+WDR+SMD Plus) - Image 3

Dahua DH-IPC-HDW2241TP-S 2MP IR Fixed-focal Eyeball WizSense Network Camera (2MP+30m IR+Audio+WDR+SMD Plus)

Dahua

2MP Dahua WizSense Eyeball Network CCTV Camera with 30 m IR, audio recording, AI-based SMD Plus detection, and IP67 protection.

> 2-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.

> Outputs max. 2 MP (1920 × 1080)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

> Supports max. 256 G Micro SD card; built in MIC.

> 12 VDC/PoE power supply.

> IP67 protection.

> SMD Plus.

Click to Datasheet of IPC-HDW2241T-S

Rs.26,100.00 Rs.35,100.00

Overview, Performance & Features

The Dahua CCTV camera in Sri Lanka — DH-IPC-HDW2241TP-S — is a 2MP WizSense Eyeball Network Camera that delivers sharp 1080p video and intelligent motion detection for advanced security applications. It features a 1/2.8-inch CMOS sensor that ensures high-definition clarity even in low light. Moreover, the camera outputs a maximum of 2MP resolution at 25 or 30 fps, maintaining smooth video performance. In addition, the H.265 compression technology reduces storage requirements while preserving image quality, making it highly efficient for both commercial and residential use.

Furthermore, the DH-IPC-HDW2241TP-S includes built-in infrared LEDs that provide up to 30 meters of illumination, ensuring clear night vision even in complete darkness. The camera’s 3D Noise Reduction (3D NR), WDR, and digital watermarking enhance image stability and clarity across all environments. Additionally, the built-in microphone supports synchronized audio recording, which helps capture valuable context during security events.

With SMD Plus and AI-based human and vehicle detection, it minimizes false alarms and ensures precise alerts for true motion targets. Moreover, it supports microSD storage up to 256GB, PoE power supply, and IP67 weather protection, offering durability and easy installation. Therefore, the Dahua CCTV camera in Sri Lanka — DH-IPC-HDW2241TP-S — is an excellent choice for users seeking performance, efficiency, and reliability in one professional surveillance camera.

Technical Highlights

  • Resolution: 2MP (1920 × 1080) @ 25/30 fps

  • Illumination Distance: 30 m IR night vision

  • Lens: Fixed focal lens with rotation mode

  • Compression: H.265 / H.264 / Smart H.265+

  • Audio: Built-in microphone for audio monitoring

  • AI Functions: SMD Plus, Human and Vehicle Detection

  • Storage: Supports microSD up to 256 GB

  • Protection: IP67 weatherproof rating

  • Power: 12 VDC / PoE

Why Choose This Dahua CCTV Camera in Sri Lanka

The Dahua DH-IPC-HDW2241TP-S combines WizSense AI, SMD Plus detection, and superior night imaging in a durable IP67 body. Hence, it’s a perfect Dahua CCTV camera in Sri Lanka for hotels, offices, and homes that require smart, 24-hour monitoring.

SKU: DH-IPC-HDW2241TP-S Category:
Weight 0.7 kg
brands

Dahua

Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.6 (Color, 30 IRE)
0.0002 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft) (IR LED)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 107°; V: 56°; D: 127°

3.6 mm: H: 88°; V: 44°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.30 ft)

3.6 mm: 1.3 m (4.37 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

43.9 m
(144.03 ft)

17.5 m
(57.41 ft)

8.8 m
(28.87 ft)

4.4 m
(14.44 ft)

3.6 mm

58.9 m
( 193.24 ft)

23.6 m
(77.43 ft)

11.8 m
(38.71 ft)

5.9 m
(19.36 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080@ (1–25/30 fps)
Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; SMD; voltage detection;security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE
Chrome
Firefox

Management Software

DSS; DMSS

Mobile Client

iOS; Android

Security

Trusted execution; Digest; Security logs; WSSE; Account lockout; syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.1 W (12 VDC); 2.4 W (PoE);
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Inner core: Metal

Cover: Plastic

Product Dimensions

100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″)

Net Weight

0.37 kg (0.82 lb)

Gross Weight

0.56 kg (1.23 lb)
