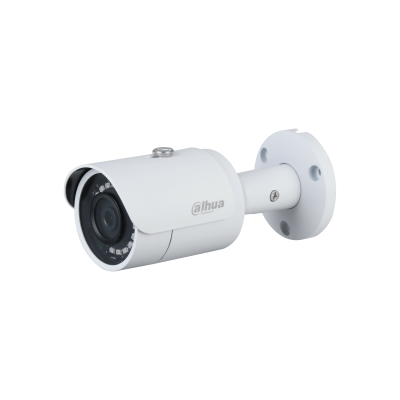

Dahua DH-IPC-HFW1230S-S5 2MP Bullet Network CCTV Camera (2MP+30m IR+H.265+DWDR+IP67)

Dahua

2MP Dahua Bullet CCTV Camera with H.265 compression, 30 m IR illumination and IP67 protection

> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in efficient IR illuminator, and the max. illumination distance is 30 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal accessa
> 12V DC/PoE power supply
> IP67 protection

Click to Datasheet of IPC-HFW1230S-S5

Rs.19,000.00 Rs.23,100.00

Overview, Performance & Features – Dahua CCTV in Sri Lanka

The Dahua DH-IPC-HFW1230S-S5 Bullet CCTV Camera is one of the most reliable Dahua CCTV in Sri Lanka, offering 2 MP Full HD resolution and excellent night-vision performance. It uses a 1/2.8-inch CMOS image sensor that captures clear details in low-light conditions while minimizing image noise. In addition, the camera supports H.265 and Smart H.265+ compression, ensuring reduced storage use and smooth streaming without loss of clarity.

Moreover, its built-in IR illuminator provides up to 30 m infrared range, allowing clear visibility even in total darkness. Furthermore, the camera integrates DWDR, 3D NR, HLC, and BLC technologies, which enhance contrast and stabilize brightness in complex lighting. It also detects motion, video tampering, IP conflicts, and illegal access, ensuring reliable security at all times.

The IP67-rated weatherproof housing makes this model suitable for indoor and outdoor installations throughout Sri Lanka. Additionally, its 12 V DC or PoE power supply simplifies wiring and installation. Whether used for homes, offices, hotels, or retail stores, the DH-IPC-HFW1230S-S5 delivers dependable, energy-efficient, and long-lasting performance that fits modern security systems.


Technical Highlights – Dahua CCTV Camera

  • Image Sensor: 1/2.8″ CMOS, 2 MP (1920 × 1080) @ 25/30 fps

  • Illumination Range: Up to 30 m IR distance

  • Compression: H.265, Smart H.265+, Smart H.264+

  • Image Enhancements: DWDR, 3D NR, HLC, BLC, Digital Watermarking

  • Detection Functions: Motion, Tampering, Network Disconnection, IP Conflict, Illegal Access

  • Power Supply: 12 V DC / PoE (802.3 af)

  • Protection: IP67 Weatherproof

  • Installation: Indoor / Outdoor applications

You can pair this camera with Dahua NVR systems in Sri Lanka for a complete, seamless surveillance setup.


Why Choose This Model

The Dahua DH-IPC-HFW1230S-S5 combines crisp 2 MP imaging, smart compression, and rugged construction to deliver outstanding security results. Because of its wide IR coverage and H.265 efficiency, it saves bandwidth and storage while keeping detailed footage. Therefore, it’s an excellent choice for anyone in Sri Lanka seeking a cost-effective and durable CCTV solution.

SKU: DH-IPC-HFW1230S-S5 Category:
Weight 0.8 kg
brands

Dahua



Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.01 Lux @F2.0

S/N Ratio

>56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

18 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°

Lens of DH-IPC-HFW1230S-S5

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

2.8 mm: F2.0

3.6 mm: F2.0

Field of View

2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°

3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.6 ft)

3.6 mm: 0.8 m (2.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m
(126.6 ft)

15.4 m

(50.5 ft)

7.7 m

( 25.3 ft)

3.9 m
(12.8 ft)

3.6 mm

49.7 m

(163.1 ft)

19.9 m

(65.3 ft)

9.9 m
(32.5 ft)

5.0 m
(16.4 ft)

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/Smart H.264+

Video Frame Rate

Main Stream:

1920 × 1080 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6400 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast

Interoperability

ONVIF (Profile S/Profile T); CGI; P2P; Genetec

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

Basic power consumption: 1.5W (12V DC); 2.3W (PoE)

Max. power consumption (ICR + H.265+IR intensity): 4.3W (12V DC); 5.5W (PoE)

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67

Structure

Casing

Metal + plastic

Product Dimensions

164.6 mm × Φ70 mm (6.5″ × Φ2.8″)

Net Weight

0.39 kg (0.8 lb)

Gross Weight

0.50 kg (1.1 lb)
