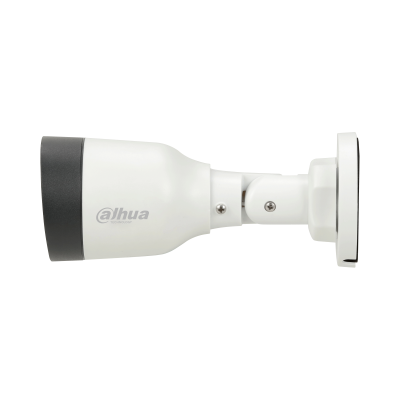

Dahua DH-IPC-HFW1230S1-S5 2MP Bullet Network CCTV Camera (2MP+30m IR+H.265+DWDR+IP67)

Dahua

2 MP Dahua Bullet CCTV Camera with Smart H.265 compression, 30 m IR night vision, and IP67 protection

> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 2MP (1920 × 1080) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in efficient IR illuminator, and the max. illumination distance is 30 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes
> Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
> 12V DC/PoE power supply
> IP67 protection

Click to Datasheet of DH-IPC-HFW1230S1-S5

Rs.15,000.00 Rs.18,800.00

Overview, Performance & Features – Dahua CCTV in Sri Lanka

The Dahua DH-IPC-HFW1230S1-S5 Bullet CCTV Camera is a reliable Dahua CCTV in Sri Lanka, designed for high-quality security monitoring in both indoor and outdoor environments. It captures Full HD 2MP (1920×1080) video using a 1/2.8-inch CMOS sensor, ensuring sharp detail even under low light. In addition, it features Smart H.265+ compression, which reduces bandwidth and storage needs while keeping crystal-clear images.

Furthermore, this Dahua CCTV in Sri Lanka** offers up to 30 m IR night vision, enabling 24/7 protection with efficient infrared illumination. Moreover, with DWDR, 3D NR, HLC, and BLC technologies, the camera provides balanced lighting and reduced image noise, improving video performance in complex environments. It also includes motion detection, video tampering, and network disconnection alerts, ensuring your system stays secure and active at all times.

Additionally, the IP67-rated weatherproof body makes this bullet camera durable and resistant to dust and rain. Its 12V DC or PoE power options make installation simple and cost-effective. Whether for home, office, or commercial sites, this camera provides the best combination of reliability, performance, and long-term value.


Technical Highlights – Dahua CCTV Camera

  • Image Sensor: 1/2.8″ CMOS, 2 MP (1920 × 1080) @25/30 fps

  • Illumination Range: Up to 30 m IR distance

  • Video Compression: H.265, Smart H.265+, Smart H.264+

  • Functions: DWDR, 3D NR, HLC, BLC, Digital Watermarking

  • Detection: Motion, Tampering, Network Disconnection, IP Conflict

  • Power Supply: 12 V DC / PoE (802.3af)

  • Protection: IP67 weatherproof

  • Application: Indoor and outdoor use

You can explore other Dahua NVR models in Sri Lanka to pair with this camera for a complete surveillance setup.


Why Choose This Model

The Dahua DH-IPC-HFW1230S1-S5 provides high-resolution recording, smart compression, and strong durability. Because of its robust build and intelligent video optimization, it’s ideal for any Sri Lankan property requiring dependable and budget-friendly video surveillance. Therefore, it remains a top choice for installers and homeowners seeking efficient and future-ready CCTV systems.

SKU: DH-IPC-HFW1230S1-S5 Category:
Weight 0.6 kg
brands

Dahua



Camera

Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 16 MB
RAM 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.01 Lux @F2.0
S/N Ratio >56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0° to 360°

Tilt: 0° to 90°

Rotation: 0° to 360°

Lens of DH-IPC-HFW1230S1-S5

Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture 2.8 mm: F2.0

3.6 mm: F2.0

Field of View 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°

3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°

Iris Control Fixed
Close Focus Distance 2.8 mm: 0.5 m (1.6 ft)

3.6 mm: 0.8 m (2.6 ft)

DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 38.6 m
(126.6 ft)
15.4 m

(50.5 ft)

7.7 m

( 25.3 ft)

3.9 m
(12.8 ft)
3.6 mm 49.7 m

(163.1 ft)

19.9 m

(65.3 ft)

9.9 m
(32.5 ft)
5.0 m
(16.4 ft)

Video

Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/Smart H.264+
Video Frame Rate Main Stream:

1920 × 1080 (1 fps–25/30 fps)

Sub stream:

704 × 576 (1 fps–25 fps)

704 × 480 (1 fps–30 fps)

Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6400 kbps

Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas

Alarm

Alarm Event Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception

Network

Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Genetec
User/Host 6 (Total bandwidth: 36 M)
Storage FTP
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android

Certification

Certifications CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply 12V DC/PoE (802.3af)
Power Consumption Basic power consumption: 1.4W (12V DC); 2.2W (PoE)

Max. power consumption (ICR + H.265+IR intensity): 3.3W (12V DC); 4.3W (PoE)

Environment to DH-IPC-HFW1230S1-S5

Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Protection IP67

Structure

Casing Metal + plastic
Product Dimensions 162.6 mm × Φ70 mm (6.4″ × Φ2.8″)
Net Weight 0.22 kg (0.4 lb)
Gross Weight 0.34 kg (0.7 lb)
