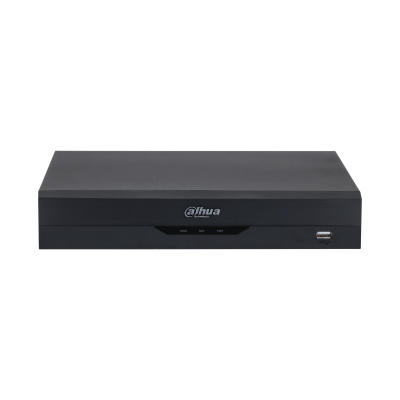

Dahua DH-XVR5116HS-I3 5MP 16CH WizSense DVR (5MP+16CH+AI+Smart H.265+Perimeter Protection)
Dahua DH-XVR5116HS-I3 5MP 16CH WizSense DVR (5MP+16CH+AI+Smart H.265+Perimeter Protection) - Image 2
Dahua DH-XVR5116HS-I3 5MP 16CH WizSense DVR (5MP+16CH+AI+Smart H.265+Perimeter Protection) - Image 3

Dahua DH-XVR5116HS-I3 5MP 16CH WizSense DVR (5MP+16CH+AI+Smart H.265+Perimeter Protection)

Dahua

16-channel Dahua WizSense DVR with AI detection, Smart H.265+, and perimeter protection.

> H.265+/H.265 dual-stream video compression

> Supports Full-channel AI Coding

> Supports HDCVI/AHD/TVI/CVBS/IP video inputs

> Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth

> Up to 4 channels video stream (analog channel) Perimeter Protection

> Up to 16 channels video stream (analog channel) SMD Plus

> Up to 2 channels video stream (analog channel) human face recognition

> IoT & POS functionalities

Click to Datasheet of DH-XVR5116HS-I3



Rs.61,800.00 Rs.88,000.00

Overview, Performance & Features – Dahua CCTV Camera in Sri Lanka

The Dahua DH-XVR5116HS-I3 5MP WizSense DVR is a powerful, AI-enabled Dahua CCTV camera system in Sri Lanka designed for large-scale video monitoring. It offers 16-channel 5MP recording with intelligent video analysis, providing clear images and accurate event detection for every security need.

Additionally, this model supports HDCVI, AHD, TVI, CVBS, and IP inputs, making it compatible with a wide range of cameras. You can connect up to 24 IP cameras (up to 6 MP each), and the system delivers smooth video with 128 Mbps bandwidth.

Moreover, it includes QuickPick 2.0 for faster target retrieval and SMD Plus for precise human and vehicle detection. AI functions such as face recognition and perimeter protection improve response time and reduce false alarms.

Furthermore, with AI Coding and Smart H.265+ compression, it saves significant storage and bandwidth while keeping every image sharp. Built for businesses, hotels, and institutions in Sri Lanka, it also supports IoT and POS integration, creating a smart and efficient surveillance hub.

Technical Highlights – Dahua CCTV Camera in Sri Lanka

  • Channels: 16 analog + 24 IP (up to 6 MP)

  • AI Functions: SMD Plus, QuickPick 2.0, face recognition, perimeter protection

  • Compression: Smart H.265+/H.265 dual-stream

  • Video Input: HDCVI / AHD / TVI / CVBS / IP

  • Bandwidth: 128 Mbps incoming

  • AI Coding: Reduces storage use without losing detail

  • Storage: 1 HDD supported

  • Integration: IoT and POS ready

  • Design: Compact 1U DVR, easy installation

It delivers smart recording performance and reliable operation, making it one of the most capable Dahua CCTV recorders in Sri Lanka.

Why Choose This Model

The Dahua DH-XVR5116HS-I3 5MP WizSense DVR combines AI accuracy, efficient storage, and broad compatibility. Because of its smart features and high-performance recording, it’s the perfect choice for offices, hotels, and retail spaces in Sri Lanka seeking stable CCTV security solutions.

SKU: DH-XVR5116HS-I3 Category:
Weight 2.5 kg
brands

Dahua



System
Main Processor Embedded processor
Operating System Embedded Linux
Operating Interface Web; Local GUI

Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model: 2 channel, 10 IVS for each channel

General Model: 4 channels, 10 IVS for each channel

Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s)

Face Recognition
Face Database Capacity Up to 10 face databases with 10000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels

SMD Plus
SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video
Analog Camera Input 16 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.

2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.

3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.
IP Camera Input Up to 24 channels of IPC access

8 IP channels by default + 16 channels (analog channels are converted to IP channels)

incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps

*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity Main stream:

5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps)

5M-N Mode:

All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps)

Sub stream: D1, CIF@(1–15fps)
Dual-stream Yes
Video Frame Rate PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.
Video Bit Rate 32 Kbps–6144 Kbps Per Channel
Audio Sampling 8 KHz, 16 bit
Audio Bit Rate 64 Kbps
Video Output 1 HDMI ,1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Compression Standard
Video Compression AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression G.711A/G.711u/PCM

Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iPhone, iPad, Android
Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome, IE9 or above, Firefox
Network Mode Single-address mode

Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
Backup Method USB Device/Network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Alarm
General Alarm Motion detection, Video Loss, tampering
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

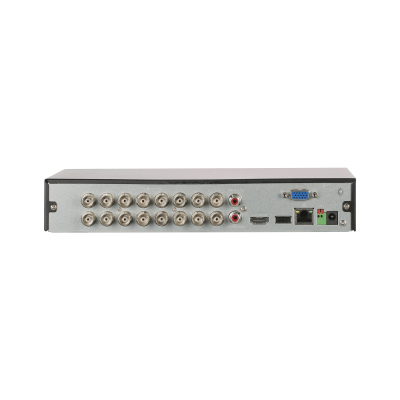

Ports
Audio Input 1-channel RCA (external)

16-channel BNC (coaxial audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA Port, up to 16TB, the maximum HDD capacity varies with environment temperature
RS-485 1 Port, for PTZ Control
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)

General
Power Supply DC12V, 2A
Power Consumption Lower than 12 W
Net Weight 1.17 kg (2.58 lb)
Gross Weight 1.57 kg (3.46 lb)
Product Dimensions Compact 1U, 260.0 mm × 237.9 mm × 47.6 mm

10.24″ × 9.37″ × 1.87″ (W × D × H)
Packaging Dimensions 333.0 mm × 89.0 mm × 315.0 mm
13.11″ × 3.50″ × 12.40″ (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90%
Installation Desktop
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
