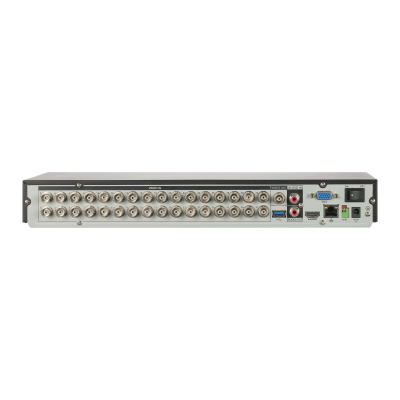

Dahua DH-XVR5232AN-I3 5MP 32CH WizSense DVR (5MP+32CH+AI+Smart H.265+Perimeter Protection)
Dahua DH-XVR5232AN-I3 5MP 32CH WizSense DVR (5MP+32CH+AI+Smart H.265+Perimeter Protection) - Image 2
Dahua DH-XVR5232AN-I3 5MP 32CH WizSense DVR (5MP+32CH+AI+Smart H.265+Perimeter Protection) - Image 3

Dahua DH-XVR5232AN-I3 5MP 32CH WizSense DVR (5MP+32CH+AI+Smart H.265+Perimeter Protection)

Dahua

32-channel Dahua WizSense 5MP DVR with AI detection, Smart H.265+, and 2 HDD storage.

> H.265+/H.265 dual-stream video compression.

> Supports 16-channel AI-Coding.

> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.

> Max 32 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth.

> Up to 4 channels video stream (analog channel) Perimeter Protection.

> Up to 16 channels video stream (analog channel) SMD Plus.

> Up to 2 channels video stream (analog channel) human face recognition.

> IoT & POS functionalities.

Click to Datasheet of DH-XVR5232AN-I3

Rs.99,000.00 Rs.120,000.00

Overview, Performance & Features – Dahua CCTV Camera in Sri Lanka

The Dahua DH-XVR5232AN-I3 5MP 32CH WizSense DVR is a high-performance Dahua CCTV camera in Sri Lanka designed for reliable and intelligent video recording. It supports 32 analog channels with 5MP resolution, offering clear and detailed footage for every security application. This model also works with HDCVI, AHD, TVI, CVBS, and IP formats, giving users flexible camera options for different environments.

The device supports up to 48 IP cameras (up to 6MP each) and delivers smooth video through its 192 Mbps bandwidth. In addition, QuickPick 2.0 makes it easier to locate targets in playback, while SMD Plus accurately detects humans and vehicles, reducing false alarms. The 8-channel perimeter protection and 2-channel face recognition enhance security with AI-driven precision.

Furthermore, the AI Coding and Smart H.265+ compression technologies reduce storage usage while maintaining image quality. Dual HDD slots allow longer recording periods, and IoT plus POS integration make it perfect for retail stores, hotels, and offices. Designed for scalability and reliability, this Dahua CCTV recorder in Sri Lanka ensures stable operation and intelligent monitoring in any setup.

Technical Highlights – Dahua CCTV Camera in Sri Lanka

  • Channels: 32 analog + 48 IP (up to 6MP)

  • AI Functions: SMD Plus, QuickPick 2.0, face recognition, perimeter protection

  • Compression: Smart H.265+/H.265 dual-stream

  • Bandwidth: 192 Mbps

  • Storage: 2 HDDs supported

  • Integration: IoT and POS ready

  • AI Coding: Reduces bandwidth and saves storage

  • Build: 1U compact housing for easy installation

Why Choose This Model

The Dahua DH-XVR5232AN-I3 5MP WizSense DVR combines AI analytics, efficient storage, and multi-format support. It is ideal for commercial buildings, hotels, retail outlets, and institutions in Sri Lanka seeking professional surveillance with long-term reliability.

SKU: DH-XVR5232AN-I3 Category:
Weight 4 kg
brands

Dahua



System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI

Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model: 2 channels, 10 IVS for each channel

General Model: 4 channels, 10 IVS for each channel

Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel) )

Face Recognition
Face Database Capacity Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels

SMD Plus
SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video
Analog Camera Input 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps.
2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input Up to 32 channels of IPC access
32 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
Encoding Capacity Main stream: 5M-N@(1fps–10fps); 4M-N,1080p@(1fps–15fps); 1080N, 720p, 960H, D1,CIF@(1fps–25/30fps)
Sub stream: D1, CIF@(1fps–15fps)
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA, 1 TV
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display 1/4/8/9/16/25/36
Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Samsung

Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM

Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access IOS; Android
Interoperability ONVIF 21.12; CGI
Browser Chrome, IE9 or later, Firefox
Network Mode Single-address mode

Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4/9/16
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage
Disk Group Yes

Alarm
General Alarm Motion detection; video loss; tampering
Anomaly Alarm No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm Face detection; face recognition; perimeter protection
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email

Ports
TV Output 1 channel
Audio Input 1-channel RCA
32-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 2 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
RS-485 1 port, for PTZ control
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)

General
Power Supply DC 12V, 5A
Power Consumption <16 W (without HDD)
Net Weight 1.90 kg (4.20 lb)
Gross Weight 3.20 kg (7.00 lb)
Product Dimensions 375.0 mm × 289.4 mm × 53.0 mm (14.76” × 11.40” × 2.09”) (W × D × H)
Packaging Dimensions 433.0 mm × 141.0 mm × 366.0 mm (17.05” × 5.56” × 14.41”) (W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity 10%–90% (RH)
Installation Rack or desktop
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
