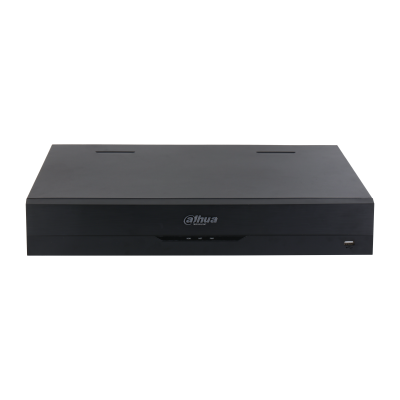

Dahua DH-XVR5432L-I3 5MP 32CH WizSense DVR (5MP+32CH+AI+Smart H.265+Face Recognition+Perimeter Protection)

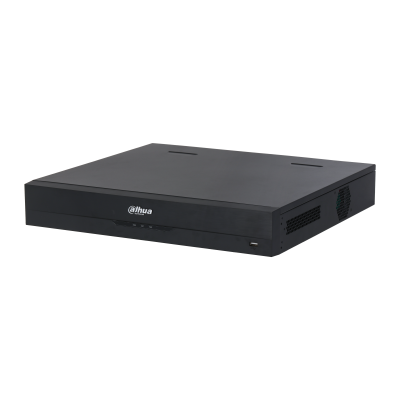

Dahua DH-XVR5432L-I3 5MP 32CH WizSense DVR (5MP+32CH+AI+Smart H.265+Face Recognition+Perimeter Protection) - Image 2
Dahua DH-XVR5432L-I3 5MP 32CH WizSense DVR (5MP+32CH+AI+Smart H.265+Face Recognition+Perimeter Protection) - Image 3

Dahua DH-XVR5432L-I3 5MP 32CH WizSense DVR (5MP+32CH+AI+Smart H.265+Face Recognition+Perimeter Protection)

Dahua

32-channel Dahua WizSense 5MP DVR with AI face recognition, Smart H.265+, and 4 HDD storage

> H.265+/H.265 dual-stream video compression.

> Supports 16-channel AI-Coding.

> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.

> Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.

> Up to 8 channels video stream (analog channel) perimeter protection.

> Up to 16 channels video stream (analog channel) SMD plus.

> Up to 2 channels video stream (analog channel) human face recognition.

> IoT & POS functionalities.

Click to Datasheet of DH-XVR5432L-I3

Rs.224,530.00 Rs.282,600.00

Overview, Performance & Features – Dahua CCTV Camera in Sri Lanka

The Dahua DH-XVR5432L-I3 5MP 32CH WizSense DVR is a smart and efficient Dahua CCTV camera in Sri Lanka. It delivers strong performance with advanced AI functions and high-definition recording. This recorder supports HDCVI, AHD, TVI, CVBS, and IP inputs, making it ideal for both new and existing CCTV systems.

It handles 32 analog channels in 5MP resolution and supports up to 48 IP cameras (up to 8 MP each). The 192 Mbps bandwidth keeps video streams clear and stable. In addition, Smart H.265+ compression saves storage while maintaining image quality.

Moreover, the device includes powerful AI features. SMD Plus and QuickPick 2.0 improve human and vehicle detection, reducing false alarms. Face recognition and perimeter protection help identify threats faster. AI Coding also optimizes recording by focusing on important moving objects.

Furthermore, the DVR offers IoT and POS integration, making it ideal for hotels, shops, and offices that need smart video and transaction monitoring. Its 1.5U chassis with four HDD slots provides ample storage for long-term use. Overall, this Dahua CCTV recorder in Sri Lanka offers power, stability, and advanced AI intelligence in one reliable unit.

Technical Highlights – Dahua CCTV Camera in Sri Lanka

  • Channels: 32 analog + 48 IP (up to 8 MP)

  • Compression: Smart H.265+/H.265 dual-stream

  • AI Functions: SMD Plus, QuickPick 2.0, perimeter protection, face recognition

  • Bandwidth: 192 Mbps incoming

  • Storage: 4 HDD bays for large recording capacity

  • Integration: IoT and POS ready

  • AI Coding: 16-channel optimization to reduce file size

  • Build: Durable 1.5U metal housing

Why Choose This Model

The Dahua DH-XVR5432L-I3 5MP 32CH WizSense DVR combines AI analytics, high efficiency, and multi-format compatibility. It is an excellent choice for hotels, offices, schools, and retail spaces in Sri Lanka that need dependable, long-term security recording.

SKU: DH-XVR5432L-I3 Category:
Weight 8 kg
brands

Dahua



System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI

Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel

Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s)

Face Recognition
Face Database Capacity Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels

SMD Plus
SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video
Analog Camera Input 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.

2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.

3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.
IP Camera Input Up to 32 channels of IPC access
32 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
Encoding Capacity Main stream:

5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps)

5M-N Mode:

All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps)

Sub stream: D1, CIF@(1–15fps)
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 2 HDMI, 1 VGA, 1 TV
Resolution
VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
*Heterogeneous video sources output for HDMI2 is configurable.
Multi-screen Display 1/4/8/9/16/25/36
Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Compression Standard
Video Compression AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression G.711a; G.711u; PCM

Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access iOS; Android
Interoperability ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome, IE9 or later, Firefox
Network Mode Single-address mode

Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4/9/16
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage
Disk Group Yes

Alarm
General Alarm Motion detection; video loss; tampering; local alarm
Anomaly Alarm No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm Face detection; face recognition; perimeter protection
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email

Ports
TV Output Yes
Audio Input 4-channel BNC (external)
32-channel BNC (coaxial audio)
Audio Output 1-channel BNC
Two-way Talk 1-channel BNC
Alarm Input 16 channels
Alarm Output 6 channels
HDD Interface 4 SATA ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature
eSATA 1
RS-232 1 port, for PC Communication & Keyboard
RS-485 1 port, for PTZ control
USB 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)
HDMI 2
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)

General
Power Supply 100-240 VAC, 50/60 Hz
Power Consumption <22 W
Net Weight 4.8 kg (10.58 lb)
Gross Weight 7.1 kg (15.65 lb)
Product Dimensions 1.5U, 440.0 mm × 420.2 mm × 76.0 mm
(17.32″ × 16.54″ × 2.99″) (W × D × H)
Packaging Dimensions 529.0 mm × 499.0 mm × 211.0 mm
20.83″ × 19.65″ × 8.31″ (W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity 10%–90% (RH)
Installation Rack or desktop
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
