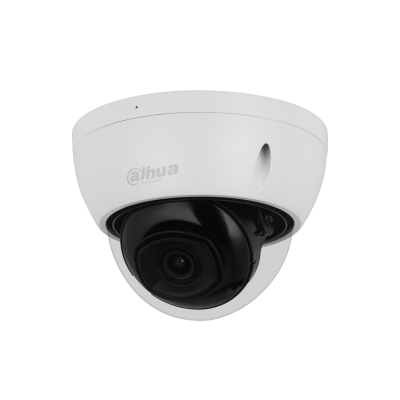

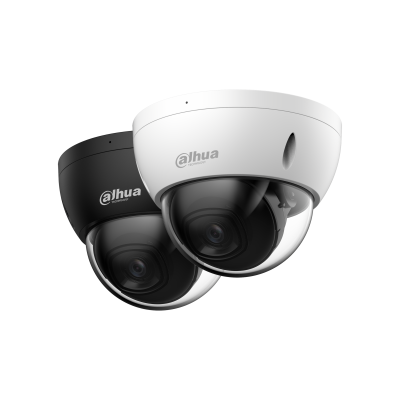

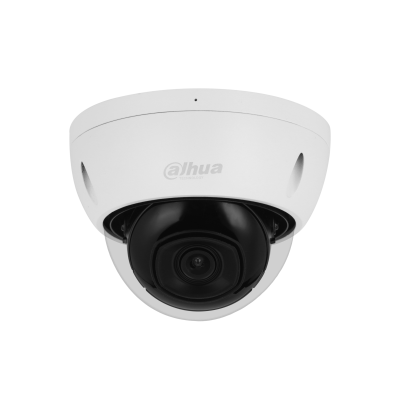

Dahua IPC-HDBW2241E-S 2MP IR Fixed-focal Dome WizSense Network Camera (2MP+30m IR+Audio+AI Detection+IP67+IK10)
Dahua IPC-HDBW2241E-S 2MP IR Fixed-focal Dome WizSense Network Camera (2MP+30m IR+Audio+AI Detection+IP67+IK10) - Image 2
Dahua IPC-HDBW2241E-S 2MP IR Fixed-focal Dome WizSense Network Camera (2MP+30m IR+Audio+AI Detection+IP67+IK10) - Image 3

Dahua IPC-HDBW2241E-S 2MP IR Fixed-focal Dome WizSense Network Camera (2MP+30m IR+Audio+AI Detection+IP67+IK10)

Dahua

2MP Dahua WizSense Fixed-focal Dome CCTV Camera with 30 m IR, audio recording, AI human and vehicle detection, PoE, and IP67 + IK10 protection.

> 2-MP 1/2.8″ CMOS image se.nsor, low luminance, and high definition image.

> Outputs max. 2 MP (1920 × 1080)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

> Supports max. 256 G Micro SD card; built in MIC.

> 12 VDC/PoE power supply, easy for installation.

> IP67 and IK10 protection.

> SMD Plus.

Click to Datasheet of IPC-HDBW2241E-S

Rs.26,300.00 Rs.35,100.00

Overview, Performance & Features

The Dahua CCTV camera in Sri Lanka — IPC-HDBW2241E-S is a 2 MP WizSense Network Camera built to deliver superior clarity, smart AI detection, and strong protection for demanding environments. It uses a 1/2.8-inch CMOS sensor that captures bright, high-definition 1080 p images even in low-light conditions. Moreover, the camera supports up to 30 fps recording, ensuring smooth video playback for real-time monitoring. In addition, the H.265 video codec compresses data efficiently to save storage without compromising image quality.

Furthermore, the IPC-HDBW2241E-S is equipped with built-in IR LEDs offering up to 30 meters of night-vision range, while its WDR, 3D NR, and HLC/BLC technologies enhance image balance under bright or shadowed conditions. The integrated microphone provides real-time audio capture, making it easier to verify incidents and monitor environments remotely. Additionally, AI-powered features such as intrusion and tripwire detection with human and vehicle classification ensure accurate alerts and reduce false alarms.

Moreover, the camera supports a microSD card (up to 256 GB), PoE connectivity, and durable IP67 and IK10 ratings, ensuring resistance against water, dust, and vandalism. Therefore, the Dahua IPC-HDBW2241E-S is an ideal Dahua CCTV camera in Sri Lanka for hotels, offices, and residences seeking smart, efficient, and reliable security coverage in a compact dome design.

Technical Highlights

  • Resolution: 2 MP (1920 × 1080) @ 25/30 fps

  • Illumination Distance: 30 m IR night vision

  • Lens: Fixed-focal with rotation mode

  • Compression: H.265 / H.264 / Smart H.265+

  • Audio: Built-in microphone for live recording

  • AI Functions: SMD Plus, Intrusion and Tripwire Detection

  • Storage: MicroSD card support up to 256 GB

  • Protection: IP67 weatherproof and IK10 vandal-resistant

  • Power: 12 V DC / PoE

Why Choose This Dahua CCTV Camera in Sri Lanka

The Dahua IPC-HDBW2241E-S combines AI accuracy, audio surveillance, and rugged IK10 durability in one smart dome unit. Hence, it is perfect for anyone in Sri Lanka looking for a Dahua CCTV camera that offers clarity, intelligence, and long-term reliability in any installation environment.

SKU: DH-I-HDBW2241EP-S Category:
Weight 0.6 kg
brands

Dahua

Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.6 (Color, 30 IRE)
0.0002 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

up to 30 m (98.43 ft) (IR LED)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 106°; V: 56°; D: 127°
3.6 mm: H: 88°; V: 44°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.30 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

43.9 m (144.03 ft)

17.5 m

(57.41 ft)

8.8 m

(28.87 ft)

4.4 m

(14.44 ft)

3.6 mm

58.9 m (193.24 ft)

23.6 m

(77.43 ft)

11.8 m

(38.71 ft)

5.9 m

(19.37 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Manual;Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE; Chrome; Firefox

Management Software

DSS; DMSS

Mobile Client

iOS; Android

Security

Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; �yslog; HTTPS; 802.1x; Trusted boot;Trusted execution; Trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

Power Supply

12 VDC/PoE

Power Consumption

Basic: 1.9 W (12 VDC); 2.5 W (PoE)
Max. (ICR + H.265 + WDR + max. Illumination + intelligence on): 4.7 W (12 VDC); 5.6 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

81.0 mm × Φ109.9 mm (3.19″ × Φ4.33″)

Net Weight

0.34 kg (0.75 lb)

Gross Weight

0.49 kg (1.08 lb)
