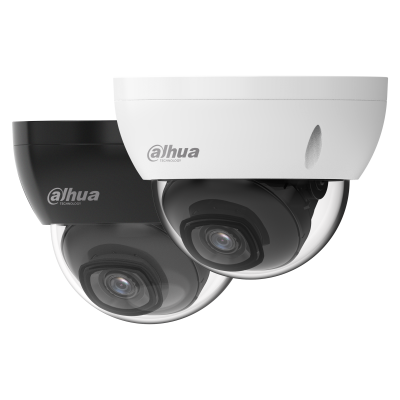

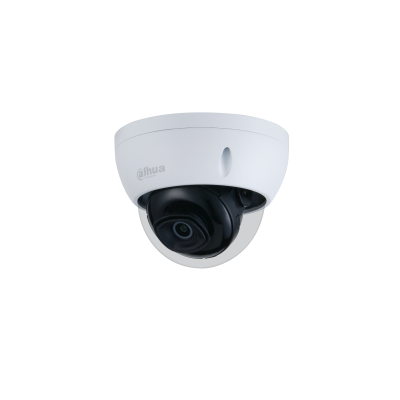

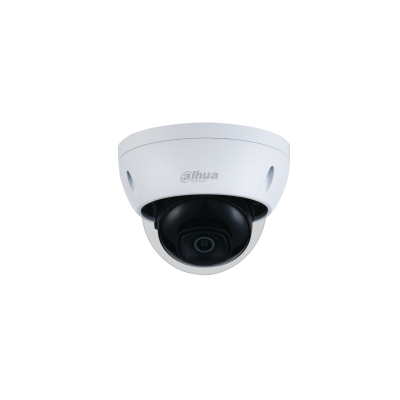

Dahua 2MP IPC-HDBW2231E-S-S2 Lite IR Fixed-focal Dome Network CCTV Camera (30m IR+PoE+WDR+IP67+IK10)

Dahua

Dahua IPC-HDBW2231E-S-S2 2MP Dome Network CCTV Camera (30m IR + PoE + WDR + IP67 + IK10) delivers Full HD clarity, smart motion detection, and a durable dome design for efficient CCTV surveillance.

> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition

> Outputs 2MP (1920 × 1080) @ 25/30 fps

> H.265 codec, high compression rate, ultra-low bit rate

> Built-in IR LED, max IR distance: 30 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire

> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection

> Supports max. 256 GB Micro SD card

> 12V DC/PoE power supply

> IP67, IK10 protection

Rs.9,933.00 Rs.12,800.00

Overview, Performance & Features – Dahua CCTV Camera

The Dahua CCTV Camera model IPC-HDBW2231E-S-S2 offers clear Full HD video and advanced features for reliable security performance.
It uses a 1/2.8” CMOS sensor to deliver 2MP (1920 × 1080) resolution with bright, detailed images even in low light.

Thanks to the H.265+ compression, this camera uses less storage while maintaining excellent quality.
The built-in IR LEDs provide night vision up to 30 meters, and technologies like WDR, 3D NR, and BLC improve visibility in every lighting condition.

It also includes intelligent detection features such as intrusion and tripwire alerts, plus abnormality detection for motion, tampering, and SD card issues.
With PoE or 12V DC power, 256 GB SD card support, and an IP67 / IK10-rated housing, this camera is durable for both indoor and outdoor use.


Technical Highlights

  • Resolution: 2MP (1920 × 1080) @ 25/30 fps

  • Image Sensor: 1/2.8” CMOS, low-light, high-definition

  • Lens: Fixed focal design

  • IR Distance: Up to 30 m

  • Compression: Smart H.265+ / H.264+

  • Detection: Intrusion, tripwire, motion, tampering, network alerts

  • Storage: Micro SD up to 256 GB

  • Power Supply: 12V DC / PoE

  • Protection: IP67 weatherproof, IK10 vandal-proof

  • Functions: WDR, 3D NR, HLC, BLC, rotation mode


Why Choose Dahua CCTV Camera

The Dahua 2MP Dome Network Camera combines smart features, strong durability, and simple installation.
It provides excellent color balance, reliable performance, and effective motion alerts for safer homes and workplaces.

This model is suitable for offices, hotels, warehouses, and residential buildings.
In addition, its AI-based detection and PoE support make setup easier and more efficient for modern security needs.

SKU: IPC-HDBW2231E-S-S2 Category:
Weight 0.5 kg
brands

Dahua

Camera

Image Sensor

1/2.8” 2Megapixel progressive CMOS

Max. Resolution

1920 (H) ×1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.002 Lux @F1.6

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–65°

Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm:
Horizontal 106° × Vertical 56° × Diagonal 126°
3.6 mm:
Horizontal 87° × Vertical 46° × Diagonal 104°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.6 m (2.0 ft)
3.6 mm: 1.2 m (3.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m
(126.6 ft)

15.4 m
(50.5 ft)

7.7 m
(25.3 ft)

3.9 m
(12.8 ft)

3.6 mm

55.2 m
(181.1 ft)

22.1 m
(72.5 ft)

11.0 m
(36.1 ft)

5.5 m
(18.0 ft)

Smart Event

IVS

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:

1920 × 1080 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25fps)

704 × 480 (1 fps-30fps)

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; safety exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec

User/Host

20

Storage

FTP; Micro SD card (support max. 256 G); NAS; SFTP

Browser

IE

Chrome

Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 5.4W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection

IP67, IK10

Structure

Casing

Metal

Dimensions

81 mm × Φ109.9 mm (3.2″ × Φ4.3″)

Net Weight

0.35 kg (0.77lb)

Gross Weight

0.48 kg (1.06lb)
