Dahua 4MP DH-I-NVR5216-16P-I-L 16 Channel 2HDD PoE Network Video Recorder (32MP+8CH AI+384Mbps+Smart H.265+)
Dahua 4MP DH-I-NVR5216-16P-I-L 16 Channel 2HDD PoE Network Video Recorder (32MP+8CH AI+384Mbps+Smart H.265+) - Image 2
Dahua 4MP DH-I-NVR5216-16P-I-L 16 Channel 2HDD PoE Network Video Recorder (32MP+8CH AI+384Mbps+Smart H.265+) - Image 3

Dahua 4MP DH-I-NVR5216-16P-I-L 16 Channel 2HDD PoE Network Video Recorder (32MP+8CH AI+384Mbps+Smart H.265+)

Dahua DH-I-NVR5216-16P-I-L 4MP 16 Channel 2HDD PoE Network Video Recorder offers built-in PoE, AI analytics, and 4K clarity for modern CCTV systems in Sri Lanka.

> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.

> Max. decoding capability: 32 × 1080p@30 fps or 16 × 4MP@30 fps.

> Max. 384/384/384 Mbps incoming/recording/outgoing bandwidth.

> Supports IP cameras with a resolution up to 32 MP.

> Supports AcuPick with up to 16 channels.

> Supports N+M cluster,iSCSI.

> AI by Recorder supports 2-channel face detection and recognition, up to 20 face databases and 20,000 face images; 4-channel perimeter protection; 8-channel SMD Plus.

> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.

> Supports EPTZ, and one-click arming and disarming.

Click to Datasheet of NVR5216-16P-EI

Rs.196,800.00 Rs.206,717.00

Overview, Performance & Features – Dahua NVR CCTV Recorder in Sri Lanka

The Dahua CCTV Recorder in Sri Lanka, model DH-I-NVR5216-16P-I-L, is a 4MP AI-powered Network Video Recorder with PoE, ideal for modern and medium-scale surveillance systems.
It supports multiple compression standards, including Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG, ensuring clear, efficient, and smooth video transmission.

This 16-channel NVR provides a maximum decoding capability of 32 × 1080p @ 30 fps or 16 × 4MP @ 30 fps, maintaining smooth real-time performance.
With 384 Mbps bandwidth for incoming, recording, and outgoing streams, it handles heavy data loads without lag.
It also supports IP cameras up to 32MP resolution, allowing 4K-level clarity for detailed video monitoring in Sri Lanka.

The AI by Recorder enables:

  • 2-channel face detection and recognition

  • Up to 20 face databases with 20,000 image capacity

  • 4-channel perimeter protection

  • 8-channel SMD Plus for accurate motion detection

Additionally, the AI by Camera adds powerful capabilities such as ANPR, metadata analysis, people counting, stereo analytics, and heat mapping.
The AcuPick search feature (up to 16 channels) allows users to locate events quickly.
With 16 built-in PoE ports, it simplifies camera installation by powering devices directly through the network cable.
The recorder also supports EPTZ, iSCSI, and N+M clustering, ensuring scalability and enterprise-level reliability.

Technical Highlights

  • Resolution: 4MP recording with up to 32MP camera support

  • Channels: 16-channel IP input

  • PoE Ports: 16 built-in PoE ports for plug-and-play setup

  • Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG

  • Decoding Capability: 32 × 1080p @ 30 fps or 16 × 4MP @ 30 fps

  • Bandwidth: 384 Mbps (incoming / recording / outgoing)

  • AI by Recorder:

    • 2CH Face Detection & Recognition

    • 20 Databases (20,000 Images)

    • 4CH Perimeter Protection

    • 8CH SMD Plus

  • AI by Camera: ANPR, Face Detection, People Counting, Metadata, Stereo Analysis, Heat Map

  • Smart Features: AcuPick (16 Channels), EPTZ, One-click Arming/Disarming

  • Storage: Dual HDD bays

  • Network Support: iSCSI, N+M Cluster

  • Form Factor: 1U rackmount design

  • Series: Dahua 4MP AI PoE NVR 4K Series

Why Choose Dahua NVR CCTV Recorder in Sri Lanka

The Dahua DH-I-NVR5216-16P-I-L 4MP CCTV Recorder in Sri Lanka combines advanced AI capabilities with plug-and-play convenience.
Its PoE connectivity reduces setup complexity, while Smart H.265+ compression cuts bandwidth and storage use by up to 70%.
The built-in AI functions, including face recognition, SMD Plus, and perimeter protection, provide intelligent, reliable security automation.

This NVR is ideal for hotels, schools, offices, factories, and retail environments across Sri Lanka that require long-term video recording and smart analytics.
With AcuPick search and one-click arming, security operators can manage events and respond efficiently to incidents.

SKU: DH-I-NVR5216-16P-I-L Category:
Weight 4 kg

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

AI

AI by Recorder

Face detection; face recognition; perimeter protection; SMD Plus

AI by Camera

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map

AcuPick AI by Camera + Recorder

Max. 16-channel, 1 combined event per channel/s

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

4 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

All channels (16 targets/s)

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

16 channels

Face Recognition

Face Database Capacity

Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

Face Recognition Performance of AI by Recorder (Number of Channels)

1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s

2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

16 channels

SMD Plus

SMD Plus by Recorder

8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

All channels (32 targets/s)

Video Metadata

Metadata Performance of AI by Camera (Number of Channels)

8 channels

Human Attributes

Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella

Motor Vehicle Attributes

License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.

Non-motor Vehicle Attributes

Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

All channels (8 targets/s)

License Plate Database Capacity

1. Create up to 20,000 plate numbers.

2. Blocklist and allowlist

Audio and Video

Access Channel

16 channels

Network Bandwidth

AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing

AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF

Decoding Capability

AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps

AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps

Video Output

1 VGA, 1 HDMI

VGA:1920 × 1080, 1280 × 1024, 1280 × 720

HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

Heterogeneous video source output for HDMI and VGA

Multi-screen Display

Main screen: 1/4/8/9/16

Sub screen: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

General, motion detection; intelligent; alarm; POS

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Anomaly Alarm

Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception

Intelligent Alarm

Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email

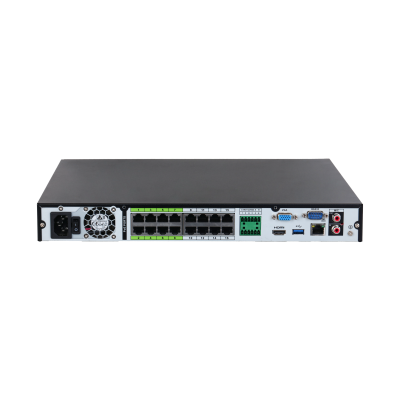

Port

Audio Input

1-channel RCA

Audio Output

1-channel RCA

Alarm Input

4 channels

Alarm Output

2 channels

Disk Interface

2 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.

RS-232

1

RS-485

1

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

PoE Port

16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE

General

Power Supply

100–240 VAC, 47-63 Hz

Power Consumption

Total output of NVR is ≤ 10W (without HDD)

Total output power of PoE is 130W, the maximum output power of a single port is 25.5W

Net Weight

2.66 kg (5.86 lb)

Gross Weight

3.82 kg (8.42 lb)

Product Dimensions

375.0 mm × 329.3 mm x 53.0mm (14.76″ × 12.96″ × 2.09″) (W × D × H)

Packaging Dimensions

451.0 mm × 147.0 mm × 425.0 mm (17.76″ × 5.79″ × 16.73″) (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Installation

Rack or desktop

Certifications

FCC: 47 CFR FCC Part15, SubpartB, Class A

CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014

CE-LVD: EN 62368-1:2014
