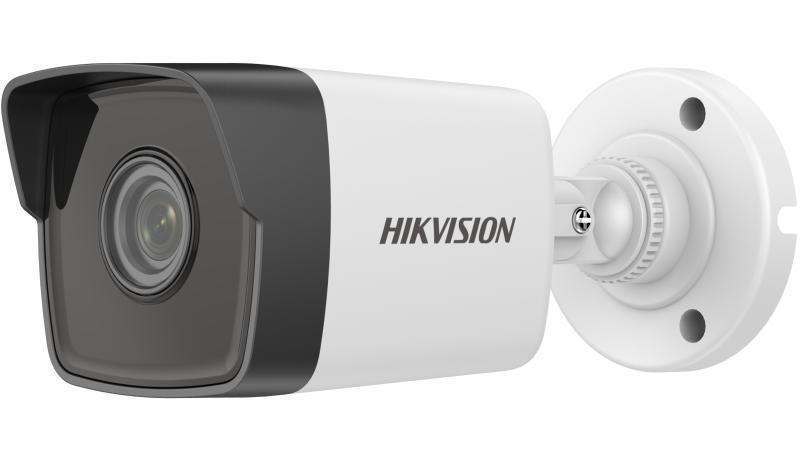

Hikvision 2MP Audio Bullet Camera DS-2CD1023G0-IUF (2MP+30m IR+Audio+IP67)

The Hikvision 2MP Audio Bullet CCTV Camera DS-2CD1023G0-IUF (2MP+30m IR+Audio+IP67) is a compact yet powerful security camera designed for both residential and commercial surveillance.

With 1920 × 1080 Full HD resolution, it delivers sharp and detailed video, while DWDR (Digital Wide Dynamic Range) ensures clear imaging against challenging backlight. The camera features EXIR 2.0 infrared technology with up to 30m IR distance, guaranteeing high-quality images even in total darkness.

Equipped with a built-in microphone, it provides synchronized video and audio monitoring. It also supports H.265+ compression, significantly reducing storage and bandwidth requirements. The camera is IP67-rated, making it dust- and water-resistant for outdoor durability. Additionally, it supports microSD card storage up to 256 GB, allowing local backup options.

Key Features:

• 2MP Full HD Fixed Bullet CCTV Camera (1920 × 1080 resolution)

• Built-in microphone for real-time audio monitoring

• Smart H.265+ compression for efficient storage

• EXIR 2.0 with 30m IR range for enhanced night vision

• DWDR technology for clear images in backlight conditions

• Supports microSD storage up to 256 GB

• IP67-rated for outdoor weather resistance

_____________________________________________________________________________________
Camera

• Image Sensor : 1/2.7″ Progressive Scan CMOS
• Max. Resolution : 1920 × 1080
• Min. Illumination  :Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time  :1/3 s to 1/100, 000 s
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

• Focal Length & FOV

  2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°

  4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°

• Lens Mount : M12
• Iris Type : Fixed
• Aperture : F2.0

Illuminator

• Supplement Light Type : IR
• Supplement Light Range : Up to 30 m
• Smart Supplement Light : Yes
• IR Wavelength : 850 nm

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main Stream: H.265/H.264/H.264+/H.265+

  Sub-Stream: H.265/H.264/MJPEG

• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• Region Of Interest (ROI) : 1 fixed region for main stream

Audio

• Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate : 8 kHz/16 kHz
• Environment Noise Filtering : Yes

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View : Up to 6 channels
• API  : Open Network Video Interface, ISAPI
• User/Host : Up to 32 users. 3 levels: administrator, operator and user
• Network Storage : MicroSD/SDHC/SDXC card (256 GB) local storage
• Clienti : VMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night Switch : Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR) : Digital WDR
• SNR : ≥ 52 dB
• Image Enhancement : BLC, 3D DNR

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD card, up to 256 GB
• Built-In Microphone ; Yes
• Reset Key : Yes

Event

• Basic Event : Motion detection, video tampering alarm, exception
• Linkage : Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Dimension : 177.6 mm × 66.2 mm × 67.8 mm (7.0″ × 2.6″ × 2.7″)
• Package Dimension : 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• Weight : Approx. 270 g (0.6 lb.)
• With Package Weight : Approx. 490 g (1.1 lb.)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Languag : eEnglish, Ukrainian
• General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC : FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety : UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment : CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection : IP67 (IEC 60529-2013)
