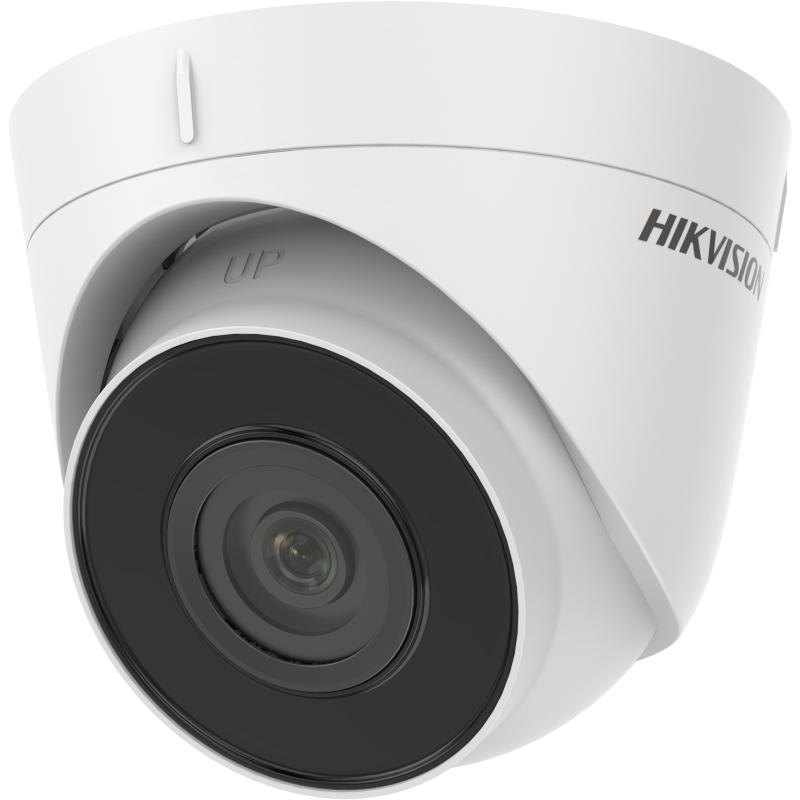

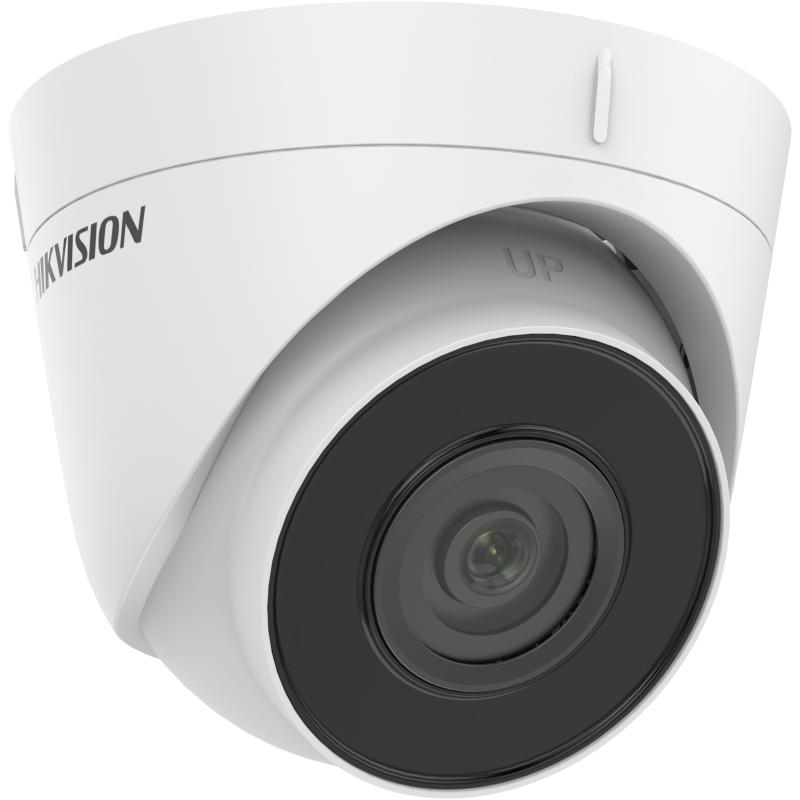

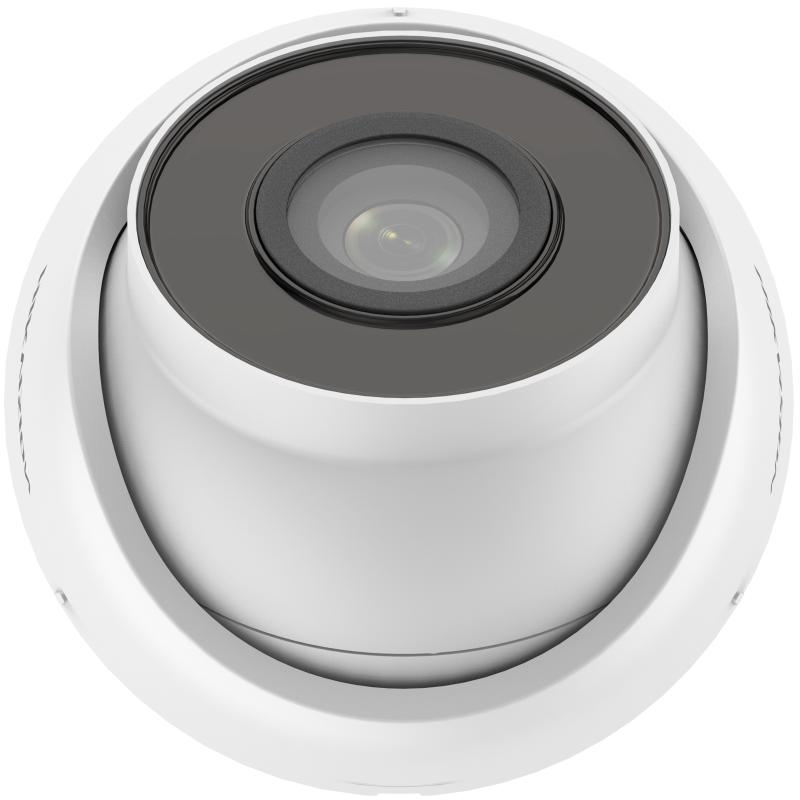

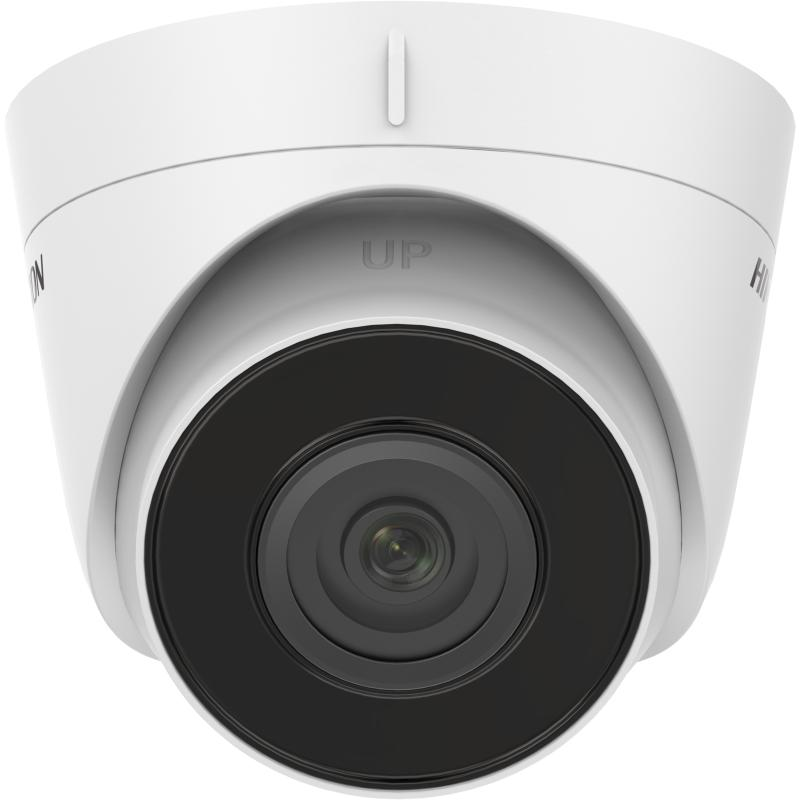

Hikvision 2MP Audio Turret Camera DS-2CD1323G0-IUF (2MP+30m IR+Audio+SD Card+H.265+IP67)

The Hikvision 2MP Audio Turret Camera DS-2CD1323G0-IUF (2MP+30m IR+Audio+SD Card+H.265+IP67) delivers clear and efficient surveillance with advanced imaging and audio features.

It provides Full HD 2MP resolution with DWDR technology, ensuring clear imaging even in challenging light conditions. With EXIR 2.0 infrared technology, the camera achieves up to 30m night vision with superior clarity.

A built-in microphone enables real-time audio security, while onboard storage supports up to 256 GB SD card, allowing reliable local recording. The camera also uses H.265+ compression, reducing bandwidth and storage needs while maintaining high-quality video.

Its IP67-rated housing makes it water and dust resistant, ideal for both indoor and outdoor installations.

Key Features:

• 2MP Fixed Turret Network Camera

• Built-in microphone for real-time audio monitoring

• EXIR 2.0 IR technology with 30m night vision

• DWDR for clear images against backlight

• H.265+ compression for storage efficiency

• Supports up to 256GB SD card storage

• IP67 weatherproof protection for outdoor durability

_____________________________________________________________________________________
Camera

• Image Sensor : 1/2.7″ Progressive Scan CMOS
• Max. Resolution : 1920 × 1080
• Min. Illumination : Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time : 1/3 s to 1/100, 000 s
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Focal Length & FOV

  2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°

  4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°

• Lens Mount : M12
• Iris Type : Fixed
• Aperture : F2.0

Illuminator

• Supplement Light Type : IR
• Supplement Light Range : Up to 30 m
• Smart Supplement Light : Yes
• IR Wavelength : 850 nm

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main Stream: H.265/H.264/H.264+/H.265+

  Sub-Stream: H.265/H.264/MJPEG

• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• Region Of Interest (ROI) : 1 fixed region for main stream

Audio

• Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate : 8 kHz/16 kHz
• Environment Noise Filtering : Yes

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface, ISAPI
• User/Host : Up to 32 users. 3 levels: administrator, operator and user
• Network Storage : MicroSD/SDHC/SDXC card (256 GB) local storage
• Clienti : VMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night Switch : Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR) : Digital WDR
• SNR : ≥ 52 dB
• Image Enhancement : BLC, 3D DNR

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD card, up to 256 GB
• Built-In Microphone : Yes
• Reset Key : Yes

Event

• Basic Event : Motion detection, video tampering alarm, exception
• Linkage : Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Dimension : Ø110 mm × 85.3 mm (Ø4.3″ × 3.4″)
• Package Dimension : 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
• Weight : Approx. 320 g (0.7 lb.)
• With Package Weight : Approx. 556 g (1.2 lb.)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Language : English, Ukrainian
• General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC : FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety : UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment : CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection : IP67 (IEC 60529-2013)
