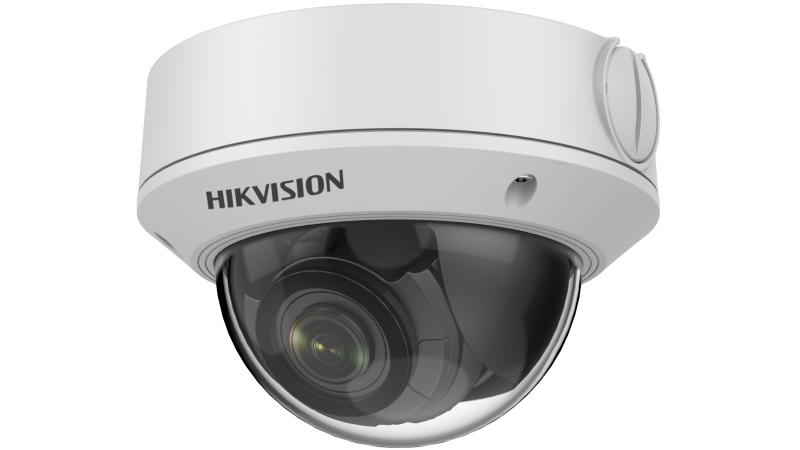

Hikvision 2MP Varifocal Dome Camera DS-2CD1723G0-IZ (2MP+30m IR+IK10+PoE)

Clear 2MP Imaging

The DS-2CD1723G0-IZ delivers 1920 × 1080 Full HD resolution, ensuring sharp and detailed images. With DWDR technology, it handles strong backlighting effectively for balanced video output.

Motorized Varifocal Lens

Equipped with a 2.8–12 mm motorized varifocal lens, the camera allows flexible zoom and focus adjustments, making installation and monitoring much easier.

Reliable Night Vision

Thanks to EXIR 2.0 infrared technology, the camera offers up to 30m IR distance for clear imaging even in complete darkness.

Rugged & Vandal-Proof Design

With its IP67 weatherproof rating and IK10 vandal-resistant housing, the camera is built to withstand outdoor conditions and potential tampering.

Flexible Storage Options

The DS-2CD1723G0-IZ supports on-board microSD storage up to 256 GB, providing local backup even without an NVR.

Key Features

• 2MP Full HD Varifocal Dome Camera (1920 × 1080)

• 2.8–12 mm motorized varifocal lens

• 30m EXIR 2.0 infrared night vision

• H.265+ compression for bandwidth and storage savings

• DWDR imaging for challenging light conditions

• Supports microSD storage up to 256 GB

• IP67 weatherproof and IK10 vandal-proof housing

_____________________________________________________________________________________
Camera

• Image Sensor : 1/2.7″ Progressive Scan CMOS
• Max. Resolution : 1920 × 1080
• Min. Illumination : Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed : 1/3 s to 1/100,000 s
• Wide Dynamic Range : Digital WDR
• Day & Night : IR Cut Filter
• Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°

Lens

• Lens Type : Varifocal Lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV : 2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42°
• Lens Mount : Ø14
• Iris Type : Fixed
• Aperture : F1.6

Illuminator

• IR Wavelength : 850 nm
• IR Range : Up to 30 m

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720),

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate ; 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• Region Of Interest (ROI) : 1 fixed region for main stream

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface, ISAPI
• User/Host ; Up to 32 users. 3 levels: administrator, operator and user
• Clienti : VMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch : Auto, Schedule, Day, Night
• Image Enhancement : BLC, 3D DNR

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD card, up to 256 GB
• Reset Key : Yes

Event

• Basic Event : Motion detection, video tampering alarm, exception

General

• Power

  12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug

  PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.32 A, max. 11.5 W

• Camera Dimension : Ø141 mm × 99.9 mm (5.6″ × 3.9″)
• Package Dimension : 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1 “)
• Camera Weight : Approx. 820 g (1.8 lb.)
• With Package Weight : Approx. 1200 g (2.6 lb.)
• Storage Conditions : -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions : -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Language : English, Ukrainian
• General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• OtherIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
