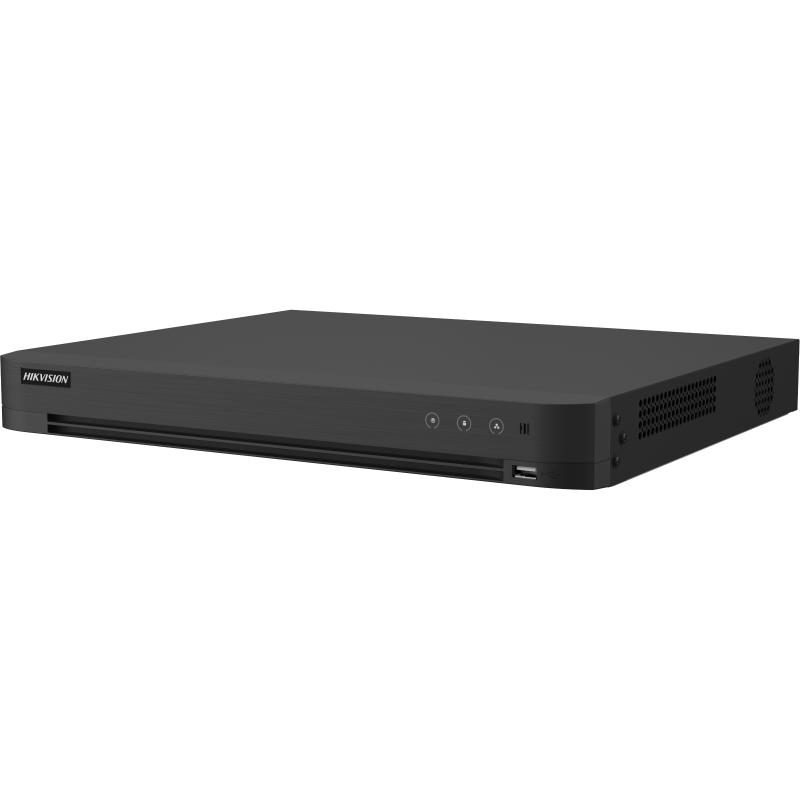

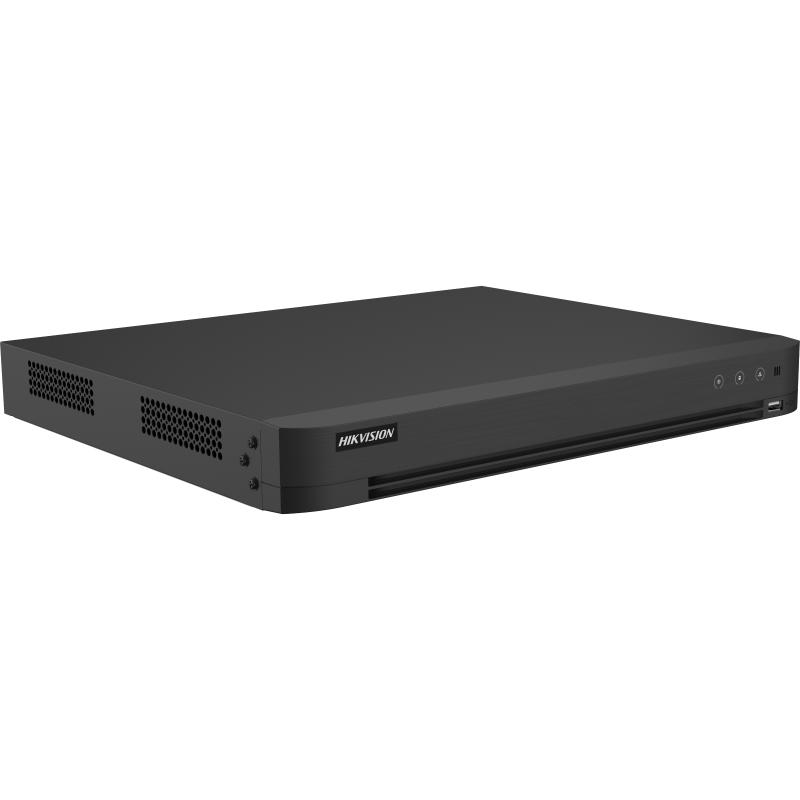

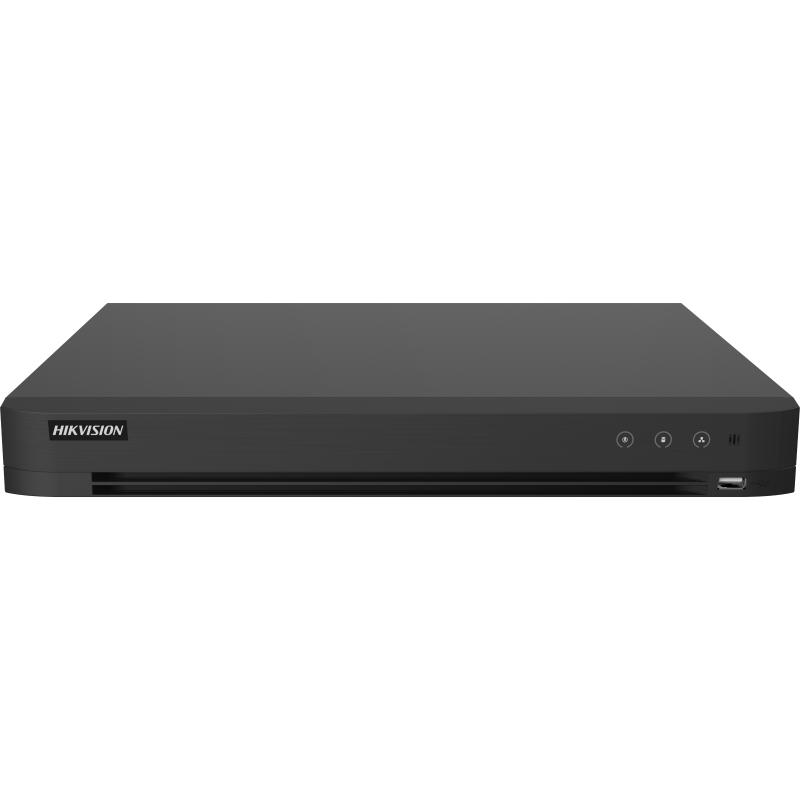

Hikvision 32 Channel AcuSense DVR iDS-7232HQHI-M2/XT (5MP/4K+32CH+Facial Recognition+Perimeter Protection+AcuSearch+Two-Way Audio+H.265 Pro+)

The Hikvision 32 Channel AcuSense DVR iDS-7232HQHI-M2/XT (5MP/4K+32CH+Facial Recognition+Perimeter Protection+AcuSearch+Two-Way Audio+H.265 Pro+) is a powerful AI-enhanced DVR built for large surveillance networks.

This DVR supports 32 analog channels with 5MP Lite/3K recording @ 12 fps and allows up to 40 IP cameras (up to 6MP each). It provides a maximum decoding ability of 24×1080p @ 30 fps, making it suitable for high-density environments.

Equipped with deep learning technology, it enables:

• 4-channel facial recognition for advanced identity verification

• 8-channel perimeter protection for intelligent intrusion detection

• 8-channel AcuSearch for fast event-based video retrieval

It also supports motion detection on all channels and HDTVI two-way audio, ensuring interactive monitoring.

The DVR’s 5-in-1 hybrid input (HDTVI/AHD/CVI/CVBS/IP) ensures compatibility with diverse systems. H.265 Pro+ compression reduces storage and bandwidth needs without sacrificing video quality.

Key Features:

• 32-channel AcuSense DVR (5MP/3K Lite @ 12 fps)

• Supports up to 40 IP cameras (up to 6MP each)

• 4-ch facial recognition and 8-ch perimeter protection

• 8-ch AcuSearch technology for smart video retrieval

• Motion detection on all channels

• HDTVI two-way audio supported

• 24×1080p@30fps decoding ability

• 5-in-1 input: HDTVI/AHD/CVI/CVBS/IP

• H.265 Pro+ compression for efficient storage

_____________________________________________________________________________________
Facial Recognition

• Face Picture Library

  Up to 16 face picture libraries ;

  HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

• Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

  it can classify human and vehicle, and extremely reduce false alarms caused by objects

  like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle Analysis : Up to 8-ch (advanced model)

Facial Detection

• Facial Detection and Capture

  Face picture detection, face picture search；

  4-ch face picture capture

Video and Audio

• IP Video Input : 8-ch (up to 40-ch), each up to 6 MP resolution,
• Analog Video Input

  32-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output

  1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

  HDMI/VGA simultaneous output

• CVBS Input : PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous playback : 16-ch
• HDTVI Input : 3K(2960 x 1665)@25/20fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input : 5 MP(2560 × 1944)@20fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDCVI Input : 3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)，32-ch via coaxial cable
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Recording

• Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate : 32 Kbps to 10 Mbps
• Dual-stream : Support main stream or sub stream
• Stream Type : Video, Video & Audio
• Audio Compression : G.711u
• Audio Bitrate : 64 Kbps

Decoding

• Decoding Capability : up to 24-ch 1080P@30fps

Network

• Total Bandwidth : 256Mbps
• Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
• Remote Connection : 128
• Network Interface

  1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA : 2 SATA interfaces
• Capacity : Up to 12 TB capacity for each disk
• Serial Interface : RS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0

  Rear panel: 2 × USB 3.0

• Alarm In/Out : N/A (optional to support)

General

• Power Supply : 12 VDC, 5 A
• Consumption : ≤ 60 W
• Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
• Weight : ≤ 2.1 kg (4.6 lb)
