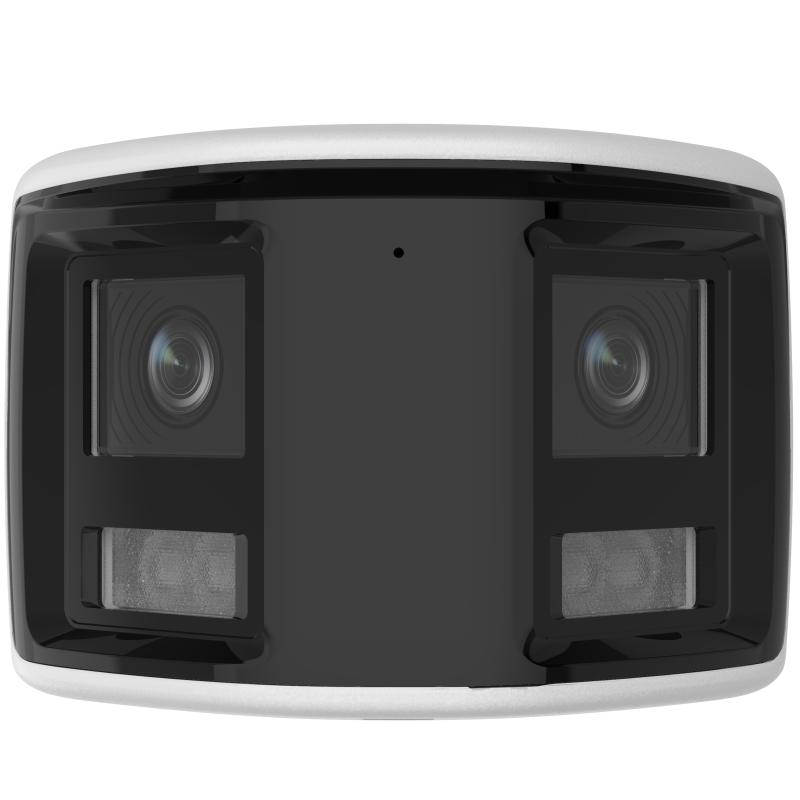

Hikvision 3K ColorVu Dual-Lens Bullet Camera DS-2CE12KF3TP-DLS (3K+180° View+Audio+40m IR/White Light+WDR)

The Hikvision 3K ColorVu Dual-Lens Bullet Camera DS-2CE12KF3TP-DLS (5MP/3K+180° View+Audio+40m IR+Color+WDR) delivers panoramic wide-angle surveillance with brilliant color images day and night.

Its dual-lens design with built-in stitching algorithm provides a seamless 180-degree field of view, reducing blind spots. With a 3K resolution (3328 × 1504) and F1.0 aperture, it captures bright and detailed images even in very low-light conditions.

Featuring Smart-Hybrid Light technology, the camera automatically adapts between IR night vision (40m) and white light illumination (40m) for clear full-color monitoring.

The built-in microphone with audio over coaxial cable enables real-time sound recording for enhanced security monitoring. With 130 dB true WDR and 3D DNR, the camera provides sharp and clear images even in high-contrast lighting conditions.

Its IP67-rated weatherproof housing ensures durability in outdoor environments, making it a reliable solution for perimeter security, parking lots, and wide-area surveillance.

Key Features:

• 3K resolution (3328 × 1504) with 5MP/3K image quality

• Dual-lens panoramic design with 180° wide-angle coverage

• 24/7 ColorVu imaging with F1.0 aperture lens

• Smart-Hybrid Light: up to 40m IR + 40m white light night vision

• Built-in microphone with audio transmission over coaxial cable

• 130 dB True WDR for clear images under strong backlight

• 3D DNR for noise-free night images

• Weatherproof IP67 housing for outdoor use

_____________________________________________________________________________________
Camera

• Max. Resolution3328 (H) × 1504 (V)
• Shutter Time1/20 s to 1/50,000 s
• Image Sensor3K CMOS
• Slow ShutterMax. 16 times
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°

Lens

• Lens Type2.8 mm fixed focal lens
• Focal Length & FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
• Lens MountM12

Illuminator

• Supplement Light RangeIR: Up to 40 m,White Light: Up to 40 m
• Smart Supplement LightYes


• Frame Rate3K @20 dual
• Privacy Mask4 programmable privacy masks
• Wide Dynamic Range (WDR)≥130 dB
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Day/Night ModeAuto
• White BalanceAuto/Manual
• Image EnhancementWDR;BLC;HLC;Global
• Noise Reduction3D DNR
• Image SettingsBrightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC

Interface

• Video Output1 HD analog output
• Built-in MicrophoneYes

Event

• Motion Detection4 programmable motion areas

General

• Power

  12 VDC ± 25%, max. 8.9 W

  *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

• LanguageEnglish
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
• MaterialFront cover: Metal, Main body: Plastic
• CommunicationHIKVISION-C
• Dimension234.46 mm × 103.58 mm × 76.01 mm (9.23″ × 4.08″ × 2.99″)
• WeightApprox. 630 g (1.39 lb.)

Approval

• ProtectionIP67
