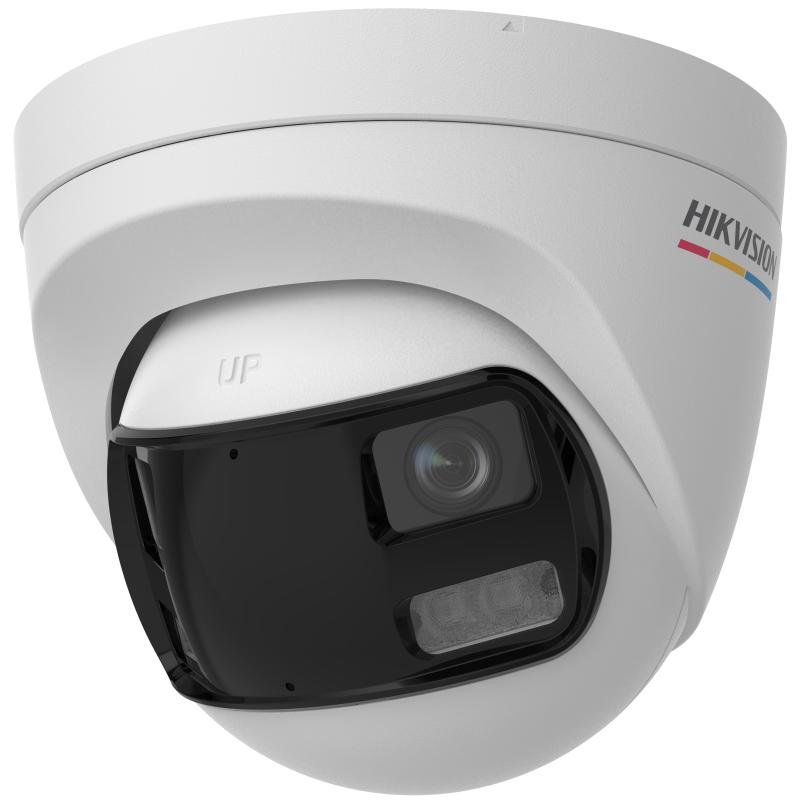

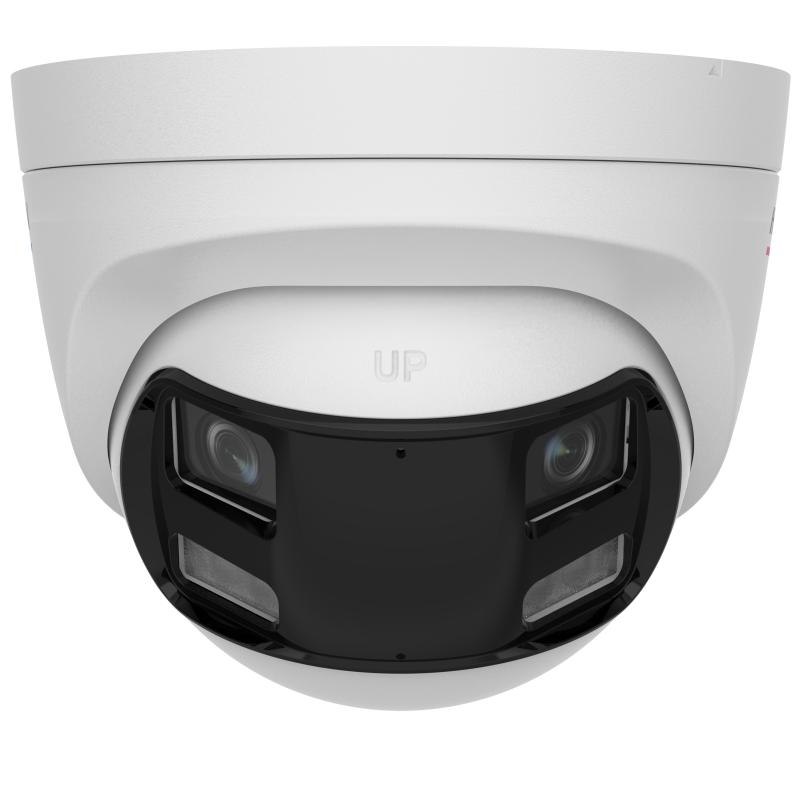

Hikvision 3K ColorVu Dual-Lens Turret Camera DS-2CE72KF3TP-DLS (5MP/3K+180° View+40m IR+Color+Audio+WDR+IP67)

The Hikvision 3K ColorVu Dual-Lens Turret Camera DS-2CE72KF3TP-DLS (5MP/3K+180° View+40m IR+Color+Audio+WDR+IP67) is designed for panoramic coverage with vibrant full-color imaging day and night.

Its dual-lens design with a built-in stitching algorithm provides a seamless 180-degree wide-angle image, reducing blind spots in critical surveillance areas. With a 3K resolution (3328 × 1504), it delivers sharp and detailed video.

Equipped with ColorVu technology and Smart Hybrid Light, the camera ensures 24/7 full-color monitoring. It can switch between IR and white light for up to 40 meters, optimizing visibility in low-light conditions.

The 130 dB true WDR and 3D DNR technologies provide clear imaging in high-contrast or noisy environments. The built-in microphone supports high-quality audio recording over coaxial cable, enhancing situational awareness.

Its IP67-rated housing makes it resistant to water and dust, ensuring durability for outdoor installation.

Key Features:

• 5MP/3K dual-lens turret camera with panoramic 180° field of view

• ColorVu technology with Smart Hybrid Light for 24/7 color imaging

• 40m IR & white light range for night monitoring

• 130 dB WDR + 3D DNR for clear, sharp images

• Built-in microphone with audio over coaxial cable

• Water & dust resistant (IP67) for reliable outdoor use

_____________________________________________________________________________________
Camera

• Max. Resolution : 3328 (H) × 1504 (V)
• Shutter Time : 1/20 s to 1/50,000 s
• Image Sensor : 3K CMOS
• Slow Shutter : Max. 16 times
• Min. Illumination : 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens

• Lens Type : 2.8 mm fixed focal lens
• Focal Length & FOV : 2.8 mm, horizontal FOV: 180°, vertical FOV: 75°
• Lens Mount : M12

Illuminator

• Supplement Light Range : IR: Up to 40 m,White Light: Up to 40 m
• Smart Supplement Light : Yes


• Frame Rate : 3K @20 dual
• Privacy Mask : 4 programmable privacy masks
• Wide Dynamic Range (WDR) : ≥130 dB
• Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
• Day/Night Mode : Auto
• White Balance : Auto/Manual
• Image Enhancement : WDR;BLC;HLC;Global
• Noise Reduction : 3D DNR
• Image Settings : Brightness;Contrast;Smart IR;Sharpness;Anti-Banding;AGC

Interface

• Video Output : 1 HD analog output
• Built-in Microphone : Yes

Event

• Motion Detection : 4 programmable motion areas

General

• Power

  12V DC ± 25%, max. 8.9 W

  *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

• Language : English
• Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
• Material : Main body: Metal, Enclosure: Plastic
• Communication : HIKVISION-C
• Dimension : Ø130.11 mm × 109.2 mm (Ø5.12″ × 4.3″)
• Weight : Approx. 570 g (1.26 lb.)

Approval

• Protection : IP67
