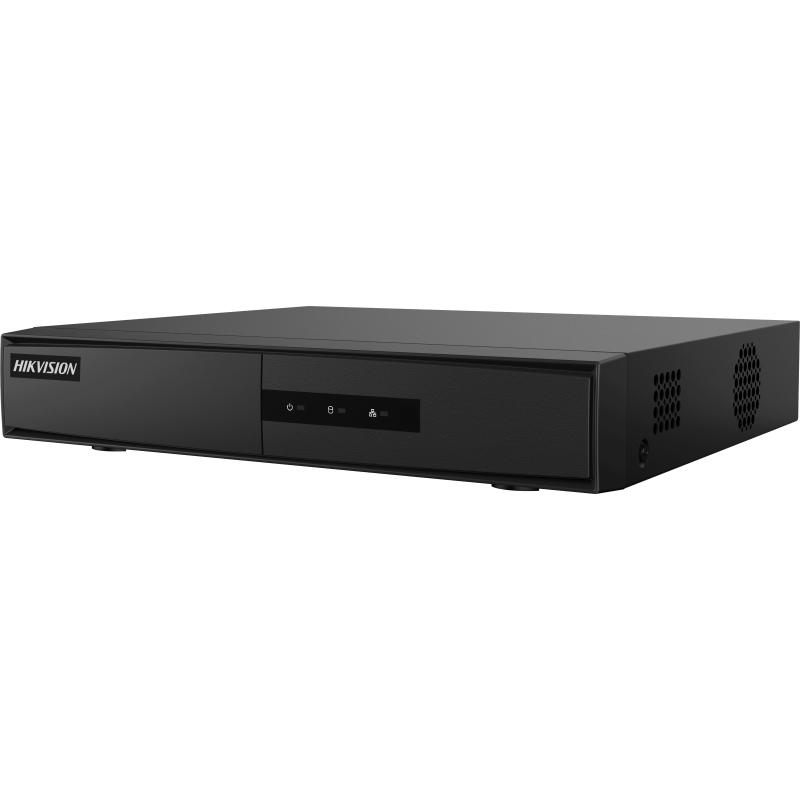

Hikvision 4 Channel NVR DS-7104NI-Q1/M (2MP/1080p+40Mbps Bandwidth+H.265+ Compression)

The Hikvision 4 Channel NVR DS-7104NI-Q1/M (2MP/1080p+H.265+ Compression+40Mbps Bandwidth) is a compact and efficient recorder for small IP surveillance installations.

It supports up to 4 IP camera inputs, making it ideal for homes, small shops, and offices. With decoding capacity of up to 4 channels at 1080p resolution, it ensures smooth and clear video playback.

The NVR features H.265+/H.265/H.264+/H.264 compression formats, enabling significant storage and bandwidth savings while maintaining excellent video quality.

With 40 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth, it provides reliable performance for recording and remote monitoring. The unit also supports HDMI and VGA simultaneous outputs, allowing flexible display options.

Its Mini 1U design makes it space-saving, easy to install, and well-suited for entry-level surveillance systems.

Key Features:

• 4-channel NVR with 2MP/1080p recording

• Supports up to 4 IP cameras

• Decoding capacity: up to 4-ch @ 1080p

• H.265+/H.265/H.264+/H.264 compression formats

• 40 Mbps incoming bandwidth / 60 Mbps outgoing bandwidth

• HDMI and VGA simultaneous output

• Compact Mini 1U design

_____________________________________________________________________________________
Video and Audio

• IP Video Input

  4-ch

  Up to 6 MP resolution

• Incoming Bandwidth : 40 Mbps
• Outgoing Bandwidth : 60 Mbps
• HDMI Output : 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output : 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA simultaneous output

Decoding

• Decoding Format : H.265+/H.265/ H.264+/H.264
• Recording Resolution : 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback : 4-ch
• Decoding Capability : 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream Type : Video, Video & Audio

Network

• Remote Connection : 16
• Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
• Network Interface : 1, RJ-45 10/100Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA : 1 SATA interface
• Capacity : Up to 6TB capacity for each disk
• Alarm In/Out : N/A
• USB Interface : Rear panel: 2 × USB 2.0

General

• Power Supply : 12 VDC, 1.5 A
• Consumption : ≤ 10 W
• Working Temperature : -10 to +55º C (+14 to +131º F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 265 × 223 × 48 mm (10.4″ × 8.8″ × 1.9″)
• Weight : ≤ 1 kg (2.2 lb)

Certification

• CE : EN50130-4, EN 61000-3-2,EN 61000-3-3
