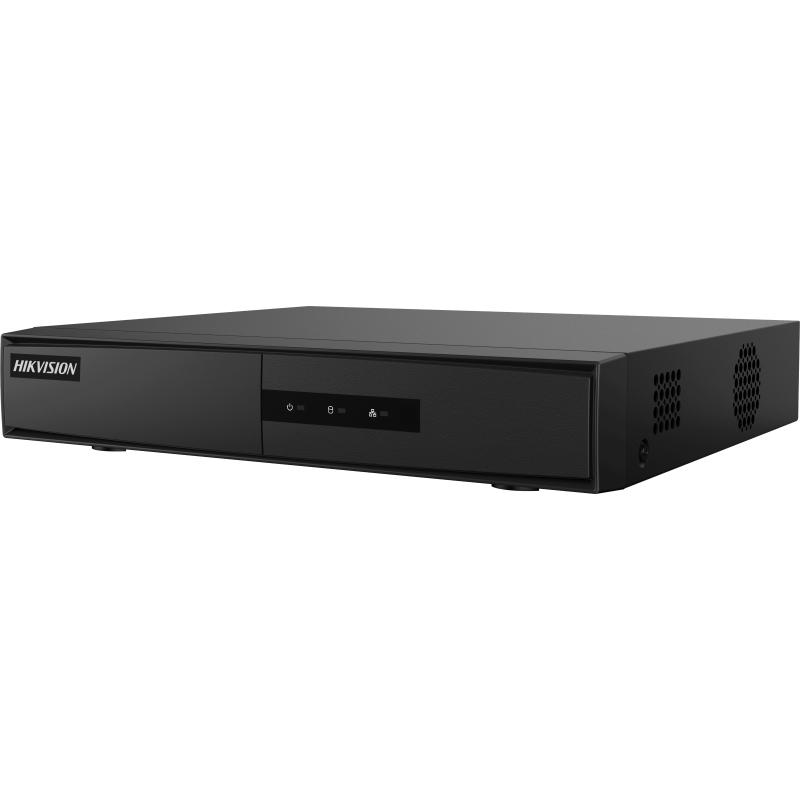

Hikvision 4 Channel PoE NVR DS-7104NI-Q1/4P/M (2MP/1080p+PoE+40Mbps Bandwidth+H.265+ Compression)

The Hikvision 4 Channel PoE NVR DS-7104NI-Q1/4P/M (2MP/1080p+PoE+H.265+ Compression+40Mbps Bandwidth) is designed for small-scale IP camera systems that need easy installation and efficient recording.

It supports up to 4 IP cameras and comes with 4 built-in PoE ports, enabling plug-and-play setup without requiring an external PoE switch. Each camera can be connected and powered directly through the NVR, making wiring simple and cost-effective.

With decoding capability of up to 4 channels at 1080p, it ensures smooth video playback. The unit supports H.265+/H.265/H.264+/H.264 compression formats, reducing storage and bandwidth consumption while preserving video quality.

The NVR offers 40 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth, ensuring reliable recording and remote streaming performance. Dual HDMI and VGA outputs allow simultaneous display on multiple monitors. Its Mini 1U form factor makes it compact and ideal for home, retail, or office use.

Key Features:

• 4-channel PoE NVR with 2MP/1080p recording

• Built-in 4 PoE ports for direct plug-and-play installation

• Supports up to 4 IP cameras

• Decoding capacity: up to 4-ch @ 1080p

• H.265+/H.265/H.264+/H.264 video compression

• 40 Mbps incoming bandwidth / 60 Mbps outgoing bandwidth

• HDMI and VGA simultaneous output

• Compact Mini 1U design for small installations

_____________________________________________________________________________________

Video and Audio

• IP Video Input

  4-ch

  Up to 6 MP resolution

• Incoming Bandwidth : 40 Mbps
• Outgoing Bandwidth : 60 Mbps
• HDMI Output : 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output : 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA simultaneous output

Decoding

• Decoding Format : H.265+/H.265/ H.264+/H.264
• Recording Resolution : 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback : 4-ch
• Decoding Capability : 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream Type : Video, Video & Audio

Network

• Remote Connection : 16
• Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
• Network Interface : 1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

• Interface : 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power : ≤ 36 W
• Standard : IEEE 802.3 af/at

Auxiliary Interface

• SATA : 1 SATA interface
• Capacity : Up to 6TB capacity for each disk
• Alarm In/Out : N/A
• USB Interface : Rear panel: 2 × USB 2.0

General

• Power Supply : 48 VDC, 1 A
• Consumption : ≤ 10 W
• Working Temperature : -10 to +55º C (+14 to +131º F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 265 × 223 × 48 mm (10.4″ × 8.8″ × 1.9″)
• Weight : ≤ 1 kg (2.2 lb)

Certification

• CE : EN50130-4, EN 61000-3-2,EN 61000-3-3
