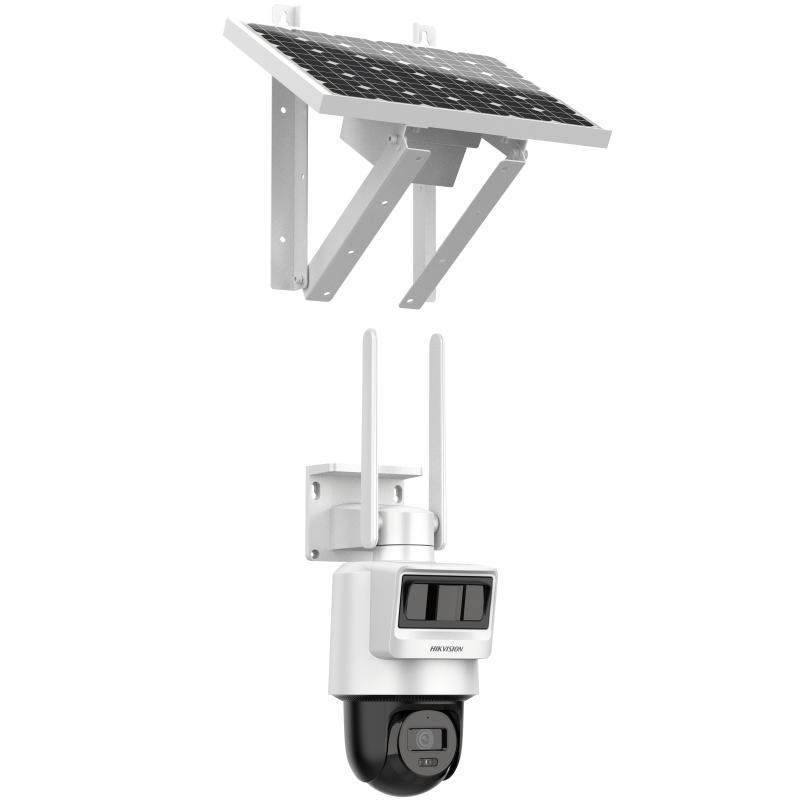

Hikvision 4MP Color Solar PT 4G Camera DS-2DE2C400IWG-K/4G/C05S10 (4MP+Solar+4G LTE+PIR/Radar Detection+Audio+IP66)

The Hikvision 4MP Color Solar PT 4G Camera DS-2DE2C400IWG-K/4G/C05S10 (4MP+Solar+4G LTE+PIR/Radar Detection+Audio+IP66) is an advanced off-grid surveillance solution designed for remote areas without fixed power or internet.

This system combines solar power and 4G LTE transmission, providing reliable monitoring even in isolated locations such as farms, construction sites, and highways. It delivers high-quality 4MP resolution imaging with full-color capabilities for 24/7 monitoring.

Equipped with dual detection sensors (PIR and radar), it achieves higher motion detection accuracy by minimizing false alarms. The camera also features a built-in microphone and speaker for two-way audio communication and audio alarms.

With onboard storage support up to 512GB via SD card slot, it can record locally without relying on NVRs. The IP66-rated weatherproof design ensures durability in harsh outdoor environments. Radar angle adjustment (0°, 10°, 20°) provides flexible detection coverage.

Key Features:

• 4MP Color PT camera with solar-powered setup

• 4G LTE connectivity for remote monitoring

• Dual detection: PIR + radar for higher accuracy

• Two-way audio with built-in mic and speaker

• Onboard storage up to 512GB (SD card slot)

• Adjustable radar angle: 0°, 10°, 20°

• Weatherproof IP66 protection for outdoor use

_____________________________________________________________________________________
Camera

• Image Sensor : 1/2.7″ Progressive Scan CMOS
• Max. Resolution : 2560 × 1440
• Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time : 1/3 s to 1/100,000 s
• Day & Night : IR cut filter

Lens

• Lens Type : Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°

  4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°

• Lens Mount : M12
• Iris Type : Fixed
• Aperture : F1.6

PTZ

• Movement Range (Pan) : 0° to 340°
• Movement Range (Tilt) : 0° to 80°
• Pan Speed : Up to 25°/s
• Tilt Speed : Up to 25°/s

• DORI
• DORI

  2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m

  4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m

Illuminator

• Supplement Light Type : IR
• Supplement Light Range : Up to 30 m
• Smart Supplement Light : Yes
• IR Wavelength : 850 nm

Video

• Main Stream

  50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile,Main Profile,High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR,VBR
• Region of Interest (ROI) : 1 fixed region for main stream

Audio

• Audio Type : Mono sound
• Audio Sampling Rate : 8 kHz/16 kHz
• Environment Noise Filtering : Yes
• Audio Compression : G.722.1/G.711/MP2L2/PCM/G.726/AAC-LC
• Audio Bit Rate : 16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)

Network

• API : ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
• Security : Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live View : Up to 6 channels
• Protocols : TCP/IP, DHCP, IPv4
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• Client : Hik-Connect,HikCentral Professional, Hik-Partner Pro
• Web Browser : Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+

• Mobile Communication
• Standard : LTE-FDD,LTE-TDD,UMTS
• Frequency

  EU:

  LTE-FDD: B1/3/5/7/8/20/28

  IN:

  LTE-FDD: B1/3/5/8

  LTE-TDD: B34/38/39/40/41

  LA:

  LTE-FDD: B2/3/4/5/7/8/28/66

  NA:

  LTE-FDD: B2/4/5/12/13/17/66/71

  UMTS: B2/4/5

• Uplink and Downlink Data Rate

  EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps

  IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps

  LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps

  NA: uplink: 50 Mbps, downlink: 150 Mbps

• SIM Card Type : Nano SIM


• Wide Dynamic Range (WDR) : Digital WDR
• SNR : ≥ 52 dB
• Day/Night Switch : Day,Night,Auto,Schedule
• Image Enhancement : BLC,HLC,3D DNR
• Image Settings : Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Transducer

• Transducer Type : PIR + Radar
• Detection Angle : Horizontal: 80°, vertical: 30°
• Detection Range : Up to 12 m

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone : 1 built-in microphone
• Built-in Speaker : 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
• Reset Key : Yes

Event

• Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/memory card, notify surveillance center, trigger recording, trigger capture, audible warning

General

• Power

  Power Consumption and Current:

  Typical power scenarios: 1.85 W (4G working)

  Standby scenarios: 80 mW

  Max. Power consumption: 7 W

  Power Supply: 12 VDC ± 25%

  *For debugging only

  10 W (deviation: ± 5%) Solar panels

  Power Interface:

  Power supply interface: four-core aviation connector

  Extened solar panel: four-core aviation connector

• Dimension : 133.1 mm × 177.64 mm × 382.44 mm/412.44 mm (5.24″ × 6.99″ × 15.06″/16.24″)
• Material : Plastic
• Package Dimension : 375 mm × 305 mm × 398 mm (14.76″ × 12.01″ × 15.67″)
• Weight : Approx. 850 g (1.87 lb.)
• With Package Weight : Approx. 5400 g (11.88 lb.)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email

Battery

• Battery Type : Ternary Lithium
• Cycle Lifetime

  27 hours (1.85 W)

  Full charge battery runtime without solar input.

• Battery Voltage : 9 V to 12.6 V
• Capacity : 50.76 Wh
• Max. Charging Voltage : 12.6 V
• Max. Output Voltage : 12.6 V
• Operating Temperature

  Charging: 0 °C to 45 °C (32 °F to 113 °F)

  Discharging: -20 °C to 55 °C (-4 °F to 131 °F)

• Battery Life : More than 800 cycles

Approval

• RF

  CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

  *CE certification is only for the device sold in the European region.

• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

  CE-RoHS : 2011/65/EU,

  WEEE : 2012/19/EU,

  Reach : Regulation (EC) No 1907/2006

Protection

• IP66 : IEC 60529-2013
