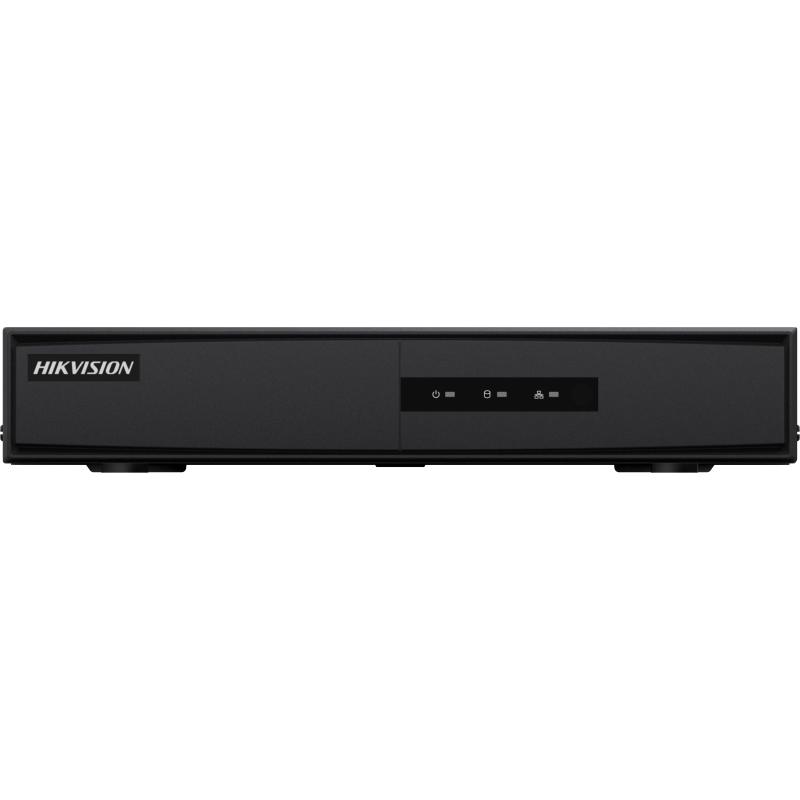

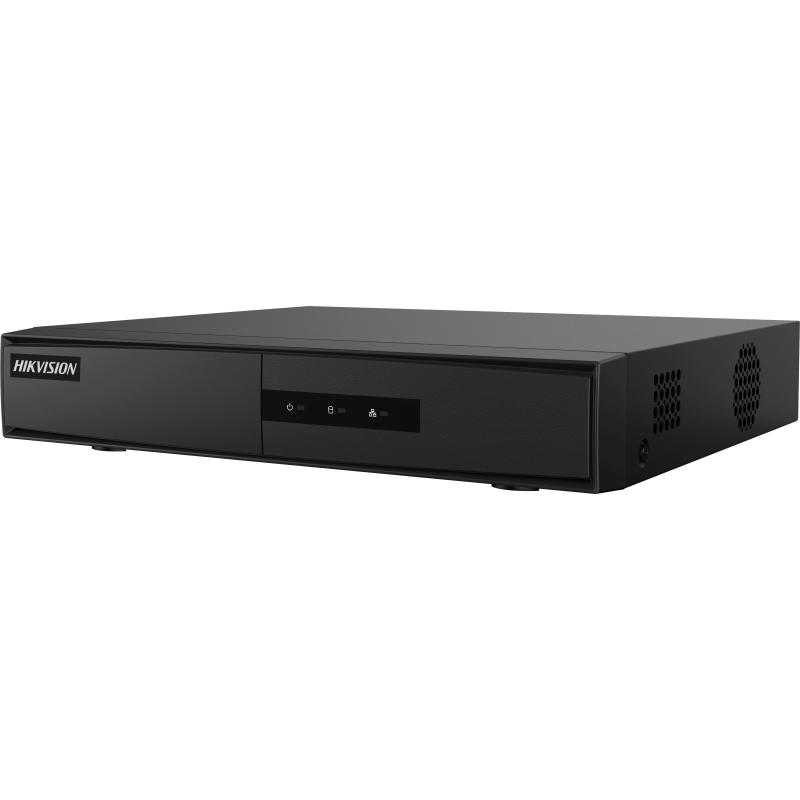

Hikvision 8 Channel PoE NVR DS-7108NI-Q1/8P/M (2MP/1080p+PoE+60Mbps Bandwidth+.265+ Compression)

The Hikvision 8 Channel PoE NVR DS-7108NI-Q1/8P/M (2MP/1080p+PoE+H.265+ Compression+60Mbps Bandwidth) is a cost-effective network video recorder designed for simple plug-and-play installations.

It supports up to 8 IP cameras and comes with 8 built-in PoE ports, eliminating the need for separate PoE switches. This allows direct connection and power supply to cameras, reducing wiring and installation complexity.

The NVR provides decoding for up to 4 channels at 1080p resolution, ensuring clear and smooth video playback. With support for H.265+/H.265/H.264+/H.264 video compression, it saves storage and bandwidth while maintaining image quality.

Its 60 Mbps incoming and outgoing bandwidth ensures stable performance for simultaneous recording and remote streaming. Dual HDMI and VGA outputs allow flexible local monitoring, while the Mini 1U design makes it compact and easy to install in small spaces.

Key Features:

• 8-channel PoE NVR with 2MP/1080p recording

• Built-in 8 PoE ports for direct plug-and-play camera connection

• Supports up to 8 IP cameras

• Decoding capacity: up to 4-ch @ 1080p

• H.265+/H.265/H.264+/H.264 compression formats

• 60 Mbps incoming & outgoing bandwidth

• HDMI and VGA simultaneous output

• Compact Mini 1U design, ideal for small systems

_____________________________________________________________________________________
Video and Audio

• IP Video Input

  8-ch

  Up to 6 MP resolution

• Incoming Bandwidth : 60 Mbps
• Outgoing Bandwidth : 60 Mbps
• HDMI Output : 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output : 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA simultaneous output

Decoding

• Decoding Format : H.265+/H.265/ H.264+/H.264
• Recording Resolution : 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback : 4-ch
• Decoding Capability : 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream Type : Video, Video & Audio

Network

• Remote Connection : 16
• Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
• Network Interface : 1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

• Interface : 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power : ≤ 75 W
• Standard : IEEE 802.3 af/at

Auxiliary Interface

• SATA : 1 SATA interface
• Capacity : Up to 6TB capacity for each disk
• Alarm In/Out : N/A
• USB Interface : Rear panel: 2 × USB 2.0

General

• Power Supply : 48 VDC, 1.8 A
• Consumption : ≤ 10 W
• Working Temperature : -10 to +55º C (+14 to +131º F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 265 × 223 × 48 mm (10.4″ × 8.8″ × 1.9″)
• Weight : ≤ 1 kg (2.2 lb)

Certification

• CEEN : 50130-4, EN 61000-3-2,EN 61000-3-3
