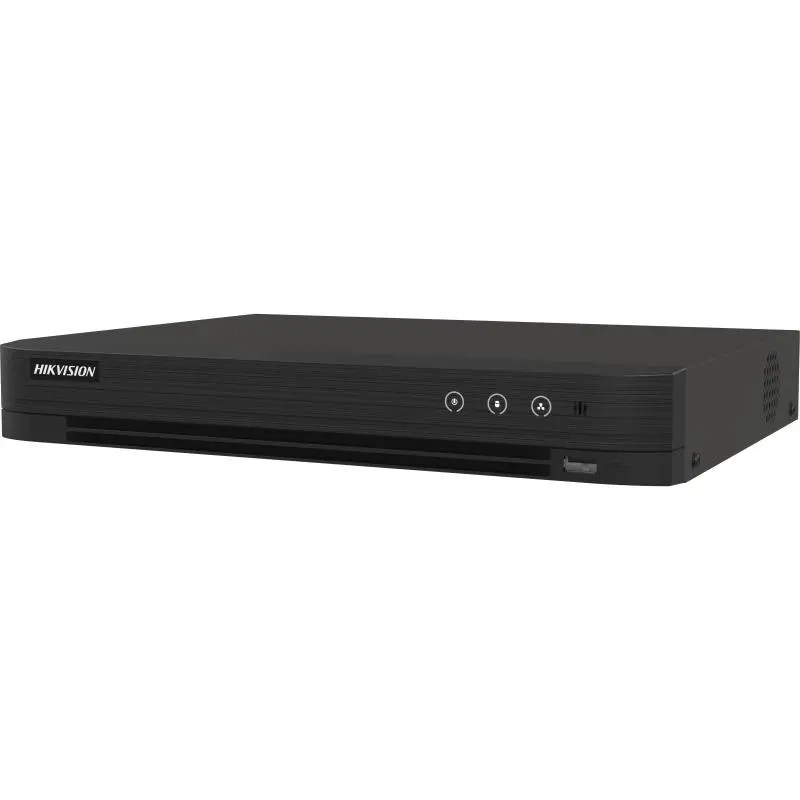

Hikvision 4 Channel AcuSense DVR iDS-7204HUHI-M1/S (5MP/3K+AI Motion Detection+H.265 Pro+)

The Hikvision 4 Channel AcuSense DVR iDS-7204HUHI-M1/S (5MP/3K+AI Motion Detection+H.265 Pro+) is designed for smart entry-level surveillance systems with enhanced AI capabilities.

It supports 4 analog channels and up to 8 IP cameras (up to 8MP resolution), providing flexibility for small setups. With encoding capability up to 8MP Lite @ 15 fps and 5MP @ 12 fps, it ensures sharp video capture for both live monitoring and playback.

Powered by AcuSense deep learning technology, this DVR provides AI Motion Detection 2.0 with human and vehicle target classification to minimize false alarms. Its H.265 Pro+ compression significantly reduces bandwidth and storage while maintaining excellent video quality.

The DVR is compatible with 5-in-1 video inputs (HDTVI, AHD, CVI, CVBS, IP), ensuring seamless integration with different camera systems. Compact and efficient, it is ideal for small businesses, retail stores, and homes looking for professional-grade AI surveillance.

Key Features:

• 4-channel AcuSense DVR with 5MP/3K recording

• Supports up to 8 IP cameras (up to 8MP resolution)

• AI Motion Detection 2.0 with human/vehicle classification

• Deep learning–based perimeter protection

• H.265 Pro+ compression for storage and bandwidth efficiency

• Recording: up to 8MP Lite @ 15 fps / 5MP @ 12 fps

• 5-in-1 hybrid input: HDTVI, AHD, CVI, CVBS, IP

• Compact 1U design with 1 HDD bay

_____________________________________________________________________________________________________________________________________________

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle Analysis : Up to 4-ch

Facial Detection

• Facial Detection And CaptureFace picture detection, face picture search

Recording

• Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution : 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate : 32 Kbps to 10 Mbps
• Dual-Stream : Support
• Stream TypeVideo, Video & Audio
• Audio Compression : G.711u
• Audio Bitrate : 64 Kbps

Video And Audio

• IP Video Input

  2-ch (up to 6-ch)

  Up to 8 MP resolution

  Enhanced IP mode on:

  4-ch (up to 8-ch), each up to 4 Mbps

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input : 4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI Output

  HDMI:

  1-ch, 2K (2560 × 1440)/60Hz,

  1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

  VGA:

  1-ch, 1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

  HDMI/VGA simultaneous output

• CVBS Input : PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous Playback : 4-ch
• HDTVI Input : 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input : 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input : 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

• Total Bandwidth : 96Mbps
• Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection : 32
• Network Interface : 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA : 1 SATA interface
• Capacity : Up to 10 TB capacity for each disk
• Serial Interface : RS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0

  Rear panel: 1 × USB 2.0

• Alarm In/Out : N/A

General

• Power Supply : 12 VDC
• Consumption : ≤ 10 W
• Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight : ≤ 1.16 kg (2.6 lb)
