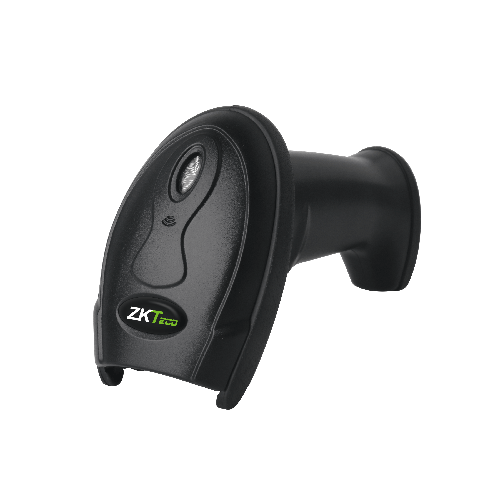

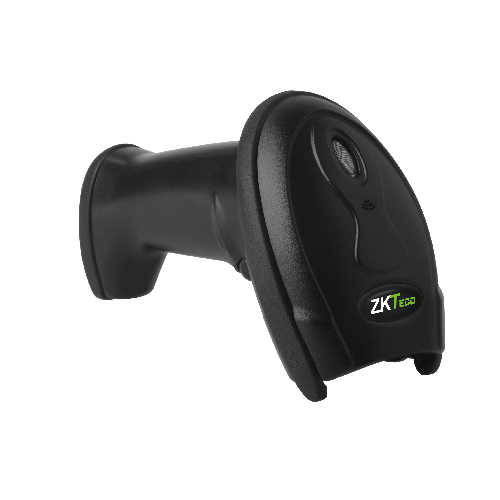

ZKB201 is an economical two-dimensional scanning scanner with simple integration,stable performance, and fast scanning speed. It also supports manual trigger and automatic continuous scanning mode. Advanced CMOS image recognition technology, intelligent image recognition system,and patent lighting technology are applied. Therefore, the scanner can read all kinds of one-dimensional and two-dimensional barcodes in high-speed and all-around way.
Weight : 160g (without wire)
Dimensions : (L×W×H) 175mm × 72mm × 100mm
Wire length : 1.8m
Interface type : Standard USB (Full Speed ,USB 2.0)
Material : ABS+PC
Color : Black
User indicators : LED, buzzer
Scanning Performance
Light source : Lighting: white LED; Focusing: Green LED; Wavelength: 525nm
Image sensor : 640×480 CMOS
Processor : ARM32-bit
Startup time : 4s
Analytical ability : 1D: ≥5mil; 2D: ≥8.7mil @PCS90%
Depth of focus : 5mil: 50~130mm;13mil: 50~270mm
Scanning mode : Manual scanning, automatic scanning
Reading angle : Roll: ±360°; Pitch: ±60° (or greater); Yaw: ±70° (or greater)
Field of view : Horizontal 40°, Vertical 30°
Motion tolerance : 2.3m/s
Input power : 160mA @ 5V DC
Light levels : 70000Lux
Decode capabilities : 1D: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5,
Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1
databar, GS1 databar limited, GS1 databar expanded
2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
Environmental
Operating temperature : -20°C to 55°C
Storage temperature ; -20°C to 60°C
Relative humidity : 5% to 95% (non-condensing)
Protection level : IP54
Drop Test : 1.8m, 100times
High and low temperature test : Work properly for 30 minutes under simulation of temperature of -20°C and 60°C
Transport vibration test : 10H@125RPM
