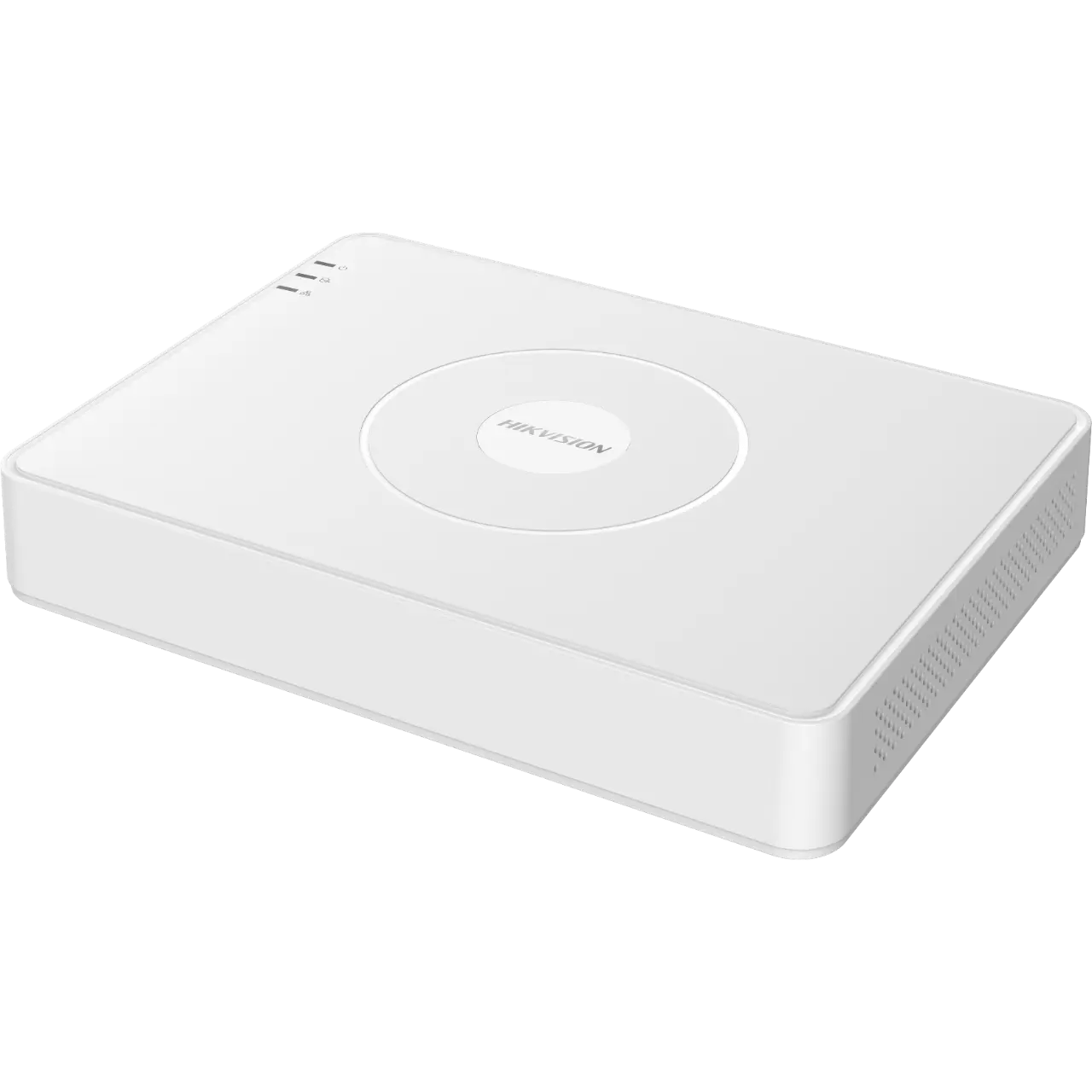

Hikvision DS-7116HGHI-M1 16 Channel 2MP DVR (2MP+16CH+H.265+AI Motion Detection+Audio+1080p Lite)

The Hikvision DS-7116HGHI-M1 16CH 2MP DVR (2MP+16CH+H.265+AI Motion Detection+Audio+1080p Lite) is a high-capacity digital video recorder designed for advanced CCTV camera systems in Sri Lanka. It supports 16 analog channels and up to 18 IP camera inputs, providing excellent flexibility for hybrid video surveillance setups. Featuring H.265 Pro+ compression, it offers superior bandwidth efficiency and longer recording time without compromising image quality.

Equipped with Motion Detection 2.0, powered by deep learning AI, the DVR intelligently classifies human and vehicle targets, reducing false alarms and improving accuracy. With audio over coaxial cable, 1080p Lite encoding, and support for multiple video formats, this DVR is ideal for large homes, offices, hotels, and retail spaces seeking reliable, cost-effective video surveillance.

Key Performance — CCTV Camera in Sri Lanka

• Channels: Supports 16 analog + 2 IP channels (18 total).

• Resolution: Up to 2MP / 1080p Lite @15fps encoding capability.

• Compression: H.265 Pro+/H.265 Pro/H.265 ensures high storage efficiency.

• Video Inputs: Compatible with HDTVI/AHD/CVI/CVBS/IP camera formats.

• AI Detection: Motion Detection 2.0 with deep learning-based human and vehicle classification.

• Audio: Audio via coaxial cable for clear, synchronized sound.

• Transmission Distance: Up to 1200m for 720p HDTVI signals.

• Build: Compact and durable 1U mini chassis, perfect for medium and large-scale setups.

The Hikvision DS-7116HGHI-M1 DVR offers a powerful, AI-enhanced recording experience with H.265+ compression, smart motion detection, and multi-format compatibility, making it an ideal choice for professional CCTV camera systems in Sri Lanka.

_____________________________________________________________________________________
Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Recording

• Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF

  For standard definition stream access: WD1/4CIF/VGA/CIF

• Frame Rate

  Main stream:

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  For 1080p and 720p stream access CIF/QVGA@15 fps

  For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate : 32 Kbps to 4 Mbps
• Dual-Stream : Support
• Stream Type : Video, Video & Audio
• Audio Compression : G.711u
• Audio Bitrate : 64 Kbps

Video And Audio

• IP Video Input

  2-ch (up to 18-ch)

  Up to 5 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
• AHD Input : 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
• CVBS Input : PAL/NTSC
• HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA simultaneous output
• Audio Input : 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback : 16-ch

Network

• Total Bandwidth : 96 Mbps
• Remote Connection : 128
• Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface : 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA : 1, SATA interface
• Capacity : Up to 10 TB capacity for each disk
• USB Interface : 2 × USB 2.0

General

• Power Supply : 12 VDC, 1.6 A
• Consumption : ≤ 7 W (without HDD)
• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
• Weight : ≤ 1.8 kg (without HDD, 4.0 lb.)
