Clear and Detailed 2K Video

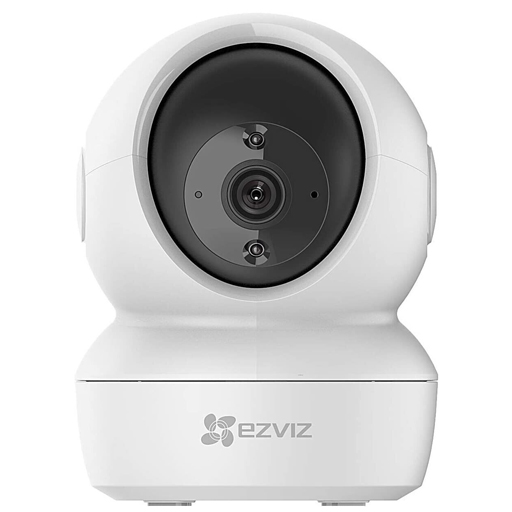

The EZVIZ C6N 4MP Indoor Wi-Fi Camera captures every detail in Quad HD resolution (2560 × 1440). As a result, you get sharper images and smoother video compared to standard Full HD. Thanks to H.265 video compression, the footage is stored efficiently, saving both space and bandwidth.
Full Room Coverage
This camera is designed with pan and tilt control, which means you can cover the entire room using only one unit. In addition, the 10m infrared night vision ensures reliable monitoring even in total darkness.
Smart Motion Alerts
With built-in smart motion detection, the EZVIZ C6N notifies you immediately when it detects movement. Therefore, you can respond faster to unexpected activity.
Flexible Storage Options
The device supports microSD cards up to 256 GB and also works with EZVIZ Cloud Storage. Consequently, you have more than one option to back up your recordings safely.
Easy Setup and Connectivity
Thanks to Wi-Fi and Ethernet connectivity, installation is quick and simple. Moreover, with AP pairing, you can connect the camera to your network in just a few steps.
Durable and Compact Design
Built for indoor use, the EZVIZ C6N is compact and reliable. In addition, its modern design fits well in living rooms, offices, or shops.
Key Features
-
4MP Quad HD Indoor Wi-Fi Camera (2560 × 1440)
-
Pan/Tilt rotation for wide coverage
-
Smart motion detection with alerts
-
10m infrared night vision
-
H.265 compression for storage savings
-
Supports microSD card up to 256 GB + Cloud Storage
-
Wi-Fi & Ethernet connections
-
Easy setup with AP pairing
_____________________________________________________________________________________________________________________________________________
| Specifications | |
|---|---|
| Model | CS-C6N-D0-8B4WF |
| Camera | |
| Image sensor | F2.2@1/3″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm, view angle: 88°(Diagonal), 75° (Horizontal), 41°(Vertical) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Compression | |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD, Full HD, HD, Standard. Adaptive bit rate. |
| image | |
| Max. Resolution | 2560 × 1440 |
| Frame Rate | Max. 20 fps; Self-Adaptive during network transmission |
| Network | |
| Smart Alarm | Motion detection |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Interface | |
| Storage | Micro SD card slot (Max. 256G) |
| Power | Micro USB |
| Wired Network | RJ45 × 1 (10M/100M self-adaptive Ethernet port) |
| Wi-Fi | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps |
| General | |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply | DC 5V/2A |
| Power Consumption | Max. 5W |
| IR Range | Max. 10 m (32.81 ft) |
| Dimensions | 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 inch) |
| Packaging Dimensions | 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 inch) |
| Bare Weight | 252g (8.89 oz) |
| In the box: | |
| In the box: | – C6N Camera |
| – Base | |
| – Screw Kit | |
| – Power Cable 3m (9.8 ft.) | |
| – Drill Template | |
| – Power Adapter | |
| – Quick Start Guide | |
| – Regulatory Information | |
| Certifications: | |
| Certifications: | FCC / UL / CE / WEEE / REACH / ROHS |
