EZVIZ CS-X5S-R100-8W 8-Channel 3K Wireless Network Video Recorder (Dual Antennas + 100m Range + H.265 Decoding + HDMI/VGA Out + Supports Up to 8TB HDD)

Overview – High-Definition Wireless Surveillance and Storage Control

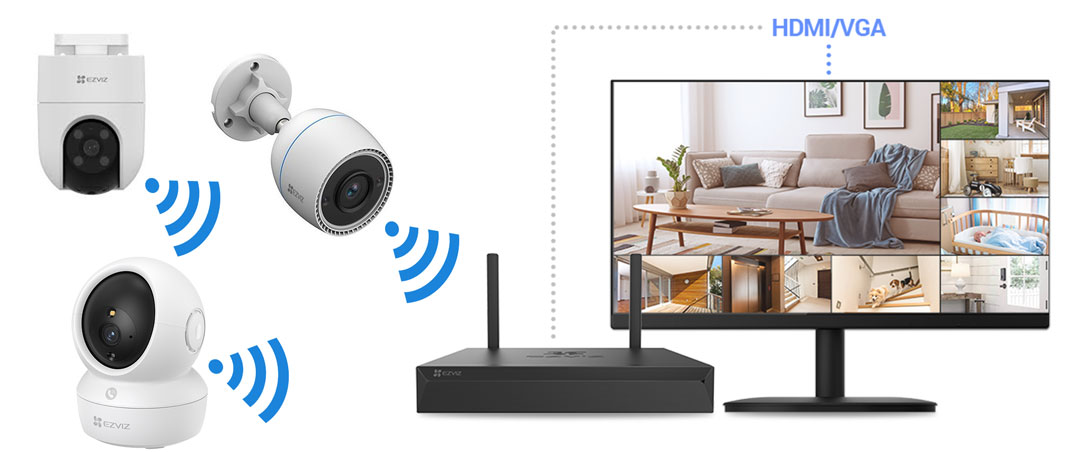

The EZVIZ CS-X5S-R100-8W NVR provides reliable wireless camera management and secure video recording. Specifically, this Pro Series network video recorder features an advanced dual-antenna system.

Consequently, it maintains stable wireless camera links over distances up to 100 meters in open spaces. This long-range capability cuts down on tricky wire setup routes. Therefore, business owners can set up security installations without running messy ethernet lines through walls.

High-Resolution Processing

The device handles clear, high-resolution video streams up to a crisp 3K level for 8 channels simultaneously. Additionally, it features an advanced H.265 video encoding system.

This video setup halves your data bandwidth needs and storage footprints compared to older H.264 methods. Meanwhile, the system deploys multiple automated recording modes. As a result, it accurately captures video using motion alerts, schedules, or event triggers. Thus, your hard drive space stays optimized for critical security moments.

Dual Monitor Outputs

Furthermore, this flexible system connects smoothly to older and newer monitor lines. Specifically, the EZVIZ CS-X5S-R100-8W NVR carries dual video outputs supporting sharp HDMI and legacy VGA ports.

This configuration outputs crisp live views onto any standard TV layout or dedicated monitoring screen. Consequently, you can review multi-camera layouts on a single control desk. This smart design lowers your overall digital screen hardware update costs.

Open Protocol Compatibility

System setup is simple because of full ONVIF cross-brand profile support. Specifically, you can manage settings for EZVIZ units or third-party network cameras across your network.

Therefore, technical teams can combine mixed equipment arrays quickly. You can add video channels, adjust motion schedules, and check data streams easily. Consequently, this interface makes system configuration fast and user-friendly.

Backup and Data Archive

Additionally, the recorder supports professional data backup methods. It routes video lines to an internal SATA port while allowing secondary exports onto standard USB flash storage.

Because of this, it links smoothly with heavy-duty backup setups or remote cloud apps. Specifically, you can back up clips onto off-site web storage or external drives. Therefore, safety managers can archive critical incident video files without risking local data loss.

Moreover, the EZVIZ CS-X5S-R100-8W NVR functions reliably under continuous 24/7 security workloads. It handles high-demand multi-channel 3K video playbacks with less than 8 Watts of standby power usage.

After that, your office or property stays protected without adding heavy energy overhead costs. The internal mainboard runs cool inside a clean, space-saving desktop chassis footprint. Consequently, your operational team can maintain non-stop property safety records.

⚙️ Key Features

• Dual External Antennas: Long-range wireless reception module reaching up to 100 meters to link distant remote cameras cleanly.

• 8-Channel 3K Capacity: Processes up to eight wireless or wired IP camera streams simultaneously for total coverage.

• H.265 Video Compression: Advanced spatial encoding that minimizes network bandwidth while maximizing hard drive storage efficiency.

• Massive Storage Support: Built-in high-capacity SATA interface supporting heavy-duty 3.5-inch hard drives from 1TB up to 8TB.

• Multi-Brand Open Protocol: Complete built-in ONVIF (V2.5) compatibility to manage third-party cameras alongside your core brand units.

• Smart Playback Search: Advanced playback engine to filter saved footage by specific dates, motion events, tags, or system log alerts.

📊 Key Specifications

• Product Class: Wireless Pro Series Network Video Recorder (NVR) with Multi-Channel Storage

• Manufacturer Brand: EZVIZ

• Model Designation: CS-X5S-R100-8W

• Official Product Identifier: MPN: CS-X5S-R100-8W (8-Channel Wireless)

• Maximum Video Access: 8-Channel wireless or wired IP camera access capability

• Wireless Radio Frequency: Reliable 2.4 GHz band handling up to 100 Mbps required access bandwidth

• Video Decoding Specs: Handles crisp 3K, 2K+, 2K, 1080p, 720p, and standard D1 camera streams

• Internal Drive Interface: 1 × Standard 3.5-inch SATA connection port

Network, Hardware & Physical Metrics

• Hard Drive Capacity: Supports any standard surveillance HDD ranging from 1TB up to 8TB max sizes

• Wired Ethernet Port: 1 × RJ-45 10/100M auto-adaptive Fast Ethernet terminal line

• Display Resolution Out: HDMI out up to 2592×1944 at 30Hz; VGA out up to 1920×1080 at 60Hz

• Data USB Interfaces: 2 × Rear-mounted USB 2.0 connection ports for mice and external backup drives

• Hardware Reset Button: Dedicated physical reset switch for rapid factory default restorations

• Power Supply In: DC 12V / 1.5A external transformer design

• Standby Power Draw: High-efficiency architecture consuming ≤ 8 Watts under standard idle modes

• Physical Device Size: Compact 235 mm × 270 mm × 44.5 mm (9.25″ × 10.6″ × 1.75″) casing layout

• Total Net Mass: Lightweight 932 g chassis frame for easy shelf or desktop placement

⭐ Why Choose the CS-X5S-R100-8W NVR?

Choosing the EZVIZ CS-X5S-R100-8W NVR upgrades your property security and streamlines your camera data workflows. The high-gain dual-antenna wireless receiver eliminates common streaming stutter issues caused by thick walls or long distances.

Therefore, security operators see smooth live video feeds without frustrating dropouts. Furthermore, the combined hybrid protocol removes the need to buy matching-brand cameras for older systems.

Effortless Incident Retrieval

Additionally, smart data search features simplify incident tracking for your management team. You can pull specific alert clips or check logs from any monitor screen quickly.

Meanwhile, the robust 8TB maximum hard drive space safeguards your records over deep archive windows. Consequently, this dependable storage setup prevents missing days or data caps during continuous recording cycles.

All-in-One Secure Center

Ultimately, this wireless recorder stops data loss and security tracking gaps across your business. It balances high-performance 8-channel 3K video processing, smart file compression, dual video feeds, and open protocol compatibility in one slim frame.

Investing in this value-range system gives you premium surveillance functions at a highly practical price point. Thus, you can maintain clear property records and protect business spaces effectively.
