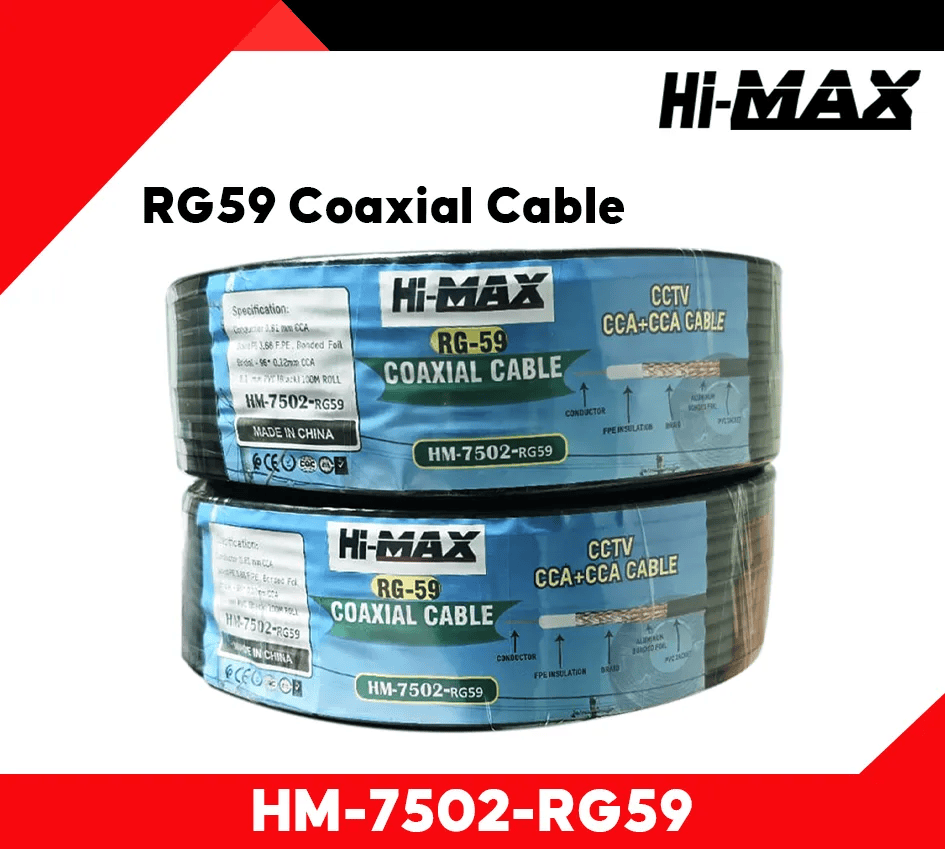

HI-MAX RG59 CCA+CCA CCTV Coaxial Cable (Model: HM-7502-RG59, 75 Ohm, 0.81mm CCA Core + Bonded Foil + 96 Strand CCA Braid, 100m Roll)

⚡ Overview – HI-MAX HM-7502-RG59 Coaxial Cable

Are you looking for a cost-effective and reliable coaxial cable for clear CCTV video transmission, analog security systems, or TV signal distribution?

Consequently, the HI-MAX HM-7502-RG59 CCA+CCA CCTV Coaxial Cable provides dependable video performance with solid shielding coverage. Designed with a 0.81mm CCA center conductor and double-layer shielding, this cable protects against signal distortion over short and medium distances.

Furthermore, you can order this 100m factory roll online in Sri Lanka with fast islandwide delivery.

⚡ 0.81mm Copper-Clad Aluminum (CCA) Conductor Core

First, the center conductor is engineered for efficient video signal delivery in standard CCTV networks.

In addition, the core features a 0.81mm Copper-Clad Aluminum (CCA) wire. Thus, it offers a lightweight and economical cabling solution compared to solid copper alternatives while ensuring clear signal feed.

As a result, your security cameras and analog video monitors receive steady signal transmission without unexpected picture loss.

🏢 Heavy-Duty 96-Strand Double Shielding

Additionally, protect your video transmission against external electrical noise and radio frequency interference.

Specifically, it features a 3.66mm Solid Foam PE dielectric insulator surrounded by Bonded Aluminum Foil and a high-density 96-strand (96 * 0.12mm) CCA braid shield. Consequently, this dual-layer shielding maintains stable signal path integrity across various frequencies.

Furthermore, its tough 6.1mm black PVC outer jacket protects the inner conductor layers from physical abrasion and environmental exposure.

🔋 Convenient 100m Factory Roll for Installers

Furthermore, the cable comes pre-packaged in a convenient 100m factory roll.

In addition, the flexible 6.1mm black PVC outer sheath makes it easy to run through trunking, conduits, or wiring channels during setup.

Finally, HI-MAX produces these cables to meet practical installation standards, making them an excellent budget-friendly choice for CCTV installers and home security projects in Sri Lanka.

⚙️ Key Features of HI-MAX RG59 Coaxial Cable

• CCA Center Conductor: 0.81mm Copper-Clad Aluminum conductor for cost-effective video signal routing.

• Double Layer Shielding: Bonded Foil combined with a 96-strand (96 * 0.12mm) CCA braid blocks RF interference.

• Solid Foam PE Insulation: 3.66 F.PE dielectric core preserves internal conductor structure and spacing.

• Protective Outer Jacket: 6.1mm black PVC sheath resists wear, moisture, and mechanical strain.

• 100M Factory Roll: Convenient length for residential CCTV wiring and small commercial projects.

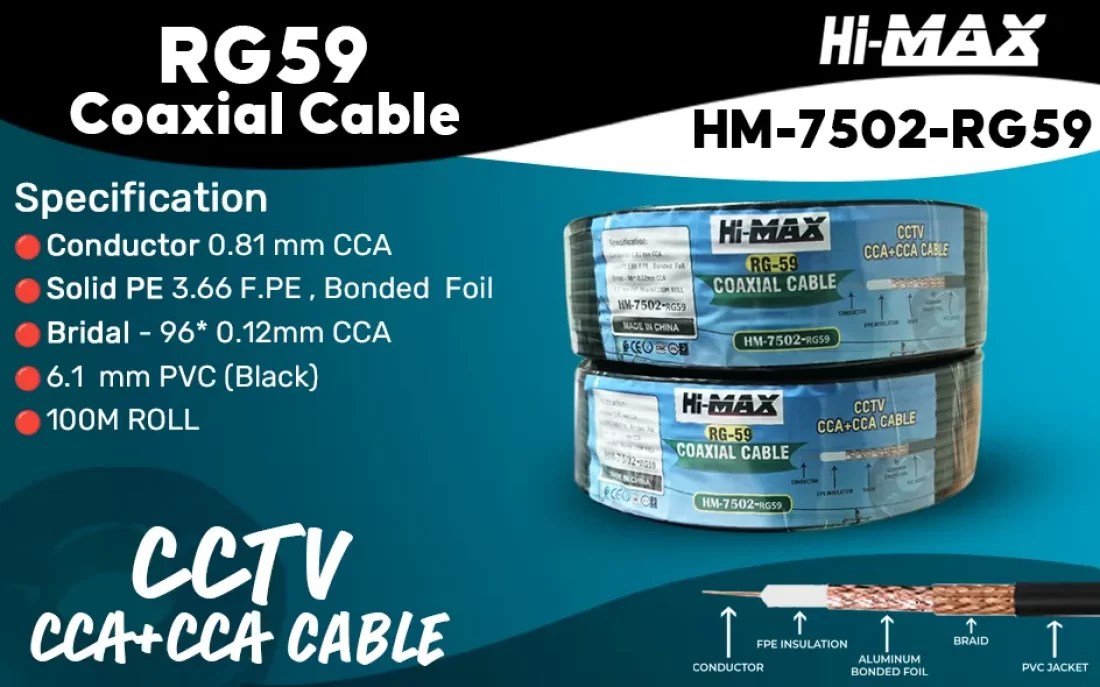

📊 Key Specifications

• Brand: HI-MAX

• Model Number: HM-7502-RG59

• Cable Type: RG59 Coaxial Cable

• Conductor: 0.81mm CCA (Copper-Clad Aluminum)

• Insulation / Dielectric: 3.66mm Solid PE (3.66 F.PE)

• Inner Shield: Bonded Foil

• Outer Braid Shield: 96 * 0.12mm CCA Braid

• Jacket Diameter & Material: 6.1mm PVC (Black)

• Roll Length: 100 Meters

• Best Uses: CCTV Camera Video Transmission, Analog Security Systems, TV Signal Lines

🤖 Recommended Usage Guidelines

First, measure the required path from your security cameras to the DVR recorder.

Next, unroll the cable smoothly from the 100m coil to prevent kinks or twists in the shielding layers.

After that, strip the outer 6.1mm PVC jacket carefully with a coaxial wire stripper to expose the 0.81mm center conductor and braid shield.

Finally, terminate both ends with compatible RG59 BNC connectors or F-type connectors.

Therefore, order your HI-MAX RG59 Coaxial Cable (HM-7502-RG59 100m) today on elecshop.lk for fast islandwide delivery across Sri Lanka!
