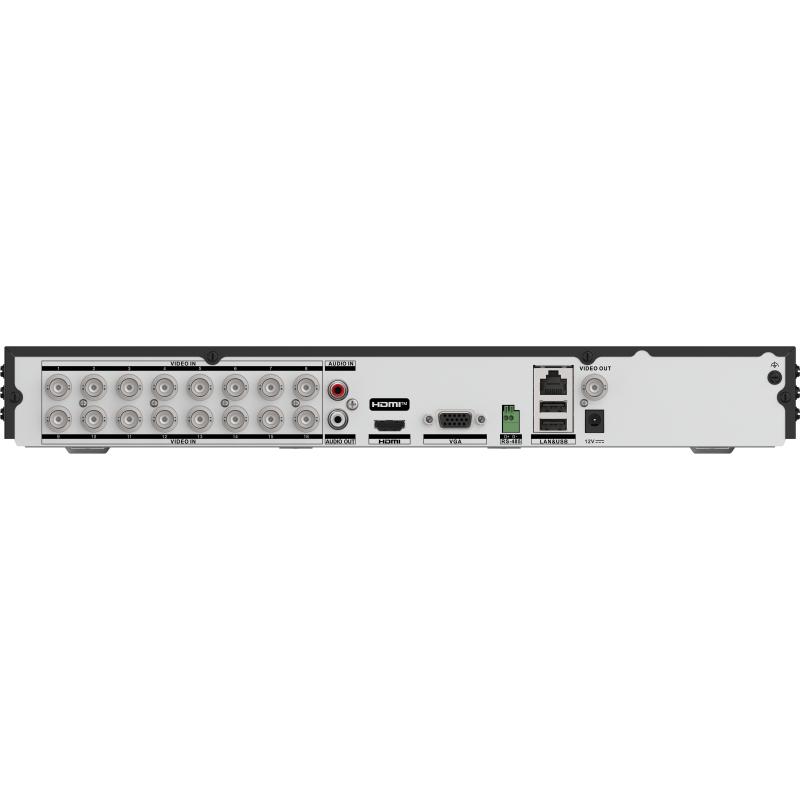

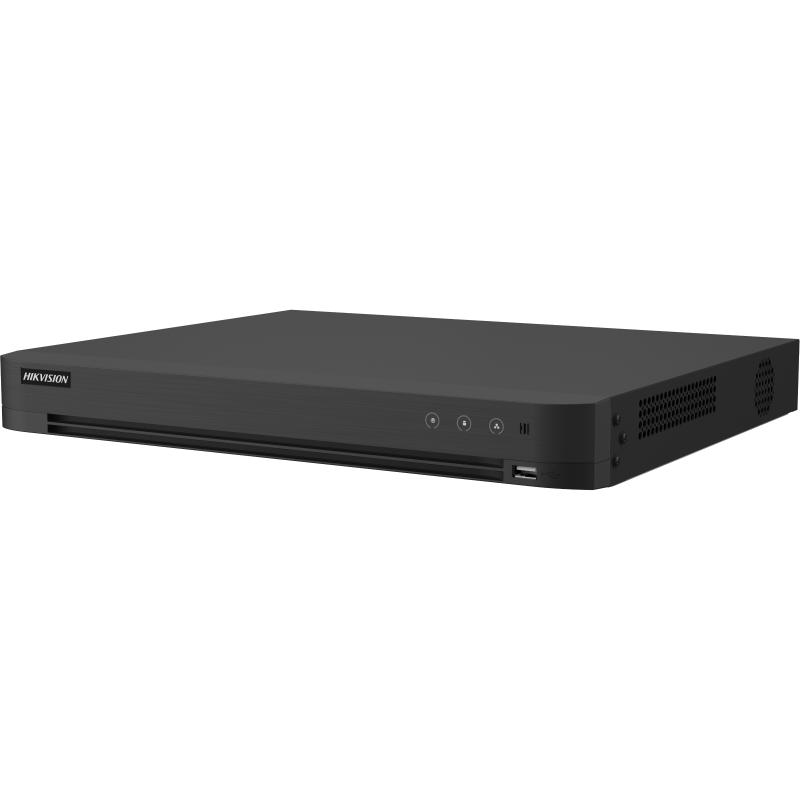

Hikvision 2MP 16-Channel AcuSense DVR (iDS-7216HQHI-M2/XT – Up to 5MP Lite+H.265+ AI Motion Detection+Facial Recognition Ready)

Perimeter Protection

• Human/Vehicle AnalysisUp to 8-ch (advanced model)

Facial Detection

• Facial Detection and Capture

  Face picture detection, face picture search；

  4-ch face picture capture

Facial Recognition

• Face Picture Library

  Up to 16 face picture libraries;

  HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

• Face Picture Comparison : 4-ch face picture comparison alarm (HD analog camera)

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Video and Audio

• IP Video Input : 8-ch (up to 24-ch), each up to 6MP
• Analog Video Input

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• CVBS Input : PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous Playback : 16-ch
• HDTVI Input : 3K(2960 x 1665)@25/20fps, 3K(3328×1504)@20fps,2K(2304×1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input : 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDCVI Input : 3K(2880×1620)@20/25 fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30 fps
• Video Output Mode : HDMI/VGA simultaneous output
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Audio Input : 1-ch(up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 16-ch via coaxial cable
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Recording

• Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  2K/3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  2K/3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate : 32 Kbps to 6 Mbps
• Dual-stream : Support main stream or sub stream
• Stream Type : Video, Video & Audio
• Audio Compression : G.711u
• Audio Bitrate : 64 Kbps

Decoding

• Decoding Capability : up to 24-ch 1080P@30fps

Network

• Total Bandwidth : 256 Mbps
• Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
• Remote Connection : 128
• Network Interface : 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA : 2 SATA interface, up to 12 TB capacity for each disk
• Serial Interface : RS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0;

  Rear panel: 2 × USB 3.0

• Alarm In/Out : N/A (optional to support)

General

• Power Supply : 12 V DC, 3.3 A
• Consumption : ≤40 W
• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
• ≤ 2 kg (4.4 lb)
