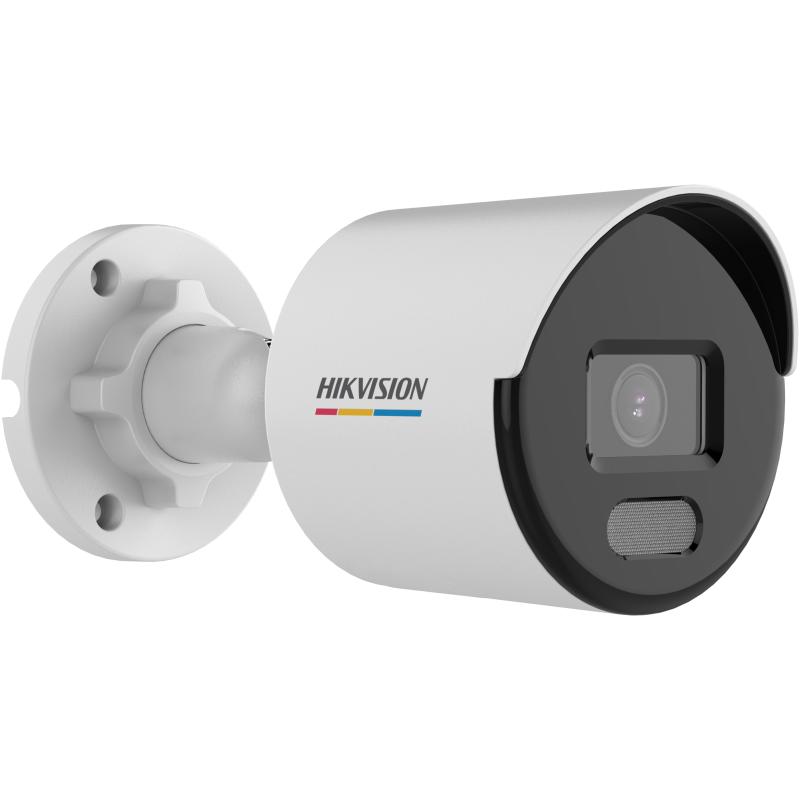

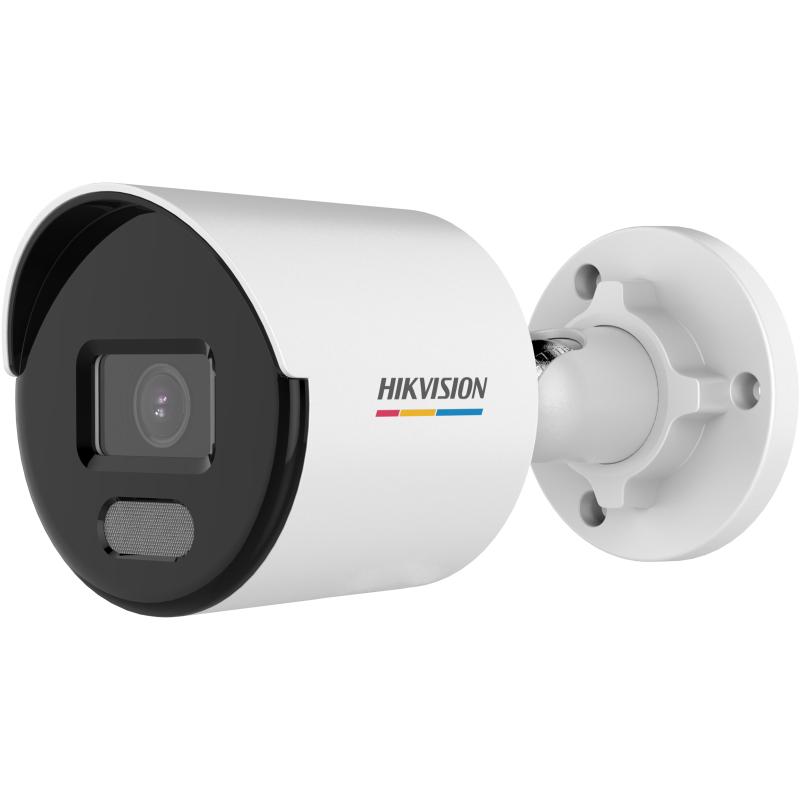

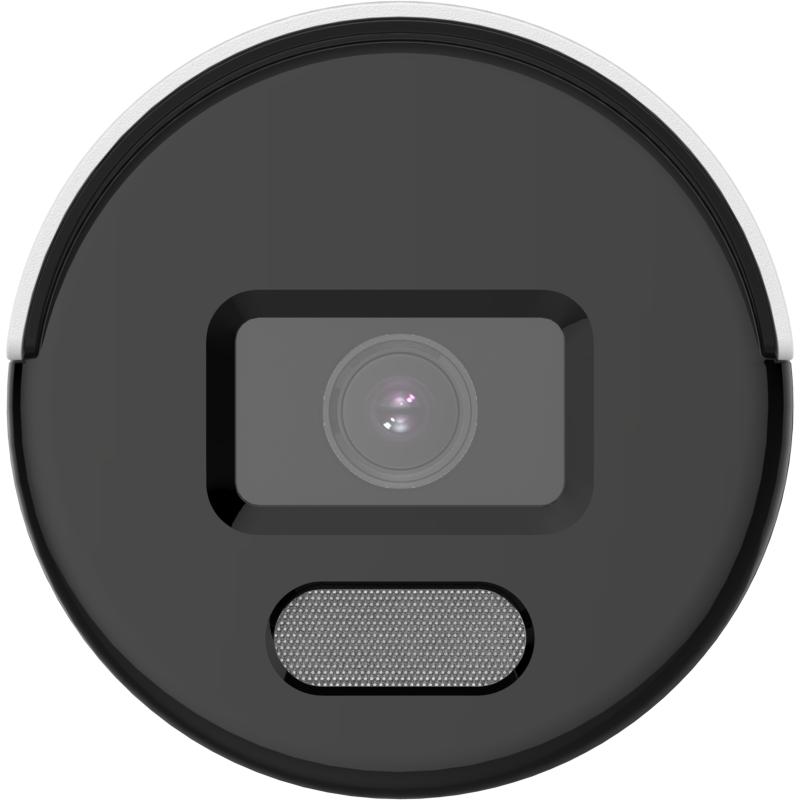

Hikvision 2MP ColorVu Bullet Camera DS-2CD1027G2-L (2MP+30m IR+Color+AI Detection+WDR+H.265+IP67)

The Hikvision 2MP ColorVu Bullet Camera DS-2CD1027G2-L (2MP+30m IR+Color+AI Detection+WDR+H.265+IP67) delivers bright full-color images day and night with advanced AI features.

With 2MP high-resolution imaging and ColorVu technology, it provides vivid color video even in low-light environments. The Smart IR illumination extends up to 30 meters, ensuring clear visibility in dark conditions.

Powered by AcuSense deep learning algorithms, it offers human and vehicle detection, reducing false alarms and focusing on real security threats.

The camera supports H.265+ compression, minimizing bandwidth and storage needs while maintaining video quality. It also provides optional onboard storage up to 256GB (microSD) for local recording, along with an optional built-in microphone for real-time audio monitoring.

Its IP67-rated housing ensures durability in outdoor environments.

Key Features:

• 2MP ColorVu bullet network camera

• 24/7 full-color imaging with Smart IR up to 30m

• AI detection: human & vehicle classification

• Optional built-in microphone for audio recording

• Optional onboard storage up to 256GB

• Efficient H.265+ compression

• Weatherproof IP67 for outdoor use

_____________________________________________________________________________________
Camera

• Image Sensor : 1/2.8″ Progressive Scan CMOS
• Max. Resolution : 1920 × 1080
• Min. Illumination : Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time : 1/3 s to 1/100,000 s
• Day & Night : 24/7 color imaging
• Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type : Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°

  4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°

• Lens Mount : M12
• Iris Type : Fixed
• Aperture : F1.0
• Depth of Field

  2.8 mm: 1.5 m to ∞

  4 mm: 2.1 m to ∞

• DORI
• DORI

  2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

  4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light Type : White Light
• Supplement Light Range : Up to 30 m
• Smart Supplement Light : Yes

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile,Main Profile,High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR,VBR
• Region of Interest (ROI) : 1 fixed region(s) for main stream

Network

• Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface (Profile S, Profile T, Profile G (only -U model supports)),ISAPI,SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Clienti : VMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR) : DWDR
• SNR : ≥ 52 dB
• Day/Night Switch : Day,Night,Auto,Schedule
• Image Enhancement : BLC,HLC,3D DNR
• Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask : 4 programmable polygon privacy masks

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage : Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• Material : Aluminum alloy body
• Dimension

  Ø76.6 mm × 164.4 mm (Ø3 × 6.5\”)”

• Package Dimension : 234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″)
• Weight

  -L: Approx. 405 g (0.9 lb.); -LUF: Approx. 425 g (0.9 lb.)

• With Package Weight

  -L: Approx. 630 g (1.4 lb.); -LUF: Approx. 650 g (1.4 lb.)

• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language : English, Ukrainian
• General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval

• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  KC: KN32: 2015, KN35: 2015

Safety

• UL: UL 62368-1,

• CB: IEC 62368-1: 2014+A11,

• CE-LVD: EN 62368-1: 2014/A11: 2017,

• BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

• CE-Ro : HS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

• Protection : IP67: IEC 60529-2013
