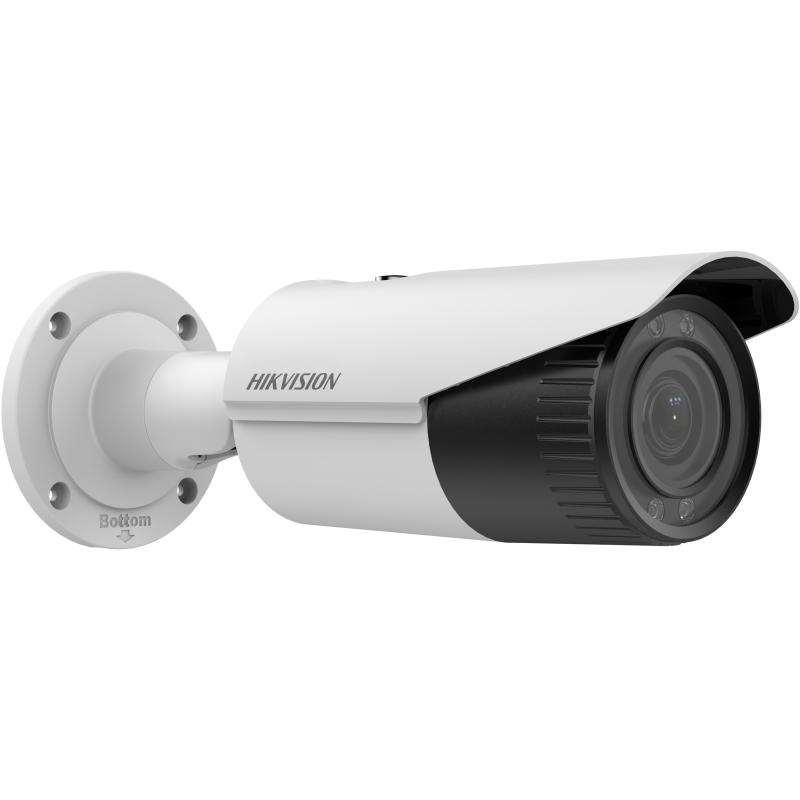

Hikvision 2MP IR Varifocal Bullet Camera DS-2CD2621G0-I(Z)(S) (2MP+60m IR+Motorized Lens+Audio+WDR+H.265+IP67)

The Hikvision 2MP IR Varifocal Bullet Camera DS-2CD2621G0-I(Z)(S) (2MP+60m IR+Motorized Lens+Audio+WDR+H.265+IP67) delivers professional-grade outdoor surveillance with flexible installation and powerful night vision.

It features 2MP resolution imaging and 120 dB true WDR, ensuring clear video even in strong backlight or high-contrast scenes. The built-in EXIR infrared illumination provides reliable night vision up to 60 meters.

With the -Z variant, it includes a motorized varifocal lens, making zoom and focus adjustments fast and precise. The -S variant adds an audio and alarm interface, enabling integration with external microphones, speakers, or alarms for enhanced monitoring.

The H.265+ compression significantly reduces storage and bandwidth requirements while maintaining excellent image quality. Its IP67-rated weatherproof housing and full-metal robust design make it suitable for demanding outdoor environments.

Key Features:

• 2MP outdoor bullet camera with WDR

• 60m IR night vision with EXIR technology

• -Z: motorized varifocal lens for flexible installation

• -S: audio and alarm interface for interactive monitoring

• 120 dB true WDR for strong backlight performance

• H.265+ compression for efficient storage

• Weatherproof IP67 with full-metal construction

_____________________________________________________________________________________
Camera

• Image Sensor : 1/2.7″ Progressive Scan CMOS
• Max. Resolution : 1920 × 1080
• Min. Illumination : Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time : 1/3 s to 1/100,000 s
• Day & Night : IR Cut Filter
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 100°, rotation: 0° to 360°

Lens

• Lens Type : Varifocal Lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV : 2.8 to 12 mm: horizontal FOV 94° to 36°, vertical FOV 50° to 20°, diagonal FOV 109° to 42°
• Lens Mount : Ø14
• Iris Type : Fixed
• Aperture : F1.6

Illuminator

• Supplement Light Type : IR
• Supplement Light Range : Up to 60 m
• IR Wavelength : 850 nm

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360 )

  60 Hz: 30 fps (640 × 480, 640 × 360 )

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• Region of Interest (ROI) : 1 fixed region for main stream

Audio

• Audio Compression : -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate : -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate : -S: 8 kHz/16 kHz
• Environment Noise Filtering : -S: Yes

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface, ISAPI
• User/Host : Up to 32 users. 3 levels: administrator, operator and user
• Clienti : VMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings : Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
• Day/Night Switch : Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR) : 120 dB
• Image Enhancement : BLC, 3D DNR

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD card, up to 256 GB

Audio

• -S:

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm : -S: 1 input,1 output, (max. 12 VDC, 30 mA)
• Reset Key : Yes

Event

• Basic Event : Motion detection, video tampering alarm, exception
• Smart Event : Line crossing detection, intrusion detection
• Linkage : -S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, audible warning, trigger alarm output

General

• Power

  12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug

  PoE: (802.3af, Class 3, 36 V to 57 V), 0.23 A to 0.36 A, max. 12.9 W

• Material : Metal
• Dimension : Ø105 mm × 294.5 mm (4.1″ × 11.6″)
• Package Dimension : 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
• Weight : Approx. 1050 g (2.3 lb.)
• With Package Weight : Approx. 1500 g (3.3 lb.)
• Storage Conditions : -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Language  : 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC

  FCC SDoC: 47 CFR Part 15, Subpart B;

  CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;

  RCM: AS/NZS CISPR 32: 2015;

  IC VoC: ICES-003: Issue 6, 2016;

  KC: KN 32: 2015, KN 35: 2015

• Safety

  UL: UL 60950-1;

  CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

  CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

  BIS: IS 13252(Part 1):2010+A1:2013+A2:2015

• Environment

  CE-RoHS: 2011/65/EU;

  WEEE: 2012/19/EU;

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
