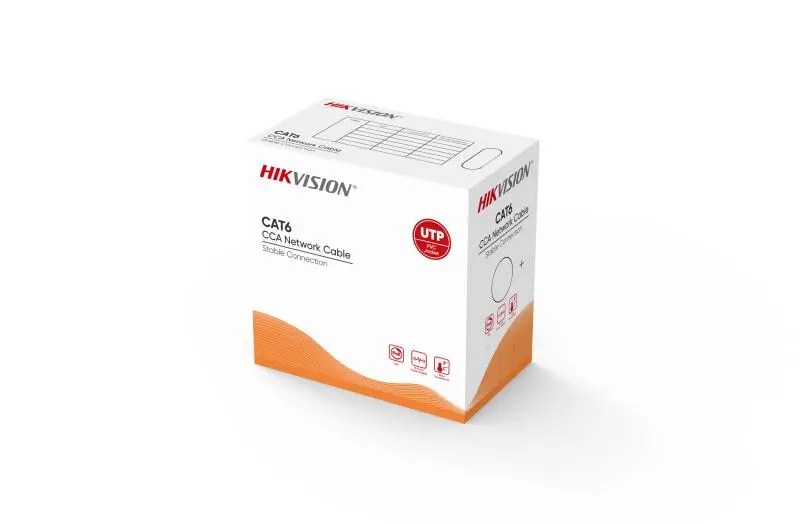

Hikvision 305m Cat6 UTP CCA Indoor Network Cable (DS-1LN6UU/CCA – 0.57mm 23AWG, CPR Eca Rated Indoor Use, Fluke Tested, Grey)

Overview – Hikvision CAT6 U/UTP Network Cable in Sri Lanka

The Hikvision 305m CAT6 U/UTP Network Cable in Sri Lanka is designed for high-speed data transmission, CCTV Camera setups, and stable indoor networking — all at the lowest price.
This 305-meter CCA (Copper-Clad Aluminum) cable offers reliable performance and excellent signal stability, making it perfect for LAN, IP Camera, and structured cabling installations.

Built with strong mechanical properties, the PVC sheath provides high tensile and compressive strength, reducing the risk of damage during installation.
It has successfully passed the Fluke 90-meter channel test, ensuring superior data performance and low signal loss over long distances.

The cable meets ANSI/TIA-568.2-D standards and holds CE CPR Eca flame retardant certification, providing both safety and performance.
It also complies with RoHS 2.0 environmental standards, ensuring low toxicity and eco-friendly materials.
Designed for indoor use, this cable includes a rip cord and separator, making it easy to strip, organize, and terminate during network projects.

Technical Highlights

• Brand: Hikvision

• Model: 305m CAT6 U/UTP Network Cable

• Category: Cat 6 (U/UTP)

• Conductor Material: CCA (Copper-Clad Aluminum)

• Conductor Diameter: 0.57 ± 0.01 mm (23 AWG)

• Insulation Diameter: 1.02 ± 0.05 mm

• Sheath Material: PVC (Durable and Flame-Retardant)

• Sheath Color: Grey

• Fire Resistance: CPR Eca Certified

• Compliance: ANSI/TIA-568.2-D, CE, RoHS 2.0

• Length: 305 ± 1.5 m

• Rip Cord: Yes

• Separator: Yes

• Usage Scenario: Indoor Installations

• Applications: LAN, CCTV Camera Networking, Data Transmission

Why Choose Hikvision CAT6 Network Cable in Sri Lanka

The Hikvision 305m CAT6 Network Cable delivers excellent transmission quality, fire safety, and build durability for all your networking needs in Sri Lanka.
It ensures smooth data flow for IP CCTV Cameras, routers, switches, and computers, maintaining consistent connectivity even across large buildings.

Because of its CCA conductor and PVC sheath, it combines cost-efficiency with strength.
At the lowest price, it’s the best choice for hotels, offices, smart homes, and surveillance systems that require both speed and safety.

Pair it with Hikvision PoE Switches or NVR systems for a complete and reliable network setup.

⚡ Overview – Cost-Effective Indoor Cat6 Network Cabling

Are you searching for an economical, reliable indoor networking solution for small business setups, basic office cabling, or budget-friendly IP camera installations?

Consequently, the Hikvision 305m Cat6 U/UTP CCA Indoor Network Cable (DS-1LN6UU/CCA) offers an ideal balance of cost-efficiency and steady performance. Built with a 0.57mm 23AWG Copper-Clad Aluminum (CCA) conductor, this cable complies with ANSI/TIA-568.2-D standards to deliver dependable Gigabit data transmission for cost-conscious projects.

Furthermore, you can purchase this original cable box online in Sri Lanka with fast islandwide delivery.

⚡ 23AWG CCA Core & Fluke Channel Test Verified

First, ensure your everyday network operations run smoothly without overstretching your project budget.

In addition, the 0.57mm 23AWG CCA conductor provides stable electrical performance for short-to-medium distance runs.

As a result, it passes the Fluke 90-meter channel test, ensuring reliable bandwidth and connectivity across office workstations, routers, and IP network endpoints.

🏢 High Mechanical Strength & CPR Eca Indoor Safety

Additionally, the DS-1LN6UU/CCA is designed with a tough, high-tensile PVC outer sheath to protect internal pairs from compression damage during installation.

Specifically, its internal architecture features a central separator to reduce cross-talk and an integrated rip cord for fast jacket stripping.

Consequently, this CE CPR Eca flame retardant class certified and RoHS 2.0 compliant cable ensures safe, reliable indoor deployment inside drop ceilings, wall conduits, and network cabinets.

🔋 Practical Networking for Budget-Conscious Builds

Furthermore, this cable provides a highly practical solution for everyday commercial and residential setups.

In addition, its lightweight 23AWG structure allows for smooth handling and quick pulling through conduit routes.

Finally, it delivers reliable data transmission for standard internet networks, desktop drops, and short-distance IP security installations.

⚙️ Key Features of Hikvision Indoor Cat6 CCA Cable (DS-1LN6UU/CCA)

• Cost-Effective 23AWG Conductor: 0.57mm Copper-Clad Aluminum (CCA) core ideal for budget-conscious network builds.

• Fluke Channel Test Verified: Verified for steady transmission performance in a standard Fluke 90-meter channel test.

• ANSI/TIA-568.2-D Compliant: Meets recognized industry specifications for Category 6 unshielded twisted pair cables.

• CPR Eca Fire Safety: CE CPR Eca certified flame-retardant PVC sheath for safe indoor installation.

• Durable Grey PVC Jacket: Built with high tensile and compressive strength to withstand installation wear and tear.

• 305 Meter Pull Box: Features a central cross separator and rip cord in a clean 305m box layout.

📊 Key Specifications

• Brand: Hikvision

• Model Code: DS-1LN6UU/CCA

• Product Type: Category 6 (Cat6) Unshielded Twisted Pair (U/UTP)

• Usage Environment: Indoor Use Only

• Conductor Material: CCA (Copper-Clad Aluminum)

• Conductor Diameter: 0.57 ± 0.01 mm (23 AWG)

• Insulation Diameter: 1.02 ± 0.05 mm

• Packing Length: 305 ± 1.5 meters

• Fire Resistance Rating: CE CPR Eca

• Sheath Material & Color: High-Durability PVC | Grey

• Internal Features: Central Separator & Rip Cord Included

• Compliance Standards: ANSI/TIA-568.2-D, RoHS 2.0

• Fluke Performance Test: Passes Fluke 90-meter Channel Test

🤖 Recommended Usage Guidelines

First, pull the required cable length directly from the 305m carton box.

Next, strip the outer grey PVC jacket carefully using a cable stripper or the built-in rip cord without damaging the internal wire pairs.

After that, untwist the color-coded pairs around the central separator and terminate them into Cat6 RJ45 connectors or patch panel terminals according to T568A or T568B wiring standards.

Finally, test the line using a network cable tester to ensure proper pin continuity before connecting your network switches or devices.

Therefore, order your Hikvision 305m Cat6 UTP CCA Indoor Network Cable (DS-1LN6UU/CCA) today on elecshop.lk for fast islandwide delivery across Sri Lanka!
