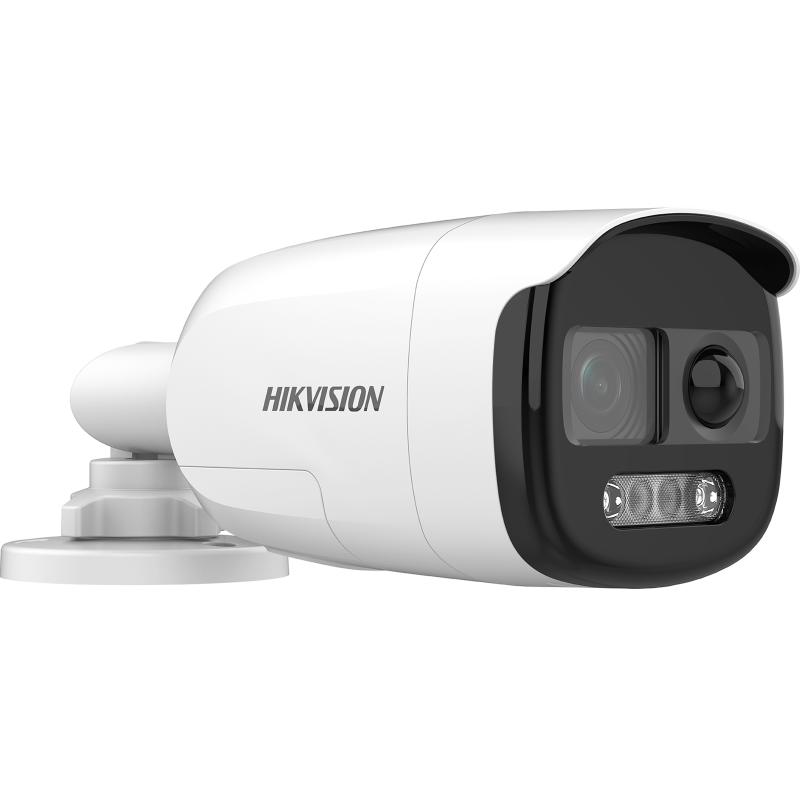

Hikvision 3K ColorVu PIR Siren Bullet Camera DS-2CE12KF3T-PIRXO (5MP/3K+40m IR+Color+PIR+Siren+Audio+WDR)

The Hikvision 3K ColorVu PIR Siren Bullet Camera DS-2CE12KF3T-PIRXO (5MP/3K+40m IR+Color+PIR+Siren+Audio+WDR+IP67) combines high-resolution ColorVu imaging with active intrusion deterrence for enhanced outdoor security.

With 5MP/3K resolution (2960 × 1665), it delivers sharp, vibrant video. ColorVu technology provides 24/7 full-color monitoring, while the 40m white light illumination ensures bright night-time surveillance.

This camera integrates PIR detection technology, identifying human movement through body heat. When triggered, it activates an active strobe light and built-in audio siren, effectively warning intruders and preventing crime before it happens.

The 130 dB true WDR and 3D DNR guarantee clear images even in challenging light conditions. With a built-in speaker, it provides high-quality audio alarm capability.

Its IP67-rated housing ensures durability in harsh weather, making it ideal for perimeter and outdoor installations.

Key Features:

• 5MP/3K ColorVu bullet camera with vivid day & night imaging

• 24/7 full-color monitoring with F1.0 aperture

• 40m white light range for bright night vision

• PIR human detection for accurate alerts

• Active deterrence: strobe light + built-in audio siren

• 130 dB WDR & 3D DNR for clear imaging

• Weatherproof IP67 for outdoor durability

_____________________________________________________________________________________
Camera

• Image Sensor : 3K CMOS
• Max. Resolution : 2960 (H) × 1665 (V)
• Min. Illumination : 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white Light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night : 24/7 Color Imaging
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
• Signal System : PAL/NTSC
• Slow Shutter : Max. 16 times

Lens

• Lens Type : 2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 109°, vertical FOV: 58°, diagonal FOV: 129°

  3.6 mm, horizontal FOV: 92°, vertical FOV: 45°, diagonal FOV: 111°

• Lens Mount : M16

Illuminator

• Supplement Light Type : White Light
• Supplement Light Range : Up to 40 m
• Smart Supplement Light : Yes


• Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
• Image Settings : AGC;Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
• Frame Rate : 3K@20 fps，4 MP@30 fps, 4 MP@25 fps，1080p@30 fps, 1080p@25 fps
• Day/Night Mode : Color
• Wide Dynamic Range (WDR) : ≥130 dB
• Image Enhancement : WDR;BLC;HLC;Global;HLS
• Privacy Mask : 4 programmable privacy masks
• Noise Reduction : 3D DNR/2D DNR
• White Balance : Auto/Manual
• White Light : Auto/Off

Supplement Detection(PIR)

• PIR Range : 11 m
• PIR Angle : 110°

Interface

• Video Output : 1 HD analog output
• Alarm

  1 line out

  Flashing Light Alarm (White)

Event

• Motion Detection : 4 programmable motion areas

General

• Power

  12 VDC ± 25%, max. 7.9 W

  *You are recommended to use one power adapter to supply the power for one camera.

• Material : Front cover: Metal, Main body: Plastic
• Dimension : 82.6 mm × 77.1 mm × 213.2 mm (3.25″ × 3.04″ × 8.39″)
• Weight : Approx. 482 g (1.06 lb.)
• Operating Condition : -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
• Communication : HIKVISION-C
• Language : English

Approval

• Protection : IP67
