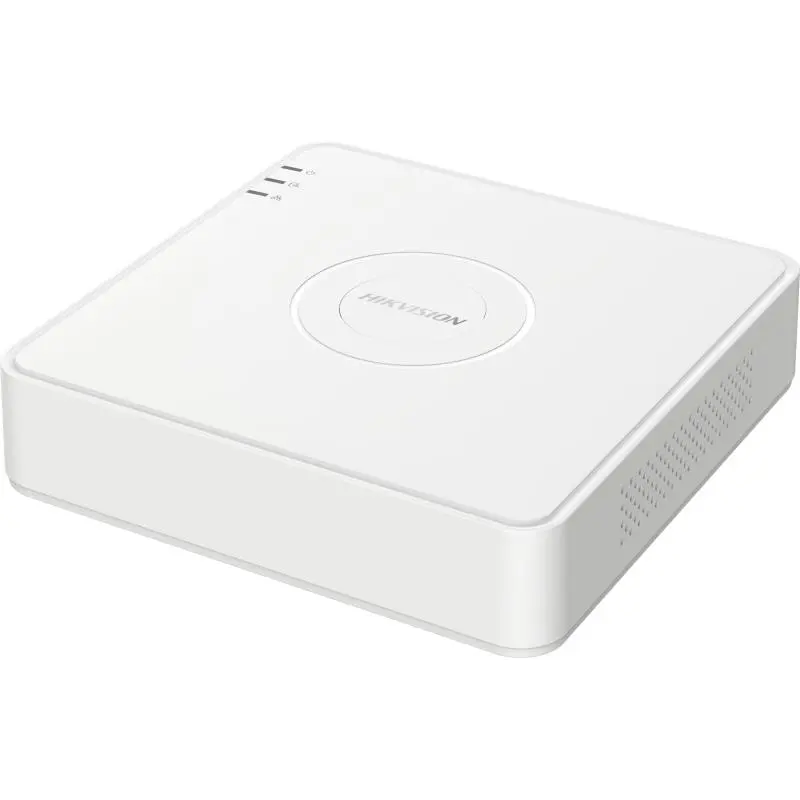

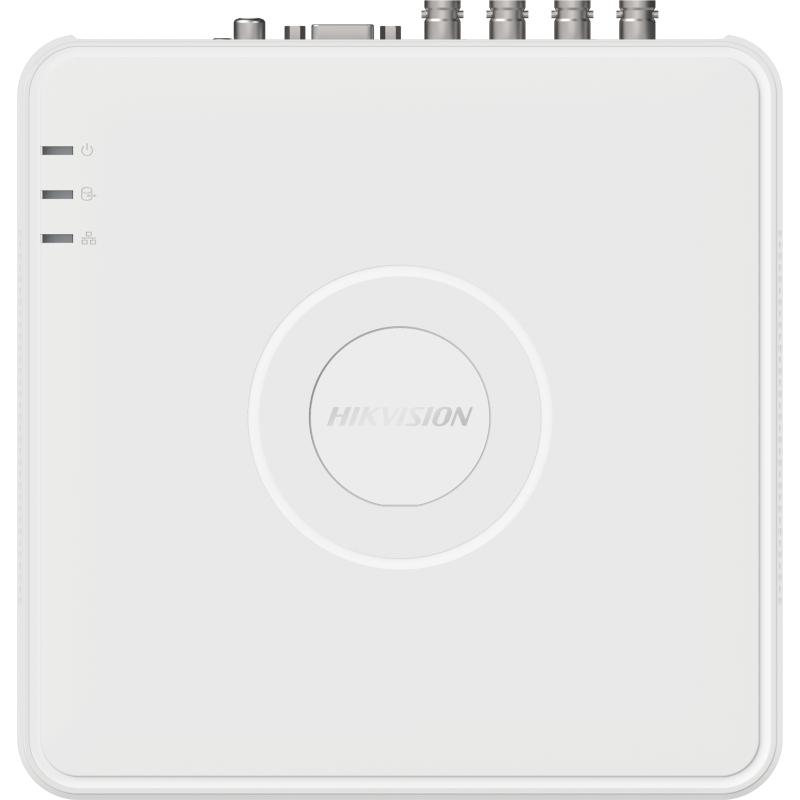

Hikvision 8 Channel 2MP/1080P Mini AcuSense DVR (iDS-7108HQHI-M1/T – H.265 + Deep Learning)

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Facial Detection

• Facial Detection and Capture : Face picture detection, face picture search

Video and Audio

• IP Video Input

  2-ch (up to 10-ch)

  Enhanced IP mode on:

  4-ch (up to 12-ch), each up to 4 Mbps

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

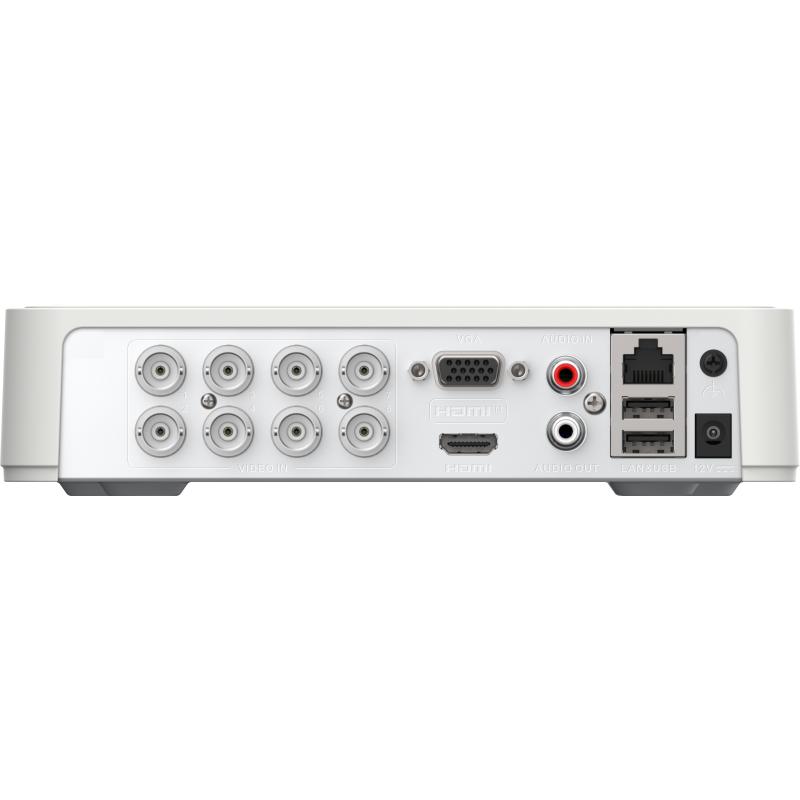

• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Inpu : t3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 2K(2304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input : 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input : 3K(2880 × 1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS Input : PAL/NTSC
• HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA simultaneous output
• Audio Input : 1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback : 8-ch

Recording

• Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  2K/3K lite/5 MP lite/4 MP lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  2K/3K lite/5 MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 3 MP stream access: 3 MP@10fps;1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 2K stream access: 2K@10fps;1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;3 MP/2K@10fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate : 32 Kbps to 6 Mbps
• Dual-stream : Support
• Stream Type : Video, Video & Audio
• Audio Compression : G.711u
• Audio Bitrate : 64 Kbps

Network

• Total Bandwidth : 96 Mbps
• Remote Connection : 64
• Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF,ISUP
• Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-Fi : Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• SATA : 1 SATA interface
• Capacity : Up to 10 TB capacity for each disk
• Alarm In/Out : N/A (optional to support)
• USB Interface : Real panel: 2 × USB 2.0

General

• Power Supply : 12 VDC, 1.5 A
• Consumption : ≤ 12 W (without HDD)
• Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
• ≤ 1 kg (without HDD, 2.2 lb.)
