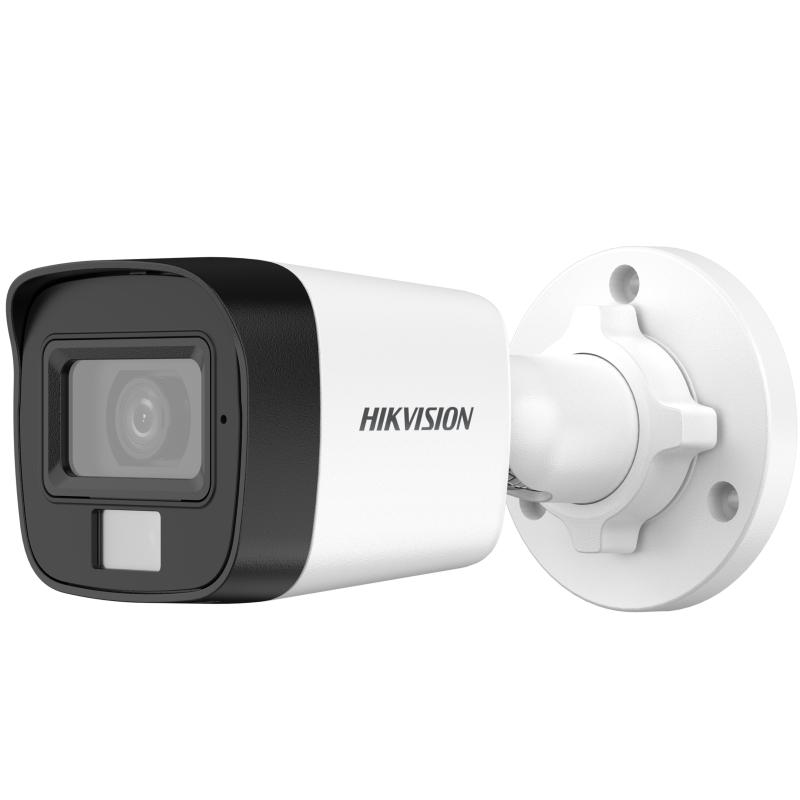

Hikvision 3K Color Hybrid Mini Bullet Camera DS-2CE16K0T-EXLPF (5MP/3K+20m IR+Color+WDR+IP67)

__________

The Hikvision 3K Color Hybrid Mini Bullet Camera DS-2CE16K0T-EXLPF (3K+20m IR+Color+WDR+IP67) is a reliable fixed camera designed for clear and colorful surveillance in all lighting conditions.

With 3K high-resolution imaging (2960 × 1665), it delivers sharp video quality. The Smart Hybrid Light technology combines IR and white light, offering clear footage in both low-light and complete darkness, with a range of up to 20 meters.

The camera supports one port for four switchable signals (TVI/AHD/CVI/CVBS), making it compatible with various DVR systems. Built with IP67 weatherproof protection, it ensures stable operation in outdoor environments.

Key Features:

• 3K Smart Hybrid Light Mini Bullet Camera

• High quality 2960 × 1665 resolution

• Up to 20m IR & 20m white light distance

• Smart Hybrid Light for flexible night vision

• 2.8 mm & 3.6 mm fixed lens options

• One port for 4 switchable signals (TVI/AHD/CVI/CVBS)

• Water & dust resistant (IP67) for outdoor durability

___________________________________________________________________________
Camera

• Image Sensor : 3K CMOS
• Max. Resolution : 2960 (H) × 1665 (V)
• Min. Illumination : 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
• Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & Night : ICR
• Angle Adjustment : Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360°
• Signal System : PAL/NTSC

Lens

• Lens Type : 2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 101°, vertical FOV: 64°, diagonal FOV: 125°

  3.6 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 98°

• Lens Mount : M12

Illuminator

• Supplement Light Type : White Light;IR
• Supplement Light Range

  IR : Up to 20 m

  White Light : Up to 20 m


• Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
• Image Settings : Brightness, Sharpness, Smart IR
• Frame Rate

  TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps

  AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps

  CVI: 4 MP @25 fps/30 fps

  CVBS: PAL/NTSC

• Wide Dynamic Range (WDR) : Digital WDR
• Image Enhancement : DWDR/BLC/HLC/HLS/Global
• White Balance : Auto/Manual
• AGC : Yes

Interface

• Video Output : Switchable TVI/AHD/CVI/CVBS

General

• Material : Plastic
• Dimension : Ø 70 mm × 138.8 mm (Ø2.76″ x 5.46″)
• Weight : Max. 150 g (0.33 lb.)
• Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
• Communication : HIKVISION-C
• Language : English
• Power Supply

  12 VDC ± 25%, Max. 4.4 W

  *You are recommended to use one power adapter to supply the power for one camera.

Approval

• Protection : IP67
