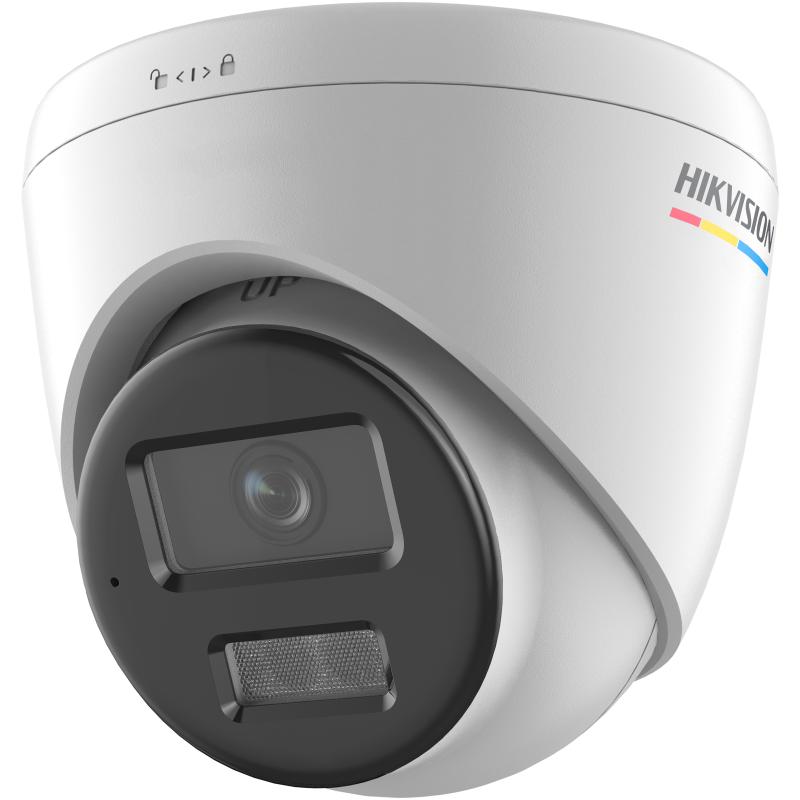

Hikvision DS-2CD1367G3-LIUF/SL 6 MP ColorVu 3.0 Smart Hybrid Light Turret IP Camera (HikAI-ISP + Live Two-Way Audio & Strobe Alarm + Motion 3.0 + 512GB SD Slot + 120dB WDR + 30m White Light & IR + IP67 Weatherproof)

🔑 Core Highlights

• High Resolution (6 MP / 3K): Delivers 3200 × 1800 clarity powered by an ultra-sensitive 1/2.4″ Progressive Scan CMOS sensor.

• ColorVu Ultra Low Light Performance: Exceptional 0.0005 Lux low-light sensitivity with an ultra-large F1.0 aperture for vivid, full-color recording.

• Smart Dual-Light Night Vision: Equipped with IR and White Light illuminators up to 30 meters.

• Active Deterrence Lighting & Audio (SL Feature): Features a built-in speaker (up to 101 dB SPL) and a flashing white light warning system for immediate threat deterrence.

• Local MicroSD Storage (F Feature): Integrated memory card slot supporting up to 512 GB MicroSD/SDHC/SDXC cards for standalone or failover recording.

• Human & Vehicle Classification: Precision motion detection filtering out non-critical motion triggers to reduce false alarms.

• 120 dB True WDR: Ensures balanced exposure under bright backlighting and harsh dynamic ranges.

📷 Camera & Lens Specs

Sensor & Optics

• Model SKU: DS-2CD1367G3-LIUF/SL

• Image Sensor: 1/2.4″ Progressive Scan CMOS

• Max. Resolution: 3200 × 1800 (6 MP / 16:9 ratio)

• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON) | 0 Lux with Light

• Shutter Speed: 1 s to 1/100,000 s

• Lens Mount: M12 (Fixed Iris, Ultra-Large F1.0 Aperture)

• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens Options & Field of View (FOV)

• 2.8 mm Fixed Lens: Horizontal FOV: 109°, Vertical FOV: 60°, Diagonal FOV: 130° (Depth of Field: 1.9 m to ∞)

• 4.0 mm Fixed Lens: Horizontal FOV: 89°, Vertical FOV: 49°, Diagonal FOV: 105° (Depth of Field: 2.4 m to ∞)

DORI Distance

• 2.8 mm: Detect: 68 m | Observe: 27 m | Recognize: 13 m | Identify: 6 m

• 4.0 mm: Detect: 83 m | Observe: 33 m | Recognize: 16 m | Identify: 8 m

💡 Night Vision & Active Deterrence

• Supplement Light Type: IR & White Light (Smart Supplement Light)

• Supplement Light Range: Up to 30 m (850 nm IR wavelength)

• Active Deterrence Flashing Light: White Light Flashing Strobe

• Active Deterrence Audio Speaker: Built-in speaker (Max. 2 W power consumption | Max. Sound Pressure Level: 101 dB at 10 cm)

📹 Video & Audio Parameters

• Video Compression: Main Stream: H.265+, H.265, H.264+, H.264 | Sub-Stream: H.265, H.264, MJPEG

• Frame Rate: 20 fps @ 50 Hz/60 Hz (3200 × 1800, 2688 × 1520, 1080p, 720p)

• Video Bitrate: 32 Kbps to 16 Mbps (CBR/VBR, SVC Encoding)

• Dynamic Range: 120 dB True WDR | SNR ≥ 52 dB

• Image Processing: BLC, HLC, 3D DNR, Rotate Mode, 4 programmable polygon privacy masks

• Audio Hardware: Built-in Microphone & Built-in Speaker (Environmental Noise Filtering)

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC

🌐 Network, Storage & Interfaces

• On-Board Local Storage: Built-in card slot supporting MicroSD / MicroSDHC / MicroSDXC up to 512 GB

• Hardware Reset Key: Yes (Physical reset button included on housing)

• Ethernet Port: 1 × RJ45 10M/100M self-adaptive Ethernet port

• Protocols Supported: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP

• API Integration: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK

• Client Software: iVMS-4200, Hik-Connect

• Supported Web Browsers: Chrome 57.0+, Firefox 52.0+, Edge 89+ (IE 10/11 with plugin)

📐 General, Power & Physical Specs

• Power Supply:

  • 12 VDC ± 25% (0.57 A, Max. 6.84 W via 5.5 mm coaxial plug)

  • PoE: IEEE 802.3af, Class 3 (Max. 8.3 W)

• Housing Material: Metal & Plastic Hybrid Casing

• Ingress Protection: IP67 Weatherproof

• Dimensions: Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″)

• Unit Weight: Approx. 425 g (0.9 lb) | Package Weight: Approx. 615 g (1.4 lb)

• Operating Conditions: -30°C to 60°C (-22°F to 140°F) | Humidity 95% or less (non-condensing)

• Certifications: CE-EMC, CB, CE-RoHS, WEEE, REACH
