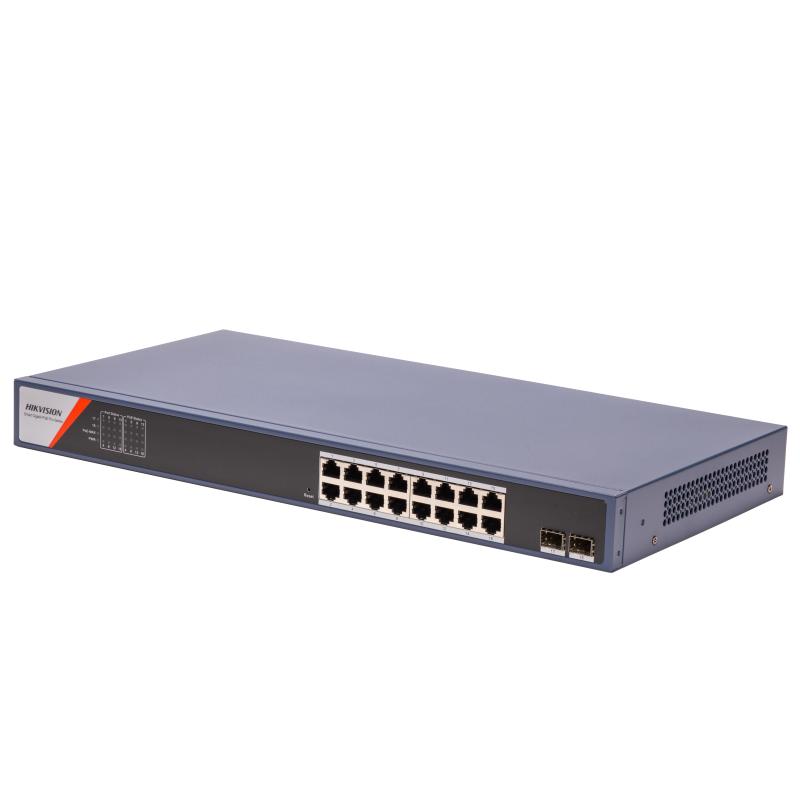

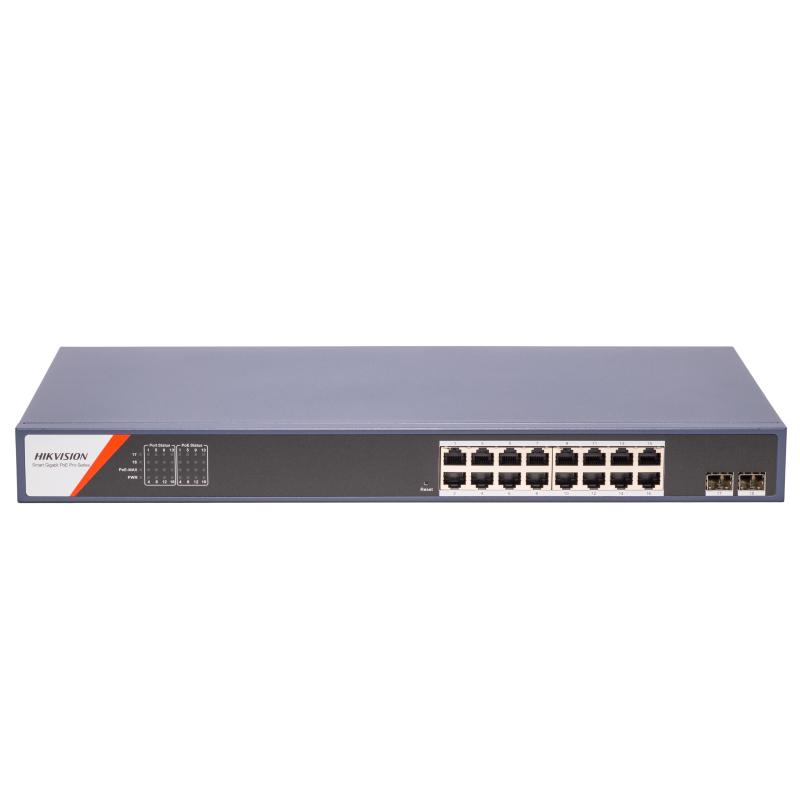

DS-3E1518P-SI-16P2F 16-Port Gigabit Smart Managed PoE Switch with 2 Dedicated Gigabit SFP Fiber Slots (230W Total PoE Budget+300m Long Range Mode+PoE Watchdog+User-Configurable Energy Saving Plans)

Overview – High-Density Smart Power for Advanced Corporate Security Networks

The Hikvision DS-3E1518P-SI-16P2F Smart Managed Switch serves as a specialized, middle-tier data distribution engine built to support growing commercial network infrastructures and multi-camera security systems. Standard unmanaged hardware often drops critical video packets or experiences frame stuttering during peak local business hours. Therefore, this smart industrial switch delivers a massive non-blocking switching fabric. Consequently, it easily ensures fluid, ultra-clear high-definition camera streaming without latency.

This versatile corporate hardware solution comes equipped with 16 full Gigabit PoE ports and 2 dedicated Gigabit SFP optical fiber slots. Specifically, having two independent SFP bays allows network technicians to bridge secure data pipelines over extreme physical distances to core network racks without electromagnetic interference. Additionally, its durable 1U steel housing is ready for immediate deployment on desktop configurations or inside secure network server racks.

Moreover, system configuration and ongoing port maintenance require zero complicated specialized background training. System managers can quickly review active port traffic using standard desktop web browsers or remote cloud dashboard monitoring via Hik-Partner Pro. For instance, the switch shows dynamic visual topology maps and supports automated STP/RSTP/ERPS Loop Prevention. Furthermore, its customizable green energy layout helps commercial sites minimize unnecessary operational energy consumption.

⚙️ Key Features – Hikvision DS-3E1518P-SI-16P2F Smart Switch

• 16 Full Gigabit PoE Ports: Provides fast data networking speeds combined with continuous electrical power across sixteen high-resolution security channels.

• Dual Dedicated SFP Uplinks: Incorporates 2 independent SFP optical fiber ports to connect long-distance backbone network trunks.

• 230W Shared PoE Budget: Manages a large pool of shared electrical energy safely across all connected edge hardware devices.

• Custom Green Power Modes: Supports custom energy saving schedules to systematically lower electricity overhead during unpopulated off-peak periods.

• Intelligent PoE Watchdog: Monitors connected network terminals around the clock and automatically restarts frozen or unresponsive field hardware.

• 6KV Industrial Surge Defense: Features high-level interior grounding armor to safeguard delicate computer processors from external lighting strikes.

📊 Key Specifications – Hikvision DS-3E1518P-SI-16P2F Smart Switch

• Product Type: 16-Port Gigabit Smart Managed PoE Switch with 2 Dedicated SFP Fiber Uplinks

• Brand: Hikvision

• Model Number: DS-3E1518P-SI-16P2F

• Total Interfaces: 16 × Gigabit PoE Ports, 2 × Gigabit Fiber SFP Open Bays

• Switching Fabric Capacity: Fast 36 Gbps internal hardware processing bandwidth

• Packet Forwarding Rate: Robust 26.78 Mpps wire-speed routing performance

• MAC Address Table Size: 8K capacity for standard localized network expansion

• Internal Data Buffer Cache: 4.1 Mbits packet cache memory for stutter-free security recording

Electrical, Software & Physical Profile

• PoE Standard Compliance: Fully matches standard IEEE 802.3af and IEEE 802.3at power delivery rules

• Total PoE Power Allocation: 230W shared budget (Supplies up to 30 Watts maximum per individual hardware port)

• PoE Power Pin Assignment: 4-pin End-span mapping layout using pins 1/2(-), and 3/6(+)

• Virtual LAN Support (VLAN): IEEE 802.1Q VLAN tagging supporting up to 4094 active IDs for distinct department isolation

• Link Aggregation Capacity: Supports static link aggregation setups to balance upstream bandwidth loads

• Data Traffic Optimization: Advanced QoS with port-based priority mapping, plus SP and WRR schedule tracking

• Network Loop Prevention: Multi-protocol 802.1D STP, 802.1w RSTP, and G.8032 ERPS loop defenses with storm control

• System Security Matrix: Smart DHCP Snooping, ARP anti-spoofing protection, and up to 64 Access Control List entries

• Hardware Access Control: Integrated IPSG network safety supporting port, MAC, and IP binding security locks

• Integrated Diagnostics Suite: Advanced cable open/short failure detection, port mirroring analysis, and 802.1ab LLDP discovery

• Network IP Configuration: Default dynamic DHCP Client with fixed Super IP address for rapid initial hardware discovery

• Power Input Requirements: Universal internal power supply supporting 100-240 VAC, 50/60 Hz

• System Energy Draw: 250W maximum power pull under full camera loads

• Official Safety Certifications: CE-EMC, IC, RCM, CB, CE-LVD, CE-RoHS, WEEE, and REACH

⭐ Why Choose the Hikvision DS-3E1518P-SI-16P2F Smart Switch?

Selecting this smart managed 16-port switch is a highly practical choice for properties expanding their connected equipment layouts. First, the user-configurable energy saving modes allow managers to schedule active power limitations. As a result, you save money on electricity bills while keeping the core business operational during primary working hours.

In addition, the integrated advanced cable detection diagnostic suite minimizes your physical maintenance expenses. For example, if an outdoor line gets clipped by accident, the switch instantly pinpoints the open-circuit location. Furthermore, the one-click cloud integration through Hik-Partner Pro allows your IT teams to check active bandwidth levels and manage system alarms directly from a smartphone.

Consequently, this smart switch removes the setup headaches found in traditional enterprise-managed systems. It matches massive power overhead with user-friendly cloud monitoring tools. Thus, your security streams stay perfectly stable, your installation costs drop significantly, and your commercial premises run smoothly and securely without requiring continuous manual maintenance.
