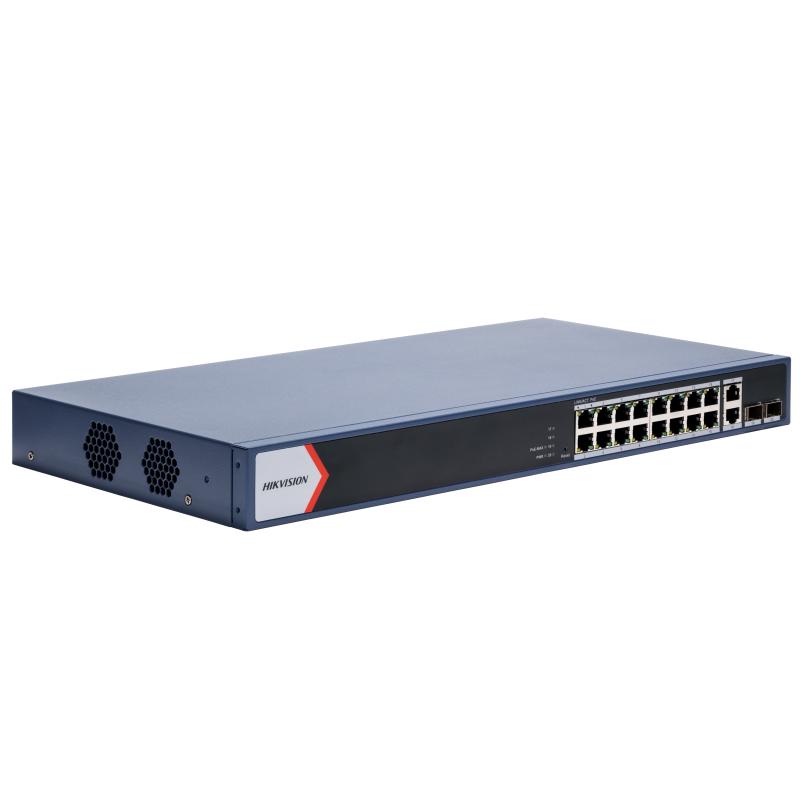

DS-3E1520P-EI/M 16-Port Gigabit Smart Managed PoE Switch with 2 Gigabit RJ45 Ports and 2 Gigabit Fiber SFP Ports (125W PoE Budget+300m Long Range Mode+PoE Watchdog+Hik-Partner Pro Integration)

Overview – Smart High-Capacity Networking for Enterprise Surveillance

The Hikvision DS-3E1520P-EI/M Smart Switch provides an exceptionally powerful, intelligent foundation for high-density commercial security networks. Frequently, handling multiple high-resolution IP cameras simultaneously can saturate standard desktop network switches. Therefore, this advanced rackmount switch delivers an impressive 68 Gbps total switching capacity. Consequently, your security control room receives fluid, uninterrupted video feeds from all connected security devices.

This high-performance unit features 16 Gigabit PoE ports, 2 Gigabit RJ45 uplink ports, and 2 Gigabit Fiber Optical ports. Specifically, the dual fiber connections allow long-distance, interference-free backbone links to your core server rooms. Thus, data routes across large physical complexes smoothly without bottlenecking. Additionally, the standard 19-inch metal casing includes mounting ears for quick, secure rack installation.

Moreover, managing your growing corporate network layout is incredibly simple via intuitive web interfaces or smartphone apps. For instance, the Hik-Partner Pro platform allows you to view your complete network topology instantly. Furthermore, you can monitor individual port power utilization and reboot frozen devices safely from any remote location. Finally, built-in loops and security tools keep your data traffic running safely.

⚙️ Key Features – Hikvision DS-3E1520P-EI/M Smart Switch

• 16 Gigabit PoE Ports: Connects and powers up to sixteen separate high-definition network cameras simultaneously over standard cables.

• Dual Fiber Uplinks: Features two dedicated Gigabit optical ports for lightning-fast, long-distance server backbone connections.

• 125W Shared PoE Budget: Allocates ample electrical power safely across all channels with up to 30W on individual ports.

• Intelligent PoE Watchdog: Monitors camera responses automatically and performs clean hardware power reboots on frozen devices.

• 300m Long-Range Mode: Extends data and power delivery up to 300 meters for expansive boundary camera coverage.

• Advanced DHCP Snooping: Prevents unauthorized network server connections effectively to maintain ironclad internal data security.

📊 Key Specifications – Hikvision DS-3E1520P-EI/M Smart Switch

• Product Type: 16-Port Gigabit Smart Managed PoE Switch with 2 RJ45 & 2 Fiber Uplinks

• Brand: Hikvision

• Model Number: DS-3E1520P-EI/M

• Universal Product Identifier (UPC / GTIN): 6941267399878

• Total Interfaces: 16 × 1 Gigabit PoE, 2 × 1 Gigabit RJ45 Uplinks, 2 × 1 Gigabit Fiber SFP Ports

• Switching Fabric Capacity: Enterprise-grade 68 Gbps total processing bandwidth

• Packet Forwarding Speed: Fast 50.59 Mpps data routing performance

• MAC Address Registry Space: High-capacity 16K entries for large corporate networks

• Internal Data Cache: Large 8.4 Mbits packet buffer memory

Electrical, Software & Physical Profile

• PoE Standard Compliance: Fully compatible with IEEE 802.3af and IEEE 802.3at protocols

• Total Shared PoE Budget: 125 Watts (Up to 30 Watts maximum output per individual port)

• PoE Pin Wiring: End-span distribution via pins 1/2(-) and 3/6(+)

• Virtual LAN Support (VLAN): 802.1Q VLAN supporting up to 1024 active VLAN setups (Up to 32 active groups simultaneously)

• Advanced Data Traffic Control: Quality of Service (QoS) with port-based priority and SP/WRR scheduling

• System Diagnostics: Real-time Digital Diagnostic Monitoring (DDM) for optical fiber heat, voltage, and transmission power

• Loop Prevention Tools: Built-in 802.1D STP and 802.1w RSTP prevention protocols

• Power Input Requirements: Internal universal power supply supporting 100-240 VAC, 50/60 Hz (Max 2.5A)

• Energy Consumption Metrics: 150W maximum power load (Only 20W draw during idle standby)

• Physical Structure & Weight: Standard 1U rackmount chassis measuring 440.0 mm × 44.0 mm × 220.8 mm; Net weight is 3.1 kg

⭐ Why Choose the Hikvision DS-3E1520P-EI/M Smart Switch?

Choosing this smart managed 16-port PoE switch is a brilliant investment for securing large commercial properties. First, the visualized topology management feature diagrams your entire network structure mapping out devices automatically. As a result, finding a disconnected cable or camera takes seconds instead of hours. This ensures your service teams can handle troubleshooting jobs efficiently.

In addition, the integrated 6KV surge protection engineering acts as a robust shield against unpredictable environmental hazards. For example, it stops heavy outdoor electrical spikes from traveling down lines into your expensive server racks. Furthermore, the smart port isolation protocols protect sensitive company data. Therefore, public areas cannot access private office channels under any circumstances.

Consequently, this rack-ready smart switch delivers premium enterprise network management tools at an incredibly accessible price point. It balances heavy-duty power output, real-time fiber diagnostic tools, and automated system healing functions flawlessly. Thus, your infrastructure remains totally secure, camera maintenance costs drop significantly, and your digital business operations run smoothly around the clock.
