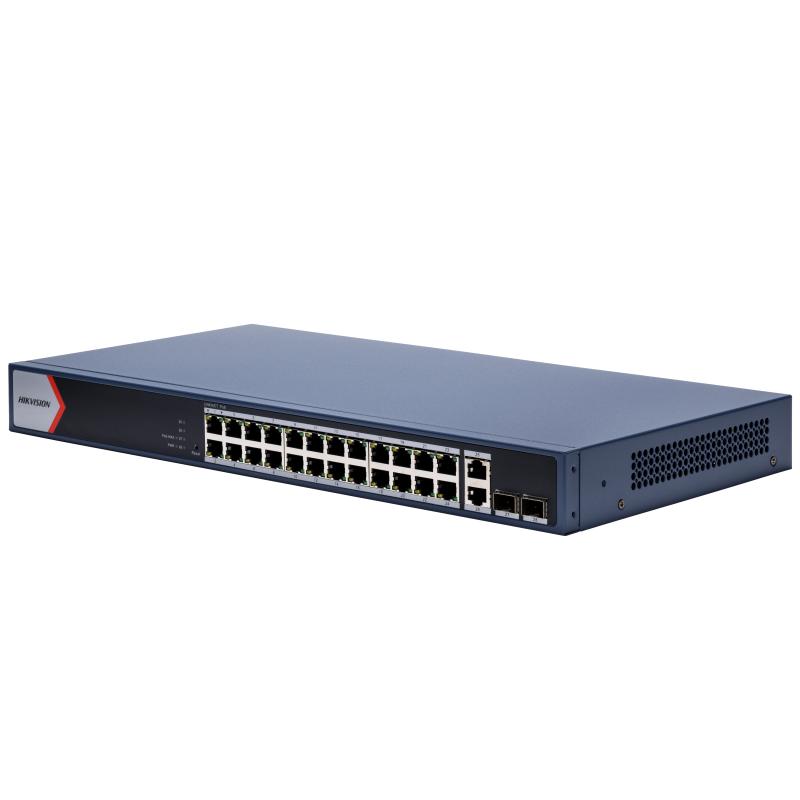

DS-3E1528P-EI/M 24-Port Gigabit Smart Managed PoE Switch with 2 Gigabit RJ45 Ports and 2 Gigabit Fiber SFP Ports (230W PoE Budget+300m Long Range Mode+PoE Watchdog+Hik-Partner Pro Integration)

Overview – Smart High-Capacity Networking for Enterprise Surveillance

The Hikvision DS-3E1528P-EI/M Smart Switch delivers a high-capacity, enterprise-grade backbone designed specifically for large-scale IP surveillance networks. Frequently, running multiple high-resolution security cameras over standard desktop switches leads to severe data dropouts and lagging video feeds. Therefore, this smart switch features an elite 68 Gbps total switching fabric. Consequently, it easily handles massive raw data streams from large camera deployments without bottlenecking.

This professional rackmount unit integrates 24 Gigabit PoE ports, 2 Gigabit RJ45 uplinks, and 2 Gigabit Fiber SFP ports. Specifically, the dual fiber optical uplinks enable ultra-fast, interference-free backbone connections over long physical distances. Thus, your security operations center stays perfectly connected to distant server rooms or outlying facility buildings. Additionally, its robust 1U metal chassis includes mounting ears for easy rack installation.

Moreover, managing your commercial camera infrastructure is remarkably simple through smartphone apps or local web browsers. For instance, the Hik-Partner Pro integration gives network administrators a complete visual layout of all connected equipment. Furthermore, you can monitor live power consumption and safely perform remote hardware reboots from anywhere. Finally, advanced loop prevention tools keep your daily data traffic running flawlessly.

⚙️ Key Features – Hikvision DS-3E1528P-EI/M Smart Switch

• 24 Gigabit PoE Ports: Supplies high-speed data connectivity and stable electrical power to twenty-four network devices simultaneously.

• Dual Fiber SFP Uplinks: Provides lightning-fast, long-distance optical fiber connections to secure your core server backbones.

• High 230W PoE Budget: Allocates an expansive pool of shared electrical power safely across all connected security channels.

• Intelligent PoE Watchdog: Monitors connected cameras automatically and safely hard-reboots frozen devices without manual on-site help.

• 300m Long-Range Extension: Extends data and power transmission up to 300 meters to reach distant perimeter gates.

• Advanced DHCP Snooping: Blocks unauthorized network connections effectively to maintain ironclad internal digital security for businesses.

📊 Key Specifications – Hikvision DS-3E1528P-EI/M Smart Switch

• Product Type: 24-Port Gigabit Smart Managed PoE Switch with 2 RJ45 and 2 Fiber Uplinks

• Brand: Hikvision

• Model Number: DS-3E1528P-EI/M

• Universal Product Identifier: 6941267399885

• Total Ports: 24 × 1 Gigabit PoE, 2 × 1 Gigabit RJ45 Uplinks, 2 × 1 Gigabit Fiber SFP Ports

• Switching Fabric Capacity: Heavy-duty 68 Gbps internal processing bandwidth

• Packet Forwarding Rate: Ultra-fast 50.59 Mpps data routing performance

• MAC Address Table Size: Large 16K capacity for extensive enterprise network devices

• Internal Data Buffer Cache: High-density 8.4 Mbits packet memory

Electrical, Software & Physical Profile

• PoE Standard Compliance: Fully compatible with IEEE 802.3af and IEEE 802.3at protocols

• PoE Power Budget: 230 Watts total shared pool (Up to 30 Watts maximum per individual port)

• PoE Pin Out Configuration: End-span distribution utilizing pins 1/2(-) and 3/6(+)

• Virtual LAN Support (VLAN): 802.1Q VLAN supporting up to 1024 active VLAN IDs from 1 to 4094

• Port Isolation Management: Safe isolation mode supporting ports 1 to 28 to block internal data spying

• Link Aggregation Capacity: Supports 8 static link aggregation groups for high-speed trunking load balance

• Data Traffic Optimization: Quality of Service (QoS) with port-based priority and SP/WRR scheduling

• Loop Prevention Engineering: Integrated 802.1D STP and 802.1w RSTP network safety guards

• System Diagnostics Suite: Built-in cable status detection, port mirroring, LLDP peer discovery, and optical module DDM

• Network IP Configuration: Default dynamic DHCP Client with fixed Super IP address (10.180.190.200) for rapid direct access

• Power Input Requirements: Universal internal power supply supporting 100-240 VAC, 50/60 Hz (Maximum 4.0A)

• Energy Consumption Metrics: 250W maximum power draw (Only 20W drainage during empty standby idle)

• Environmental Tolerances: Operating temperature from 0 °C to 45 °C; Relative humidity 5% to 95% non-condensing

• Physical Framework Dimensions: Standard 1U 19-inch steel chassis measuring 440.0 mm × 44.0 mm × 220.8 mm

• Hardware Weight Profiles: Net weight is 3.3 kg; Total shipping gross weight is 2.6 kg

• Official Safety Certifications: CE-EMC, CE-LVD, UL 60950-1, CB, CE-RoHS, WEEE, and REACH

⭐ Why Choose the Hikvision DS-3E1528P-EI/M Smart Switch?

Choosing this smart managed 24-port PoE switch is a highly cost-effective decision for securing extensive commercial properties. First, the visualized topology management feature instantly draws out your entire network structure mapping devices automatically. As a result, diagnosing a loose camera cable takes seconds instead of hours of searching. This ensures your technical support teams work with peak efficiency.

In addition, the integrated 6KV surge protection engineering acts as a tough shield against hostile environmental factors. For example, it stops sudden outdoor lightning spikes from traveling along copper wires into your expensive indoor server racks. Furthermore, the automated PoE Watchdog system fixes camera issues automatically. Therefore, your security system stays fully functional without constant manual resets.

Consequently, this rackmount smart switch bridges the gap between basic networking hardware and overly expensive corporate options. It offers plenty of PoE headroom, professional fiber diagnostic tools, and cloud accessibility at an accessible price point. Thus, your infrastructure remains totally safe, system maintenance expenses drop significantly, and your digital business assets run securely around the clock.
