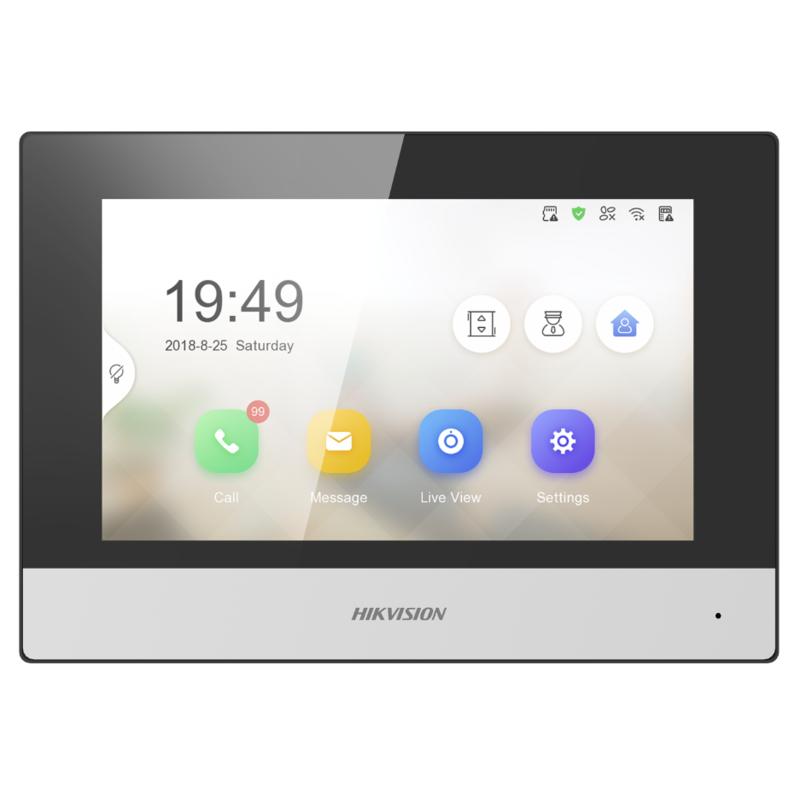

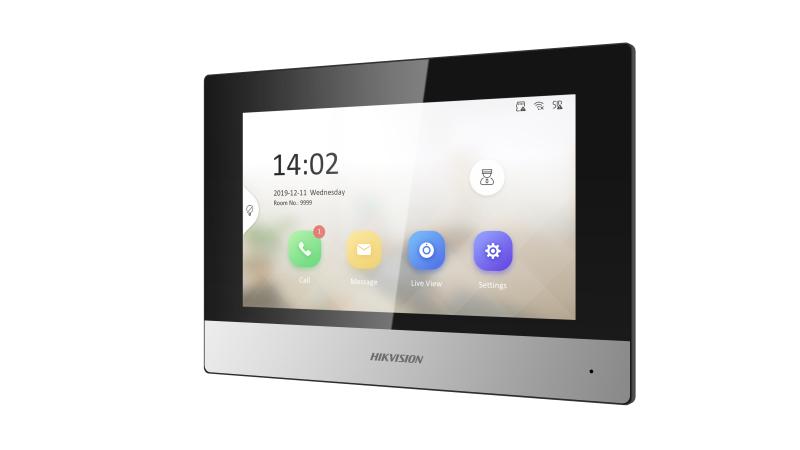

Hikvision DS-KH6320-WTE1 7-Inch IP Indoor Station Display Monitor with Wi-Fi (TFT Touch Screen, Hik-Connect App Integration, Standard PoE, 8-Channel Alarm Inputs & MicroSD Slot)

⚡ Overview – Hikvision DS-KH6320-WTE1 7-Inch Wi-Fi IP Indoor Station

Are you looking for a sleek, high-performance touch screen monitor to control your IP video intercom system and view security cameras directly from inside your home or office?

Consequently, the Hikvision DS-KH6320-WTE1 KH6 Series IP Indoor Station provides a centralized control hub featuring a vibrant 7-inch colorful TFT touch display. With built-in Wi-Fi and Hik-Connect mobile app integration, this indoor monitor allows you to answer door calls, speak with visitors, view live camera feeds, and unlock gates remotely from anywhere.

Furthermore, you can order the original Hikvision DS-KH6320-WTE1 Indoor Station online in Sri Lanka with fast islandwide delivery.

⚡ 7-Inch Capacitive Touch Screen & One-Touch System Setup

First, manage your home security and door communications effortlessly through a responsive multi-touch interface.

In addition, featuring a 1024 × 600 resolution capacitive display, the monitor offers clear visual playback of live video from connected villa door stations and external IP CCTV cameras.

As a result, the intuitive wizard interface lets you configure your entire intercom network and door stations directly on the screen without needing a PC.

🏢 Hik-Connect Mobile App Control & Remote Intercom

Additionally, stay connected to your doorway even when you are away from home or busy at work.

Specifically, the system seamlessly pairs with the Hik-Connect app, sending instant door call notifications directly to your smartphone.

Consequently, you can view live video, engage in two-way voice conversations with clear noise suppression, and release door locks remotely with a simple tap on your phone.

🔋 Smart Alarm Integration, TF Card Storage & Standard PoE

Furthermore, the DS-KH6320-WTE1 doubles as a home security panel.

In addition, it features 8 hardwired alarm inputs and 2 relay outputs to link door sensors, PIR detectors, or panic buttons, sending immediate notifications upon trigger. It also supports TF/MicroSD cards up to 128GB to store captured visitor snapshots and voice messages when calls go unanswered.

Finally, power the unit easily using Standard IEEE802.3af PoE via a single Ethernet cable or a 12 VDC supply, supported by flexible 2.4 GHz Wi-Fi network connectivity.

⚙️ Key Features of Hikvision DS-KH6320-WTE1

• 7-Inch Touch Display: High-resolution 1024 × 600 colorful TFT capacitive screen for intuitive operation and clear video playback.

• Hik-Connect App Support: Receive call notifications, speak to visitors, and unlock doors remotely on your smartphone.

• Wi-Fi & Standard PoE: Built-in 2.4 GHz Wi-Fi (802.11b/g/n) and standard IEEE802.3af PoE for flexible deployment.

• PC-Free Wizard Setup: Easily configure the entire intercom system and add door stations directly on the screen.

• Live Camera View: Supports live video viewing from up to 17 door stations and 16 external network CCTV cameras.

• 8-Channel Alarm Inputs: Integrated 8 hardwired alarm zones and 2 relay outputs for home security linkage.

• MicroSD Card Expansion: Supports TF cards up to 128GB to record voice messages, alarm records, and captured pictures.

• Crystal-Clear Audio: Built-in microphone and speaker with hardware noise suppression and echo cancellation.

📊 Key Specifications

• Brand: Hikvision

• Model Code: DS-KH6320-WTE1

• Product Series: KH6 Series IP-Based Indoor Station

• Operating System: Embedded Linux OS (128MB RAM / 32MB ROM)

• Display: 7-Inch Colorful TFT Capacitive Touch Screen (1024 × 600 Resolution)

• Audio Input/Output: Built-in Omnidirectional Microphone & Speaker

• Audio Quality: Noise Suppression & Echo Cancellation (G.711 U/A, G.722.1)

• Storage Expansion: TF/MicroSD Card Slot (Up to 128GB Supported)

• System Capacities: 17 Linked Door Stations, 16 Network Cameras, 16 Extension Monitors

• Wireless Network: Wi-Fi 802.11 b/g/n (2.4 GHz)

• Wired Network: 1x RJ45 10/100 Mbps Self-Adaptive Ethernet

• Protocols: TCP/IP, SIP, RTSP

• Device Interfaces: 8x Alarm Inputs, 2x Relay Outputs, 1x RS-485 (Half Duplex)

• Power Supply: Standard IEEE802.3af PoE or 12 VDC

• Power Consumption: ≤ 5 W

• Operating Temperature: -10°C to 50°C (14°F to 122°F)

• Dimensions & Weight: 200 mm × 140 mm × 15.1 mm | 355g Net Weight

• Mounting Type: Surface Wall Mounting

🤖 Recommended Usage Guidelines

First, surface-mount the indoor station on a wall inside your living room, hallway, or office at comfortable viewing height.

Next, power the monitor using a standard IEEE802.3af PoE network cable connected to your PoE switch, or use a 12 VDC power adapter and pair via Wi-Fi.

After that, follow the on-screen configuration wizard to search and link your outdoor villa door stations and IP cameras across the local network.

Finally, download the Hik-Connect app on your smartphone, scan the QR code displayed on the monitor screen, and complete mobile pairing for remote call answering and door release.

Therefore, order your Hikvision DS-KH6320-WTE1 7-Inch Indoor Station today on elecshop.lk for fast islandwide delivery across Sri Lanka!
