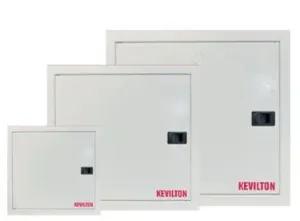

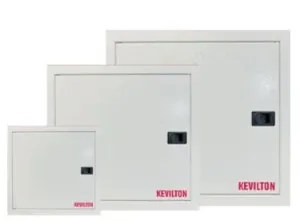

Kevilton 36 Way 3 Row Metal Enclosure (350mm W x 500mm H x 110mm D + 0.7mm Electro-Galvanized Steel + RAL 9003 Brilliant White Matte Finish)

🪩 Join our official updates group to get the latest product releases and exclusive dealer prices in Sri Lanka! Click here to join: elecshop.lk Join Chat

🌐 01. Product Title

Kevilton 36 Way 3 Row Metal Enclosure (350mm W x 500mm H x 110mm D + 0.7mm Electro-Galvanized Steel + RAL 9003 Brilliant White Matte Finish)

📦 02. Overview (Product Long Description)

⚡ Overview – Kevilton 36 Way 3 Row Metal Distribution Board Enclosure

Are you looking for a robust, high-capacity distribution board enclosure for comprehensive electrical wiring in residential, commercial, or industrial buildings?

Consequently, the Kevilton 36 Way 3 Row Metal Enclosure provides exceptional protection and organization for main circuit breakers, RCCBs, and MCBs. Precision-engineered from high-quality electro-galvanized steel, this 36-module enclosure ensures strict adherence to modern Sri Lankan power distribution standards.

Furthermore, you can order this genuine Kevilton 3 Row Metal Consumer Unit online on elecshop.lk with fast islandwide delivery across Sri Lanka.

⚡ Durable Electro-Galvanized Steel Construction

First, superior structural integrity is essential for safe, long-lasting electrical distribution panels.

In addition, the enclosure is manufactured using 0.7mm thick electro-galvanized steel featuring a protective powder-coated textured matt finish. Applied at a coating thickness exceeding 80 microns in RAL 9003 Brilliant White, it offers high resistance against corrosion, scratching, and physical impact.

As a result, your electrical breakers stay housed in a fire-resistant, highly durable structure designed for demanding operating environments.

🏢 Versatile Surface & Sunk Mount Options

Additionally, customize your installation layout according to building requirements.

Specifically, this enclosure functions as both a surface-mounted and sunk (flush) mounted distribution board. It includes pre-stamped cable cut-outs to cleanly accommodate incoming electrical conduits and trunking lines.

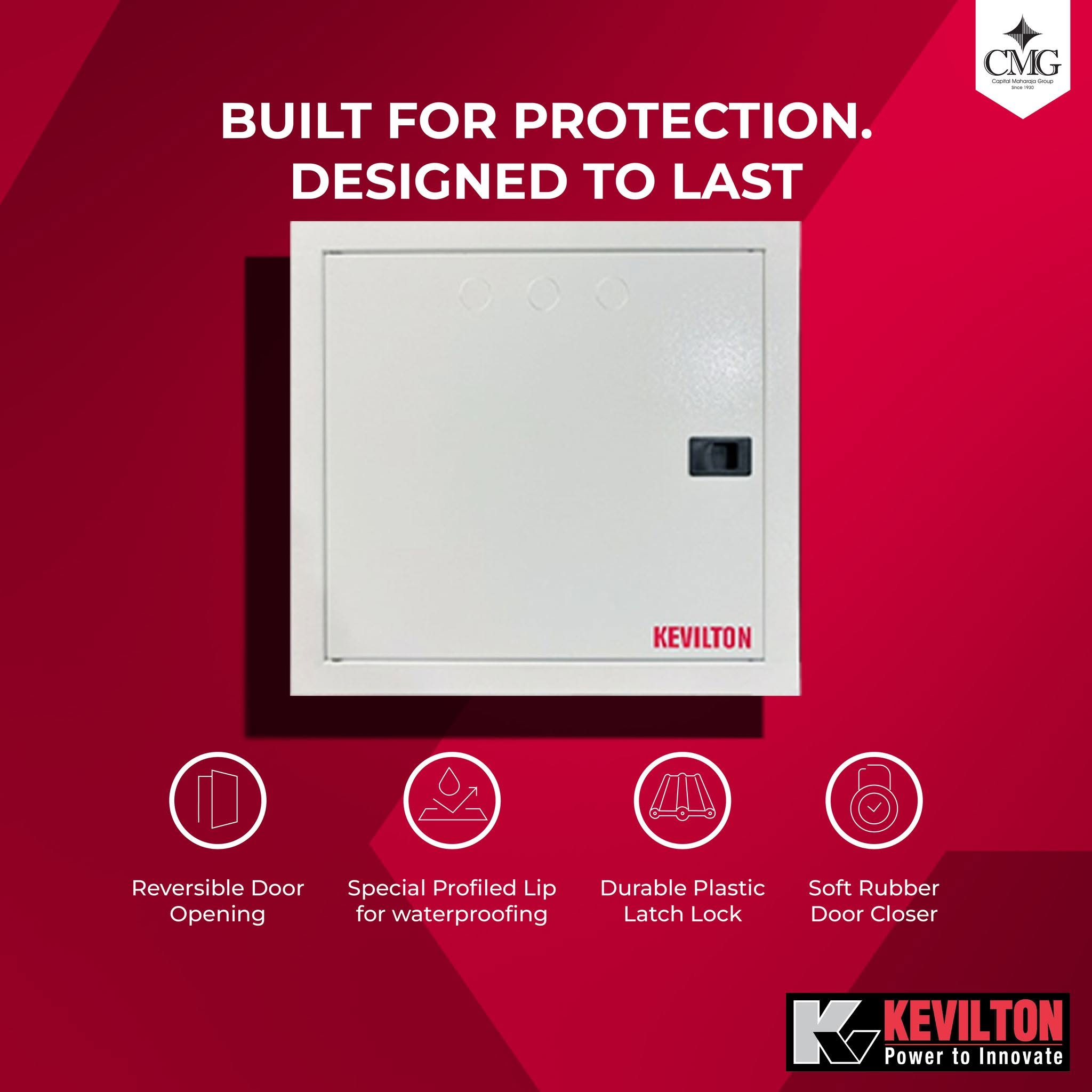

Furthermore, the door comes equipped with a durable plastic latch lock, a soft rubber damper for quiet door closure, and a reversible hinge design that allows changing the door opening side.

🔋 Spacious 36 Way 3 Row Capacity

Furthermore, the physical dimensions of 350mm (W) x 500mm (H) x 110mm (D) provide ample room for organized wiring.

In addition, structured DIN rail layouts across 3 rows easily fit up to 36 standard pole modules, leaving plenty of space for clean wire routing and heat dissipation.

Finally, Kevilton manufactures these enclosures to exact specifications, making them a preferred choice among electrical engineers, contractors, and builders in Sri Lanka.

⚙️ Key Features of Kevilton 36 Way Metal Enclosure

• 36 Way Modular Capacity: 3-row layout offers organized spacing for up to 36 single-pole circuit protection modules.

• Electro-Galvanized Steel: Built with 0.7mm thick steel for superior mechanical strength and longevity.

• RAL 9003 Brilliant White Finish: Powder-coated textured matt finish (>80 microns thickness) provides exceptional corrosion resistance.

• Dual Mounting Capability: Designed for both surface and sunk (flush) mounting applications.

• Reversible Door Hinges: Flexible door orientation allows changing the opening direction as required.

• Noise-Free Operation: Integrated soft rubber dampers ensure quiet opening and closing.

• Conduit Cut-Outs: Built-in entry points simplify connection with electrical conduits and trunking.

📊 Key Specifications

• Brand: Kevilton

• Product Type: Metal Enclosure / Consumer Unit / Distribution Board

• Capacity: 36 Way / 3 Row

• Dimensions: 350mm (W) x 500mm (H) x 110mm (D)

• Material: Electro-Galvanized Steel

• Material Thickness: 0.7 mm

• Surface Finish: Powder-Coated Textured / Matt Finish

• Color: RAL 9003 – Brilliant White

• Coating Thickness: > 80 Microns

• Mounting Options: Surface and Sunk (Flush) Mountable

• Features: Reversible Latch Door, Rubber Dampers, Cable Entry Cut-Outs

🤖 Recommended Usage Guidelines

First, select between surface or flush mounting based on wall structure and conduit entry paths.

Next, mount the back box securely before running main incoming and branch circuit wiring through the knockouts.

After that, install standard DIN rail MCBs, RCCBs, and isolators onto the 3 internal rows.

Finally, connect neutral and earth bars cleanly before attaching the front cover and adjusting the door opening direction if required.

Therefore, order your Kevilton 36 Way 3 Row Metal Enclosure today on elecshop.lk for fast islandwide delivery across Sri Lanka!
