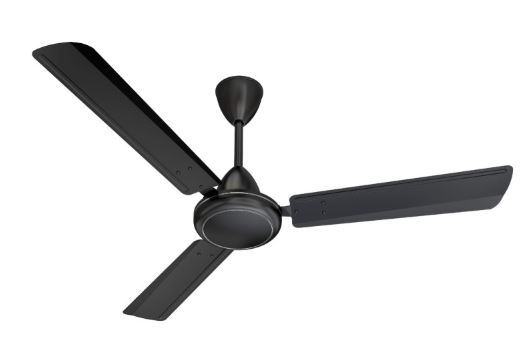

Kevilton Ceiling Fan
Description of Kevilton Ceiling Fan
- Robust motor for optimum air even at low voltage.
High conditioner motor.
Specially crafted aerodynamic blades for superior air delivery.
Provided safety accessories such as safety switch, safety cables and male-female connecting sockets.
Excellent and long lasting paint finishing
Stainless aluminum blades.
Double ball bearing.
The blades of the fan are made of high-quality aluminum.
Rs.16,000.00
Specifications of Kevilton Ceiling Fan
• FAN BLADE SWEEP – 1400mm
• TYPE OF MOTOR – CAPACITOR START & INDUCTION RUN MOTOR, 16 POLE
• STATOR HEIGHT – 13 mm
• CAPACITOR – 2.25 mfd 440 V AC
• WINDING MATERIAL – SUPER ENAMELLED COPPER WIRE
• CLASS OF INSULATION – “B”
• RATED VOLTAGE – 220-240 V, SINGLE PHASE A.C
• TEST VOLTAGE – 230 V
• RATED FREQUENCY – 50 Hz
• RATED POWER – 75 W (±10%)
• RATED CURRENT – 0.33 A
• RATED SPEED – 290 RPM (±10%)
• POWER FACTOR – 0.90 min
• TEMPERATURE RISE – 75° C MAX.
• LOW VOLTAGE STARTING – 195 V (MAX.)
• INSULATION RESISTANCE – MORE THAN 2 MEGA Ω
• LEAKAGE CURRENT – 210 MICRO AMP.MAX
• FLASH TEST – 1500 VOLT /1 Sec.
• CAPACITOR CLAMP – FR grade (glow wire test approved)
• SAFETY SWITCH – 16 A 125 V AC/ 10 A 250 V AC
• MALE – FEMALE CONNECTOR – FR grade (glow wire test approved)
• SAFETY CABLE – MS 1.6 mm Dia
| Weight | 6.00 kg |
|---|---|
| Ceiling Fan - Black | 16000.00 |
| Ceiling Fan - White | 16000.00 |
| Ceiling Fan - Ivory | 16000.00 |

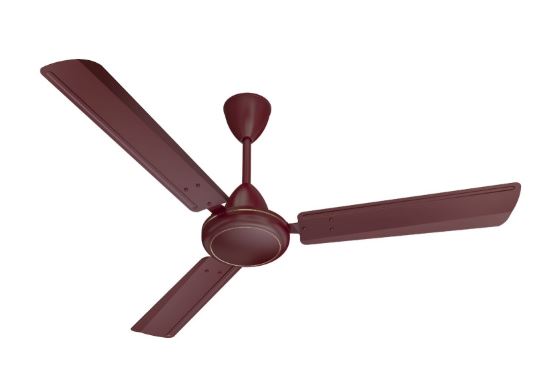

| Ceiling Fan - Brown | 16000.00 |
| Wattage | Black, White, Ivory, Brown |
