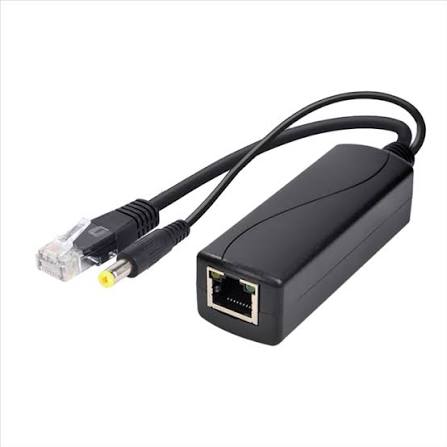

PoE Splitter Adapter 10/100 Mbps Active ( PD-3201 – IEEE 802.3af Compliant Power Over Ethernet Splitter, 12V DC Output for Non-PoE IP Cameras, Access Points & Routers)

⚡ Overview – PD-3201 10/100 Mbps PoE Splitter

Are you running a PoE switch or PoE injector network setup, but need to connect a non-PoE device like a standard IP camera, Wi-Fi router, or smart home hub without running a separate power cord?

Consequently, the PD-3201 10/100 Mbps Active PoE Splitter Adapter provides an efficient, plug-and-play solution. By separating incoming PoE signals into independent power and data streams, this adapter allows you to power standard non-PoE hardware directly through your existing Ethernet infrastructure.

Furthermore, you can order the original PD-3201 PoE Splitter online in Sri Lanka with fast islandwide delivery.

⚡ How It Works & When to Use

First, understand how this adapter adapts non-PoE equipment to modern PoE networks.

A PoE Splitter takes a single Ethernet cable carrying both data and high-voltage power (originating from a PoE Switch or PoE Injector) and splits them into two separate physical outputs at the device end.

As a result, you should use this when you have an active PoE network setup, but the endpoint device you want to connect—such as a non-PoE IP camera, standard wireless access point, or media player—lacks built-in PoE capability and requires separate data and DC power inputs.

🏢 Dual Output Interface: Data & Power Separated

Additionally, the PD-3201 features a clear, intuitive input/output configuration designed for hassle-free installation.

Specifically, the Input side accepts 1x RJ45 Ethernet Cable carrying combined Power + Data from your PoE switch or injector (IEEE 802.3af compliant).

Consequently, the Output side splits into 1x Standard RJ45 Ethernet Connector (Data only, 10/100 Mbps) plus 1x Standard DC Power Plug (delivering regulated 12V DC power directly into your device’s power jack).

🔋 Protective Design & Versatile Deployment

Furthermore, the PD-3201 is built with short-circuit, over-current, and over-voltage protection to ensure connected electronics remain safe from power surges.

In addition, its compact inline form factor fits easily inside waterproof junction boxes, ceiling mounts, or behind equipment desks.

Finally, it eliminates the requirement for nearby AC power outlets at your installation sites, drastically reducing cabling overhead and installation labor across Sri Lanka.

⚙️ Key Features of PD-3201 PoE Splitter

• PoE Signal Splitting: Separates combined PoE power and data into standard RJ45 data and DC power outputs.

• 10/100 Mbps Fast Ethernet: Maintains stable, high-speed data transmission rates for IP cameras and network equipment.

• IEEE 802.3af Standard Support: Fully compliant with standard active PoE switches and injectors.

• Plug-and-Play Setup: No software configuration, manual wiring, or soldering required.

• Built-In Safety Protection: Features over-voltage, short-circuit, and over-current protection for connected devices.

• Eliminates Extra AC Outlets: Powers non-PoE hardware over long network runs without needing electrical sockets nearby.

• Compact & Lightweight: Small footprint fits neatly into electrical enclosures and tight mounting boxes.

📊 Key Specifications

• Model Code: PD-3201

• Product Type: Active 10/100 Mbps PoE Splitter Adapter

• PoE Standard: IEEE 802.3af Compliant

• Data Rate: 10/100 Mbps Fast Ethernet (Auto-Negotiation)

• Input Interface: 1x RJ45 Female Port (Data + Power In, 44V–57V DC)

• Output Interfaces: 1x RJ45 Male Connector (Data Out) + 1x DC Power Plug (12V DC Out)

• DC Plug Size: Standard 5.5mm x 2.1mm DC Connector

• Housing Material: High-Impact ABS Plastic

• Safety Isolation: Internal Isolation Circuit Protection

• Applications: Non-PoE IP Security Cameras, Wi-Fi Access Points, Routers, VoIP Phones, Smart Home Hubs

🤖 Recommended Usage Guidelines

First, plug the main Ethernet cable coming from your PoE Switch or PoE Injector into the female “PoE In” RJ45 port on the PD-3201 splitter.

Next, plug the output RJ45 male connector of the splitter into the Ethernet port of your non-PoE device.

After that, insert the DC power plug from the splitter directly into the power jack of your non-PoE device.

Finally, verify that both the power LED indicator on your device and the network link light on your router/switch turn on.
