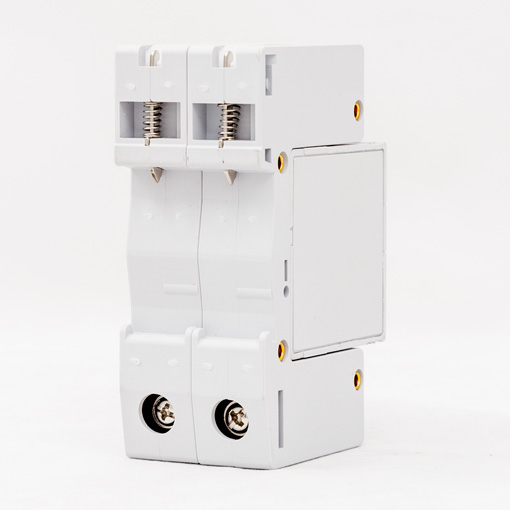

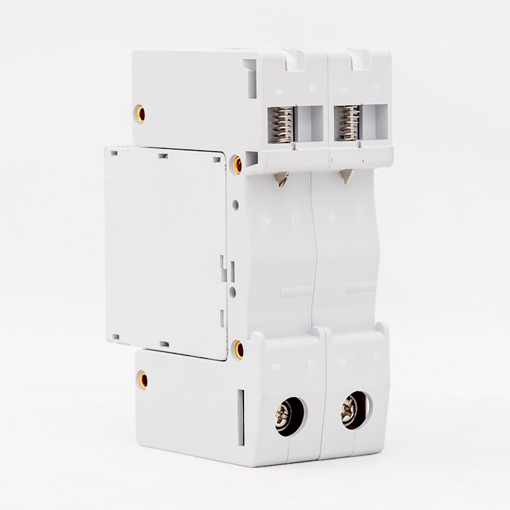

Kevilton 2 Pole Surge Protection Device SPD (230V+40kA Imax+Class II+≤25nS Response)

Overview – SPD in Sri Lanka

The Kevilton 2 Pole Surge Protection Device (SPD) in Sri Lanka is designed to protect electrical systems and connected equipment from lightning surges and sudden overvoltage spikes. It is an essential safety component for residential, commercial, and industrial electrical installations.

Moreover, this SPD operates at a rated voltage of 230V AC, making it suitable for standard power systems. In addition, it features an ultra-fast response time of ≤25 nanoseconds, ensuring immediate protection against transient surges.

Furthermore, the device supports a maximum discharge current of 40kA, providing strong surge handling capability. The Class II installation design makes it ideal for distribution boards and secondary protection systems.

Overall, this SPD offers reliable, fast, and efficient protection for electrical equipment in Sri Lanka.

⚙️ Key Features – SPD Sri Lanka

• Protects against lightning surges and voltage spikes
• 2 Pole (2P) design for single-phase systems
• Ultra-fast response time ≤25nS
• High discharge capacity up to 40kA
• Class II protection device
• Status indication window (Green/Red)

📊 Key Specifications – Kevilton SPD 2 Pole

• Product: Surge Protection Device (SPD)
• Brand: Kevilton
• Poles: 2 Pole (2P)
• Rated Voltage: 230V AC
• Max Continuous Voltage (Uc): 320V
• Response Time: ≤25nS
• Protection Level (Up): <1.5kV
• Nominal Discharge Current (In): 20kA (8/20µs)
• Maximum Discharge Current (Imax): 40kA (8/20µs)
• Installation Class: Class II
• Terminal Capacity: 25mm²
• Dimensions (L×W×H): 78 × 36 × 81 mm
• Indicator:
  • Green – Normal operation
  • Red – Replace immediately
• Standard Compliance: IEC 61643
• Country of Manufacture: China
• Warranty: 6 months (base only)

⭐ Why Choose Kevilton SPD 2 Pole?

The Kevilton SPD 2 Pole in Sri Lanka is designed for fast and reliable electrical protection. Firstly, the ≤25nS response time ensures immediate reaction to voltage surges.

In addition, the 40kA surge capacity provides strong protection against lightning-induced spikes. Moreover, the status indicator window allows easy monitoring of device condition.

Furthermore, the Class II design makes it suitable for distribution boards in homes and buildings. Therefore, it is ideal for protecting sensitive electrical equipment and systems.
