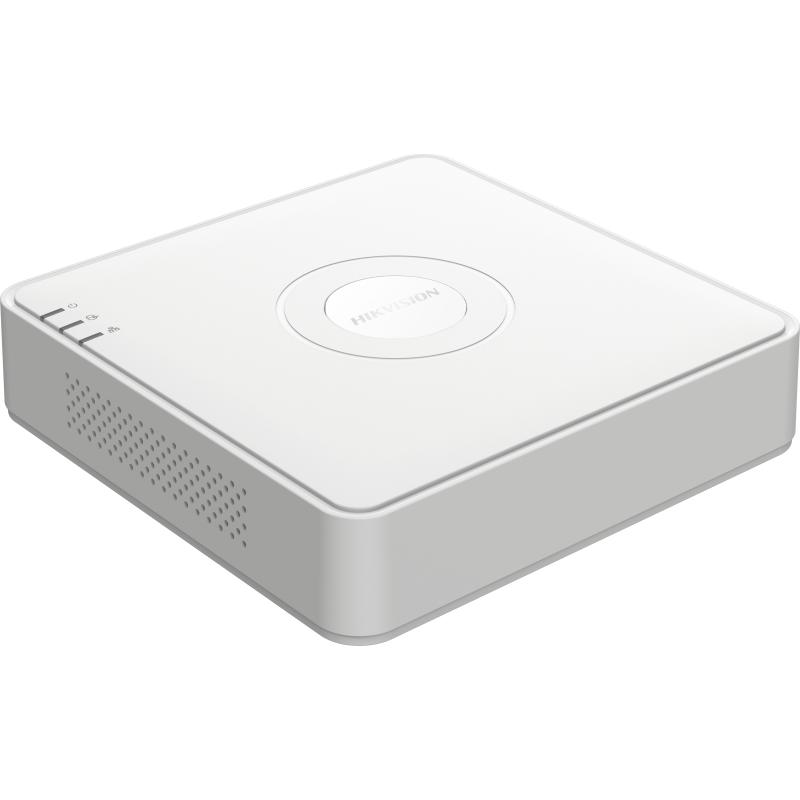

iDS-7104HQHI-M1/T 4-Channel 1080P Mini 1U H.265 AcuSense DVR with Deep Learning Motion Detection 2.0 (H.265 Pro+ Compression+Audio via Coaxial Cable+Up to 6-ch IP Input+Facial Detection)


Get the Hikvision 4 channel DVR Sri Lanka edition with fast islandwide delivery. This AcuSense 1080p Mini 1U recorder features deep learning Motion Detection 2.0 to stop false alarms. It also offers H.265 Pro+ compression, Face Detection, and clean audio-over-coax setup for clear security tracking.

  • Channels: 4 Analog BNC Channels + support for 6 IP Cameras (up to 6 MP).

  • Compression: High-efficiency H.265 Pro+ / H.265 Pro / H.265 / H.264.

  • Audio & Storage: Supports 4-ch audio over coax and 1 SATA HDD up to 10 TB.

  • Product Identifier (MPN): iDS-7104HQHI-M1/T



Rs.26,200.00 Rs.28,169.00

🔒 Overview – High-Capacity Smart Hybrid Surveillance for Intelligent Commercial Security

Are you looking for a dependable Hikvision 4 channel DVR Sri Lanka system? This advanced recorder is designed to protect your enterprise assets and optimize workforce accountability. Furthermore, it streamlines your entire surveillance setup. The Hikvision 4 channel DVR Sri Lanka model is housed in a professional Mini 1U chassis. Therefore, it saves space while offering heavy-duty hardware performance.

This highly adaptive unit effectively combines smart hardware with deep learning algorithms. Consequently, it easily addresses modern commercial challenges. It cuts down data management overhead and lowers infrastructure cabling costs. In addition, it completely eliminates high-frequency false alarms. Thus, this hybrid hub scales effortlessly to keep your property protected 24/7. We offer fast islandwide delivery for all buyers.

⚙️ Key Features of Hikvision 4 Channel DVR Sri Lanka

  • AI Human & Vehicle Detection: Motion Detection 2.0 uses deep learning technology. Therefore, it focuses strictly on human or vehicle targets. It reliably filters out up to 90% of false alarms caused by leaves, lights, or animals.

  • 75% Storage Savings: Advanced H.265 Pro+ compression slashes file sizes and network bandwidth usage. Because of this, it reduces storage costs by up to 75% without sacrificing image clarity.

  • Audio Over Coaxial Cable: This unit transmits synchronized video and crisp audio across all channels. Additionally, it uses a single standard BNC camera cable. As a result, it eliminates extra wiring costs entirely.

  • 5-in-1 Universal Input: The recorder automatically recognizes HDTVI, AHD, CVI, CVBS, and IP signals simultaneously. Consequently, you can expand your setup easily over time.

  • Flexible IP Expansion: You can scale up your security layout to a 6-channel setup. For instance, you can easily add high-resolution IP network cameras up to 6 MP.

📊 Key Specifications

  • Video Analytics: Deep learning-based Motion Detection 2.0, Facial Detection, and perimeter protection on analog channels.

  • Video Inputs: 4-ch BNC interfaces plus support for up to 6-ch IP camera inputs (up to 6 MP).

  • Recording Streams: Supports premium encoding up to 3K/5M Lite at 12 fps and standard 1080p at 15 fps.

  • Output Interfaces: Features simultaneous HDMI and VGA outputs up to 1920 × 1080 resolution.

  • Audio Setup: Supports 4-ch audio via coaxial cable and 1-ch physical RCA input/output lines.

  • Network Throughput: Includes 1× RJ45 Ethernet port with a high 72 Mbps total bandwidth capacity.

  • Storage Interface: Features 1 internal SATA port that supports a heavy-duty hard drive up to 10 TB.

  • General Parameters: Runs on 12 VDC power supply with low power consumption under 8W.

Why Choose This Hikvision 4 Channel DVR Sri Lanka Hub?

This professional recorder stands out as the ultimate budget-friendly choice for modern security setups. First, it incorporates specialized H.265 Pro+ compression. This technology lowers your long-term storage overhead significantly. For example, it slashes network bandwidth and data footprint sizes by up to 75%. Thus, you can record for weeks on a single hard drive.

Second, the built-in Motion Detection 2.0 changes how you manage security alerts. It filters out background noise to focus exclusively on real human or vehicle movements. As a result, your team spends time reacting to genuine threats. They will not waste hours auditing false alarms triggered by bad weather.

Finally, the system eliminates expensive copper wiring bottlenecks. It runs both synchronized video and clean digital audio over your existing coaxial cables. When combined with universal 5-in-1 compatibility, it lets you maintain your current setup. However, it still gives you the freedom to scale up over time.

The system is fully integrated into the secure Hik-Connect platform. Hence, it bridges professional tracking with seamless remote monitoring. You can enjoy full control from anywhere in Sri Lanka, with fast islandwide delivery to your doorstep.

SKU: IDS-7104HQHI-M1/T Category:
Weight 2 kg

Facial Detection

  • Facial Detection and Capture : Face picture detection, face picture search

Motion Detection 2.0

  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

    Quick search by object or event type is supported;

Video and Audio

  • IP Video Input

    1-ch (up to 5-ch)

    Enhanced IP mode on:

    2-ch (up to 6-ch), each up to 4 Mbps

    Up to 6 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    4-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDTVI Input : 3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 2K(2304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • AHD Input : 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • HDCVI Input : 3K(2880 × 1620)@25/20 fps, 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • CVBS Input : Support
  • HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output Mode : HDMI/VGA simultaneous output
  • Audio Input : 1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
  • Audio Output : 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback : 4-ch

Recording

  • Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    When 1080p Lite mode is not enabled:

    2K/3K lite/5 MP lite/4 MP lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF;

    When 1080p Lite mode is enabled:

    2K/3K lite/5 MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

  • Frame Rate

    Main stream:

    When 1080p Lite mode not enabled:

    For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

    For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

    For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

    For 3 MP stream access: 3 MP@10fps;1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

    For 2K stream access: 2K@10fps;1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

    For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    When 1080p Lite mode enabled:

    3K lite/5 MP lite@12fps;4 MP lite@15fps;3 MP/2K@10fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    Sub-stream:

    WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

  • Video Bitrate : 32 Kbps to 6 Mbps
  • Dual-stream : Support
  • Stream Type : Video, Video & Audio
  • Audio Compression : G.711u
  • Audio Bitrate : 64 Kbps

Network

  • Total Bandwidth : 72 Mbps
  • Remote Connection : 32
  • Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
  • Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Wi-Fi : Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

  • SATA : 1 SATA interface
  • Capacity : Up to 10 TB capacity for each disk
  • Alarm In/Out : N/A (optional to support)
  • USB Interface : Real panel: 2 × USB 2.0

General

  • Power Supply : 12 VDC, 1.5 A
  • Consumption : ≤ 8 W (without HDD)
  • Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity : 10% to 90%
  • Dimension (W × D × H) : 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
  • ≤ 1 kg (without HDD, 2.2 lb.)
