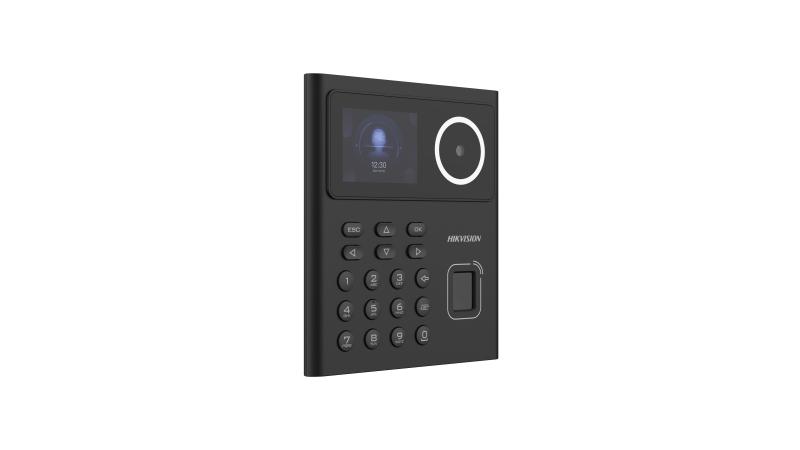

Hikvision DS-K1T320EFX Value Series Hybrid Face Recognition Access Control & Time Attendance Terminal (TCP/IP Wired Network + Deep Learning Biometrics + 125 kHz EM ID Card)

Overview – Deep Learning Face Recognition & Complete Gateway Management

The Hikvision DS-K1T320EFX Terminal provides touchless workplace entry and automated payroll tracking. Specifically, this terminal runs an advanced deep learning algorithm. Consequently, it completes a face scan match in less than 0.2 seconds. This high processing speed effectively eliminates long queues at your office entrance. Therefore, your staff can check in without any frustrating bottlenecks during peak hours.

The device features a clear 2.4-inch color LCD display. Additionally, it carries a 2 MP dual-lens optical camera. This camera configuration relies on auto-activating white light illumination. Meanwhile, the system deploys built-in face anti-spoofing technology. As a result, it accurately blocks fake entries using printed photos or phone screens. Thus, your office perimeter stays continuously protected against unauthorized visitors.

Furthermore, this versatile unit works as a true hybrid gateway system. Specifically, the Hikvision DS-K1T320EFX Terminal includes an integrated onboard lock control relay. This structural setup allows it to function as a single door access panel and time clock simultaneously. Consequently, you can secure physical doorways while gathering accurate attendance data. This unified approach lowers your total electronic hardware deployment costs.

System management is simple because of full web client configuration support. Specifically, you can manage settings using a standard desktop web browser on your network. Therefore, administrators do not need to install complex server programs. You can add workers, assign card permissions, and edit network profiles easily. Consequently, this browser interface makes system configuration fast and user-friendly.

Additionally, the terminal supports professional networking architectures. It communicates using standard network ISAPI and ISUP 5.0 protocols. Because of this, it links smoothly with central control applications. Specifically, you can connect it directly to iVMS-4200 software. Therefore, security managers can execute remote door release commands from any location.

Moreover, the Hikvision DS-K1T320EFX Terminal functions reliably during standalone operations. It caches records locally if your network link goes offline. After that, managers can download reports using a standard flash drive. The internal system automatically formats your data into standard Excel sheets. Consequently, your HR department can process payroll quickly without manual tracking logs.

⚙️ Key Features

• Rapid Facial Tracking: The Hikvision DS-K1T320EFX Terminal completes face validation matches in under 0.2 seconds.

• Four Authentication Layers: Supports secure biometric face matrices, optical fingerprint templates, EM ID proximity card swipes, and manual PIN codes.

• Integrated Lock Relay: Built-in connection terminals interface directly with standard 12V magnetic locks, door exit buttons, and sensors.

• Anti-Spoofing Algorithm: Smart dual-lens camera technology prevents unauthorized entries using printed photos or digital video playbacks.

• Browser-Based Management: Fully configures over a local web browser client without requiring dedicated PC software utility installations.

• Automated Excel Exports: Generates self-service reports directly to an external flash drive via a built-in USB 2.0 port.

📊 Key Specifications

• Product Class: Deep Learning Biometric Face, Fingerprint, and EM Card Access Control & Time Attendance Terminal

• Manufacturer Brand: Hikvision

• Model Designation: DS-K1T320EFX

• Official Product Identifier: GTIN: 6941264094197 / MPN: DS-K1T320EFX

• Operating System Platform: Secure, embedded Linux architectural firmware

• Display Screen Layout: 2.4-inch color LCD display screen featuring a 320 × 240 pixel resolution

• Camera Lens Array: 2 MP high-resolution dual-lens video module with white supplement light

• Camera Field of View: Horizontal field of view is 43°; vertical field of view is 25°

Memory, Network & Electrical Metrics

• System Storage Caps: Holds up to 500 faces, 1,000 fingerprints, 1,000 EM ID cards, and 100,000 logs

• Proximity Card Protocol: Built-in EM ID reader module operating at a standard 125 kHz frequency

• Card Reading Range: Responsive proximity detection distance spanning from 0 cm up to 3.5 cm

• Wired Interface Port: 1 × RJ-45, 10/100 Mbps self-adaptive Fast Ethernet TCP/IP network connection

• Onboard Access I/O Terminals: 1 × Lock Relay Output, 1 × Exit Button Input, 1 × Door Contact Input

• Removable Storage Slot: 1 × USB 2.0 port for physical report transfers and data backups

• Power Input Requirements: 12V DC power architecture drawing a maximum system load under 6W

• Physical Case Dimensions: 130 mm × 150 mm × 24.7 mm (5.12″ × 5.91″ × 0.97″)

• Operating Temperature Range: Built for stable operation between -10 °C and +55 °C

⭐ Why Choose the DS-K1T320EFX Terminal?

Choosing the Hikvision DS-K1T320EFX Terminal upgrades your office security and staff clocking workflows. The hands-free biometric reader eliminates common fingerprint errors caused by dust, moisture, or heavy physical labor. Therefore, workers experience smooth entries without any registration delays. Furthermore, the combined hybrid design removes the need to purchase separate attendance clocks and electronic door panels.

Additionally, browser-based management simplifies maintenance for your technical team. You can pull records or adjust schedules from any computer on your network. Meanwhile, the standalone USB storage buffer safeguards your data if your network disconnects. Consequently, this reliable hardware architecture prevents missing hours or tracking gaps during unforeseen power outages.

Ultimately, this terminal stops buddy-punching and entry tracking issues across your business. It balances high-performance AI imaging, an optical fingerprint reader, and lock controllers in one slim casing. Investing in this value-series device gives you premium enterprise security functions at a highly practical price point. Thus, you can maintain corporate accountability and protect company property effectively.
