Hikvision DS-KAS541 Complete Face Recognition Access Control Kit (DS-K1T341CMF Touchscreen Master Unit + 280kg Magnetic Lock + LZ Bracket + Exit Button + IP65 Weatherproof)

Overview – Deep Learning Face Recognition & Complete Gateway Management

The Hikvision DS-KAS541 Kit provides touchless workplace entry and automated payroll tracking. Specifically, this terminal runs an advanced deep learning algorithm. Consequently, it completes a face scan match in less than 0.2 seconds. This high processing speed effectively eliminates long queues at your office entrance. Therefore, your staff can check in without any frustrating bottlenecks during peak hours.

The master console features a clear 4.3-inch color LCD touch screen. Additionally, it carries a 2 MP dual-lens optical camera. This camera configuration relies on auto-activating white light illumination. Meanwhile, the system deploys built-in face anti-spoofing technology. As a result, it accurately blocks fake entries using printed photos or phone screens. Thus, your office perimeter stays continuously protected against unauthorized visitors.

Furthermore, this versatile unit works as a true hybrid gateway system. Specifically, the Hikvision DS-KAS541 Kit includes an integrated onboard lock control relay. This structural setup allows it to function as a single door access panel and time clock simultaneously. Consequently, you can secure physical doorways while gathering accurate attendance data. This unified approach lowers your total electronic hardware deployment costs.

System management is simple because of full network client configuration support. Specifically, you can manage settings using a standard desktop program or mobile service on your network. Therefore, administrators can configure complex employee permissions quickly. You can add workers, assign card profiles, and edit shifts easily. Consequently, this interface makes system configuration fast and user-friendly.

Additionally, the terminal supports professional networking architectures. It communicates using standard network ISAPI and ISUP 5.0 protocols. Because of this, it links smoothly with central control applications. Specifically, you can connect it directly to iVMS-4200 software or the Hik-Connect mobile client. Therefore, security managers can execute remote door release commands from any location.

Moreover, the Hikvision DS-KAS541 Kit functions reliably during standalone operations. It caches records locally if your network link goes offline. After that, managers can download reports using a standard flash drive. The internal system automatically formats your data into standard Excel sheets. Consequently, your HR department can process payroll quickly without manual tracking logs.

⚙️ Key Features

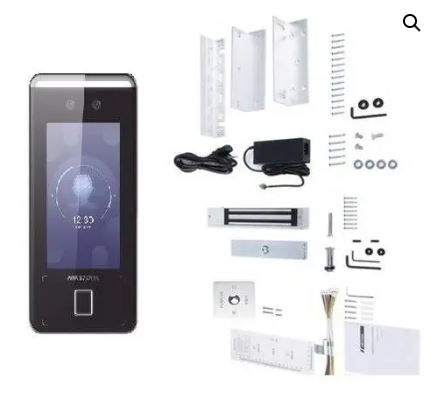

• Complete All-In-One Box: Out-of-the-box system kit packing a master biometric touchscreen console, an electromagnetic lock, matching framing brackets, and a manual release button.

• Rapid Facial Tracking: The master console completes face validation matches in under 0.2 seconds from a distance of up to 1.5 meters.

• Heavy Duty Door Holding: The bundled magnetic lock exerts up to 280 kg (617 lbs) of raw linear holding thrust to secure physical entrance perimeters.

• IP65 Weatherproof Terminal: Designed with a robust IP65-rated housing configuration built to survive extreme temperatures from -30 °C to 60 °C.

• Anti-Spoofing Algorithm: Smart dual-lens camera technology prevents unauthorized entries using printed photos or digital video playbacks.

• Five Authentication Layers: Supports secure biometric face matrices, optical fingerprint templates, 13.56 MHz MiFare smart cards, QR code scanning, and custom digital PINs.

📊 Key Specifications

• Product Class: Complete Single-Door Face Recognition Access Control and Time Attendance Security System Kit

• Manufacturer Brand: Hikvision

• Model Designation: DS-KAS541

• Official Product Identifier: MPN: DS-KAS541

• Operating System Platform: Secure, embedded Linux architectural firmware

• Display Screen Layout: 4.3-inch color LCD capacitive touch screen featuring a 480 × 800 pixel resolution

• Master Biometric Terminal: 1 × DS-K1T341CMF Face, Fingerprint & Smart Card Reader Console

• Electromagnetic Lock Asset: 1 × DS-K4H258S Single-Door Magnetic Lock delivering 280 kg linear thrust

• Mounting Bracket Asset: 1 × DS-K4H258-LZ Matching L and Z structural installation bracket profile

• Physical Exit Request Button: 1 × DS-K7P03 Stainless steel exit push-button panel with NO/NC/COM contacts

Memory, Network & Electrical Metrics

• System Storage Caps: Holds up to 1,500 faces, 1,500 fingerprints, 1,500 MiFare cards, and 150,000 event records

• Proximity Card Protocol: Onboard wireless reader module operating at a standard 13.56 MHz MiFare frequency

• Card Reading Range: Responsive proximity detection distance spanning from 0 cm up to 3.0 cm

• Wired Interface Port: 1 × RJ-45, 10/100/1000 Mbps self-adaptive Gigabit Ethernet TCP/IP connection

• Onboard Access I/O Terminals: 1 × Lock Relay, 1 × Exit Button Input, 1 × Door Contact Input, 1 × TAMPER switch, 1 × Alarm Interface

• Data Communications Bus: 1 × RS-485 interface, 1 × Wiegand port, and 1 × USB 2.0 interface

• Power Input Requirements: 12V DC, 2A power architecture framework

• Master Reader Dimensions: 172.5 mm × 83.2 mm × 22.7 mm (6.79″ × 3.27″ × 0.89″)

• Operating Temperature Range: Master terminal stable between -30 °C and +60 °C; Lock unit stable between -10 °C and +55 °C

⭐ Why Choose the DS-KAS541 Kit?

Choosing the Hikvision DS-KAS541 Kit upgrades your office security and staff clocking workflows. The hands-free biometric reader eliminates common fingerprint errors caused by dust, moisture, or heavy physical labor. Therefore, workers experience smooth entries without any registration delays. Furthermore, the combined hybrid design removes the need to purchase separate attendance clocks and electronic door panels.

Additionally, browser-based management simplifies maintenance for your technical team. You can pull records or adjust schedules from any computer on your network. Meanwhile, the standalone USB storage buffer safeguards your data if your network disconnects. Consequently, this reliable hardware architecture prevents missing hours or tracking gaps during unforeseen power outages.

Ultimately, this terminal stops buddy-punching and entry tracking issues across your business. It balances high-performance AI imaging, an optical fingerprint reader, and lock controllers in one slim casing. Investing in this value-series device gives you premium enterprise security functions at a highly practical price point. Thus, you can maintain corporate accountability and protect company property effectively.
