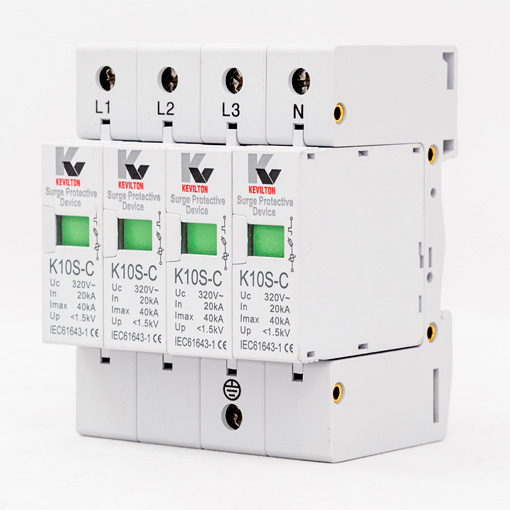

Kevilton 4 Pole Surge Protection Device SPD (230V+40kA Imax+Class II+≤25nS Response+4P Protection)

Overview – SPD in Sri Lanka

The Kevilton 4 Pole Surge Protection Device (SPD) in Sri Lanka is designed to protect three-phase electrical systems and connected equipment from lightning surges and sudden overvoltage spikes. It is widely used in commercial buildings, factories, and industrial distribution boards.

Moreover, it operates at a rated voltage of 230V AC, making it compatible with standard low-voltage systems. In addition, it features an ultra-fast response time of ≤25 nanoseconds, ensuring immediate protection during electrical surges.

Furthermore, the device supports a maximum discharge current of 40kA, providing strong protection against high-energy surges. The Class II installation design ensures safe and reliable integration into electrical distribution systems.

Overall, this is a high-performance surge protection solution for reliable electrical safety in Sri Lanka.

⚙️ Key Features – SPD Sri Lanka

• 4 Pole (4P) protection for three-phase systems
• Protects against lightning surges and voltage spikes
• Ultra-fast response time ≤25nS
• High surge capacity up to 40kA
• Class II installation protection
• Green/Red status indicator window

📊 Key Specifications – Kevilton 4 Pole SPD

• Product: Surge Protection Device (SPD)
• Brand: Kevilton
• Poles: 4 Pole (4P)
• Rated Voltage: 230V AC
• Max Continuous Voltage (Uc): 320V
• Response Time: ≤25nS
• Protection Level (Up): <1.5kV
• Nominal Discharge Current (In): 20kA (8/20µs)
• Maximum Discharge Current (Imax): 40kA (8/20µs)
• Installation Class: Class II
• Terminal Capacity: 25mm²
• Dimensions (L×W×H): 78 × 72 × 81 mm
• Indicator: Green (Normal), Red (Replace)
• Standard Compliance: IEC 61643
• Country of Manufacture: China
• Warranty: 6 months (base only)

⭐ Why Choose Kevilton 4 Pole SPD?

The Kevilton 4 Pole SPD in Sri Lanka is designed for industrial-grade electrical protection. Firstly, the ≤25nS response time ensures instant reaction to voltage surges.

In addition, the 40kA discharge capacity provides strong protection against lightning and switching surges. Moreover, the 4 pole design ensures full protection for three-phase systems.

Furthermore, the status indicator system allows easy monitoring of device condition. Therefore, it is ideal for commercial, industrial, and large electrical installations.
